Kohler Command Pro EFI ECH980

Specifi cations
6 62 690 13 Rev. AKohlerEngines.com

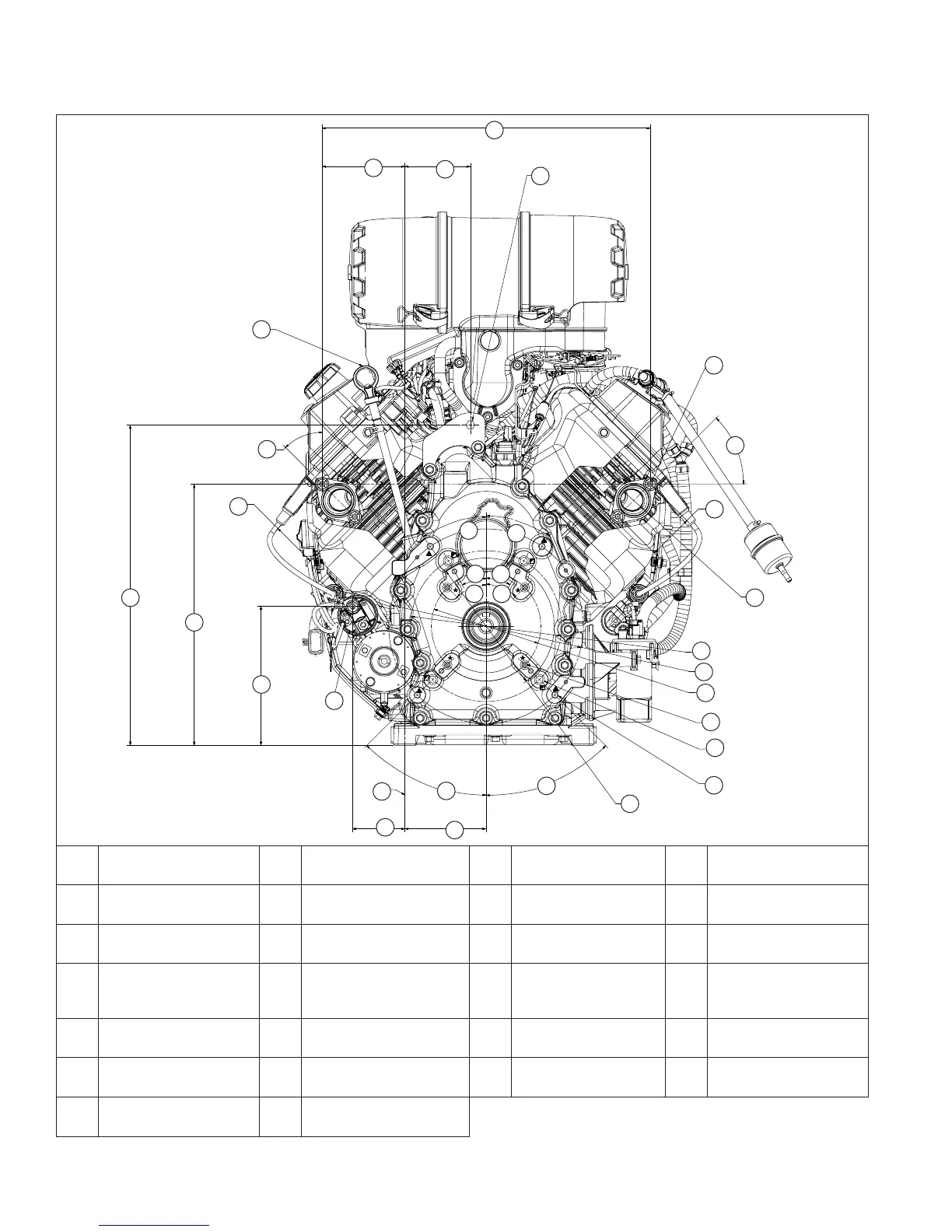

Engine Dimensions with Heavy-Duty Air Cleaner - PTO Side
A
B
C
D
E
F
F
Q
P
G
G
H
I
J
K
F
L
M
N
O
F
F F
H
S
T
U
V
W
X
Y
Z
R
A 428.2 mm (16.86 in.) B 107.9 mm (4.25 in.) C
85.47 mm (3.37 in.)
Lifting Point
D Lifting Point
E
M8 X 1.25 mm
4 Studs
F 45° G 35° H 30°
I
60.0 mm (2.36 in.)
Exhaust Port #2
J
2 X Ø 35.0 mm (1.38 in.)
Gasket
K
Ø 196.85 mm
(7.75 in.) B.C.
L
Ø 254.0 mm
(10.0 in.) B.C.
M
Ø 142.88 mm
(5.63 in.) B.C.
N
4 X 3/8-16 UNC-2B in.
21 mm (0.83 in.) Deep
O
4 X 7/16-14 UNC-2B in.
21 mm (0.83 in.) Deep
P
M8 X 1.25 mm-6H in.
25 mm (0.98 in.)
Deep
Q
Ø 177.8 mm
(7.00 in.) Pilot
R 106.0 mm (4.17 in.) S
68.5 mm (2.70 in.)
Starter Stud
T Mounting Hole "A"
U Solenoid Shift Starter V
181.9 mm (7.16 in.)
Starter Stud
W 340.9 mm (13.42 in.) X
418.2 mm (16.47 in.)
Lifting Point
Y
60.0 mm (2.36 in.)
Exhaust Port #1
Z
Oil Level
Dipstick
