Kohler Command Pro EFI ECH980

Specifi cations
762 690 13 Rev. A KohlerEngines.com

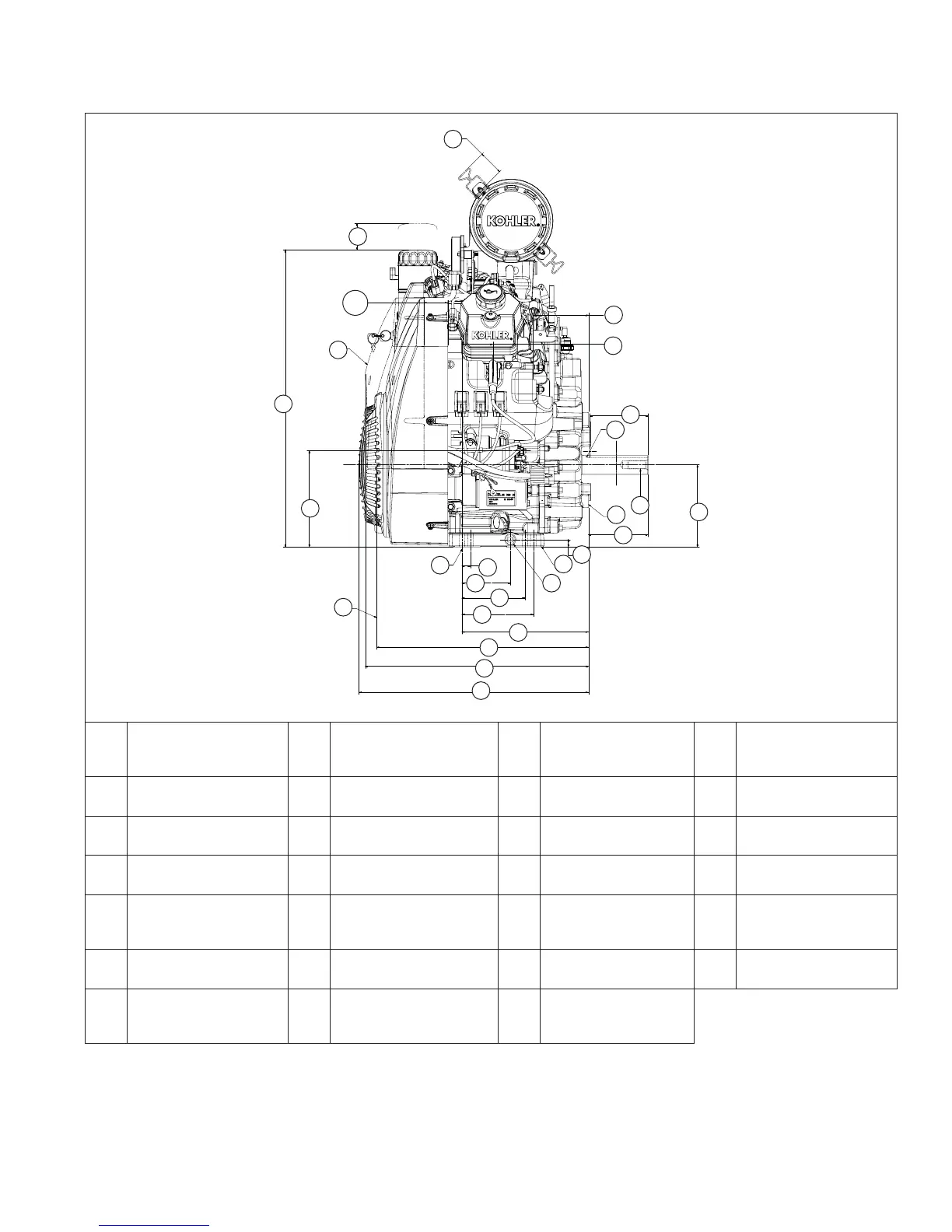

Engine Dimensions with Heavy-Duty Air Cleaner - Starter Side
AA
A
B
X
W
V
U
T
O
P
Q
R
S
N
M
L
J
G
K
I
H
F
E
D
C
Y
Z
A
4 X 47.3 mm (1.86 in.)
Air Cleaner Clip
Clearance
B
50.0 mm (1.97 in.)
Oil Filter Removal
C
105.4 mm (4.15 in.)
Exhaust Port #1
D
58.4 mm (2.30 in.)
Center Line Spark
Plug
E 110.7 mm (4.36 in.) F 12.7 mm (0.50 in.) G
5/8-18 UNF-2B in.
38.1 mm (1.5 in.) Deep
H
PTO Mounting
Surface
I 155.6 mm (6.13 in.) J 113.1 mm (4.45 in.) K 13.88 mm (0.55 in.) L
Engine Mounting
Surface
M
Oil Drain Plug
1/2 NPT Inch
N 16.0 mm (0.63 in.) O 91.5 mm (3.60 in.) P 119.0 mm (4.69 in.)
Q 135.0 mm (5.32 in.) R 239.6 mm (9.44 in.) S 401.5 mm (15.81 in.) T
422.8 mm (16.65 in.)
Cylinder #1 Shroud
Removal
U 435.1 mm (17.13 in.) V Mounting Hole "A" W Grass Screen X
181.9 mm (7.16 in.)
Starter Stud
Y 562.7 mm (22.16 in.) Z Cylinder #1 Shroud AA
45.0 mm (1.77 in.)
Cylinder #1 Shroud
Removal
