Kohler Command Pro EFI ECH980

Specifi cations
10 62 690 13 Rev. AKohlerEngines.com

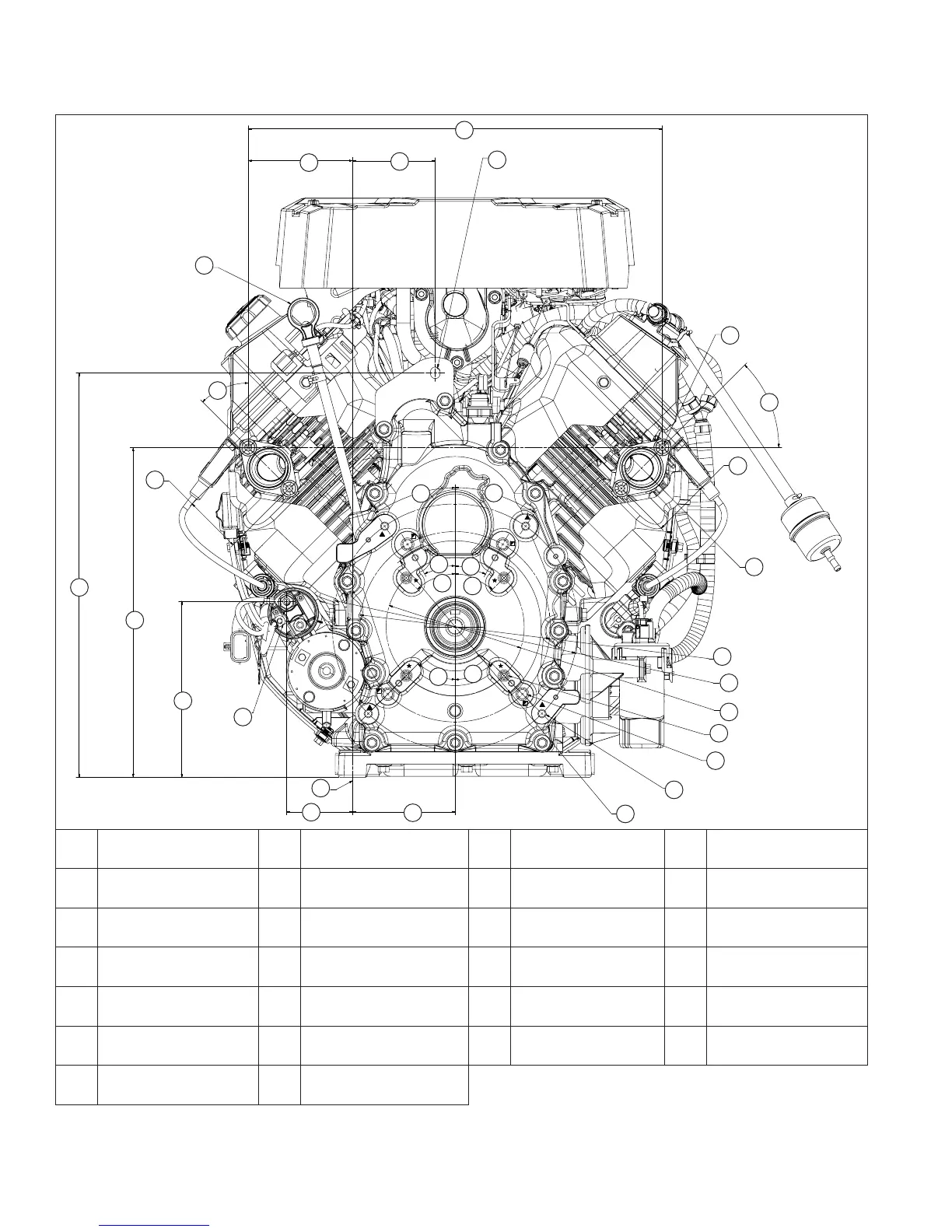

Engine Dimensions with Low-Profi le Air Cleaner - PTO Side
A
D
C
B
E
F
G
G
J
K
L
M
N
O
P
G
G
Q
R
S
T
U
V
W
G
G
I
I
H
H
X
Y
Z
A 428.2 mm (16.86 in.) B 107.9 mm (4.25 in.) C
85.5 mm (3.37 in.)
Lifting Point
D Lifting Point
E Oil Level Dipstick F
M8 X 1.25 mm 4
Studs
G 45° H 35°
I 30° J
60.0 mm (2.37 in.)
Exhaust Port #2
K
2 X Ø 35.0 mm (1.38 in.)
Gasket
L
Ø 196.85 mm
(7.75 in.) B.C.
M
Ø 254.0 mm
(10.0 in.) B.C.
N
Ø 142.9 mm
(5.63 in.) B.C.
O
4 X 3/8-16 UNC-2B in.
21 mm (0.83 in.) Deep
P
4 X 7/16-14 UNC-2B in.
21 mm (0.83 in.) Deep
Q
4 X M8 X 1.25 mm-6H in.
25 mm (0.98 in.) Deep
R
Ø 177.8 mm
(7.00 in.) Pilot
S 106.0 mm (4.17 in.) T
68.5 mm (2.70 in.)
Starter Stud
U Mounting Hole "A" V Solenoid Shift Starter W
181.9 mm (7.16 in.)
Starter Stud
X 340.9 mm (13.42 in.)
Y
418.2 mm (16.47 in.)
Lifting Point
Z
60.0 mm (2.36 in.)
Exhaust Port #1
