Disassembly/Inspection and Service
KohlerEngines.com 32 690 01 Rev. D
WARNING
Before working on engine or equipment, disable engine as
follows: 1) Disconnect spark plug lead(s). 2) Disconnect
negative (–) battery cable from battery.
Accidental Starts can cause severe injury or
death.
Disconnect and ground spark plug lead(s)
before servicing.

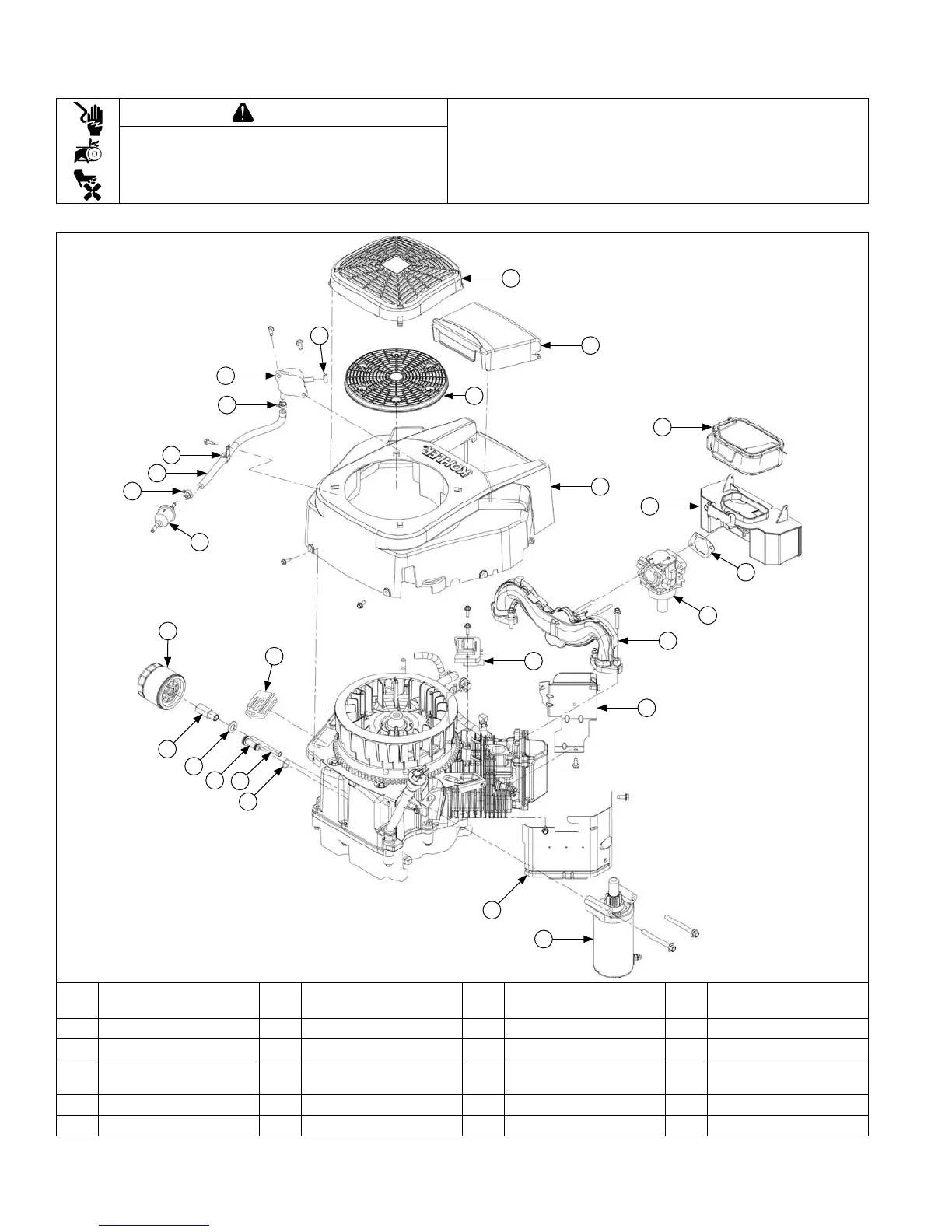

External Engine Components
J
X
E
P
G
W
V
E
E
F
H
K
I
L
M
N
L
O
B
A
C
D
R
Q
S
T
U
A Fixed Guard B
Air Cleaner
Access Door
C Debris Screen D Blower Housing
E Hose Clamp F Fuel Pump G Hose Clip H Fuel Line
I Fuel Filter J Oil Filter K Nipple L O-Ring
M
Oil Feed Tube
(Oil Pump Outlet)
N
Oil Feed Tube
(Filter to Pan)
O Outer Bafe P Electric Starter
Q Inner Bafe R Ignition Module S Intake Manifold T Carburetor
U Gasket V Air Cleaner Base W Air Cleaner X Rectier-Regulator

Kohler Courage PRO Specifications

General

Governor Type	Mechanical
Compression Ratio	8.5:1
Fuel Type	Gasoline
Cooling System	Air Cooled
Ignition System	Electronic
Starting System	Electric start (optional recoil start)
Lubrication System	Splash lubrication
