Kohler Courage XT-6 Service Manual

8.10
Section 8
Disassembly

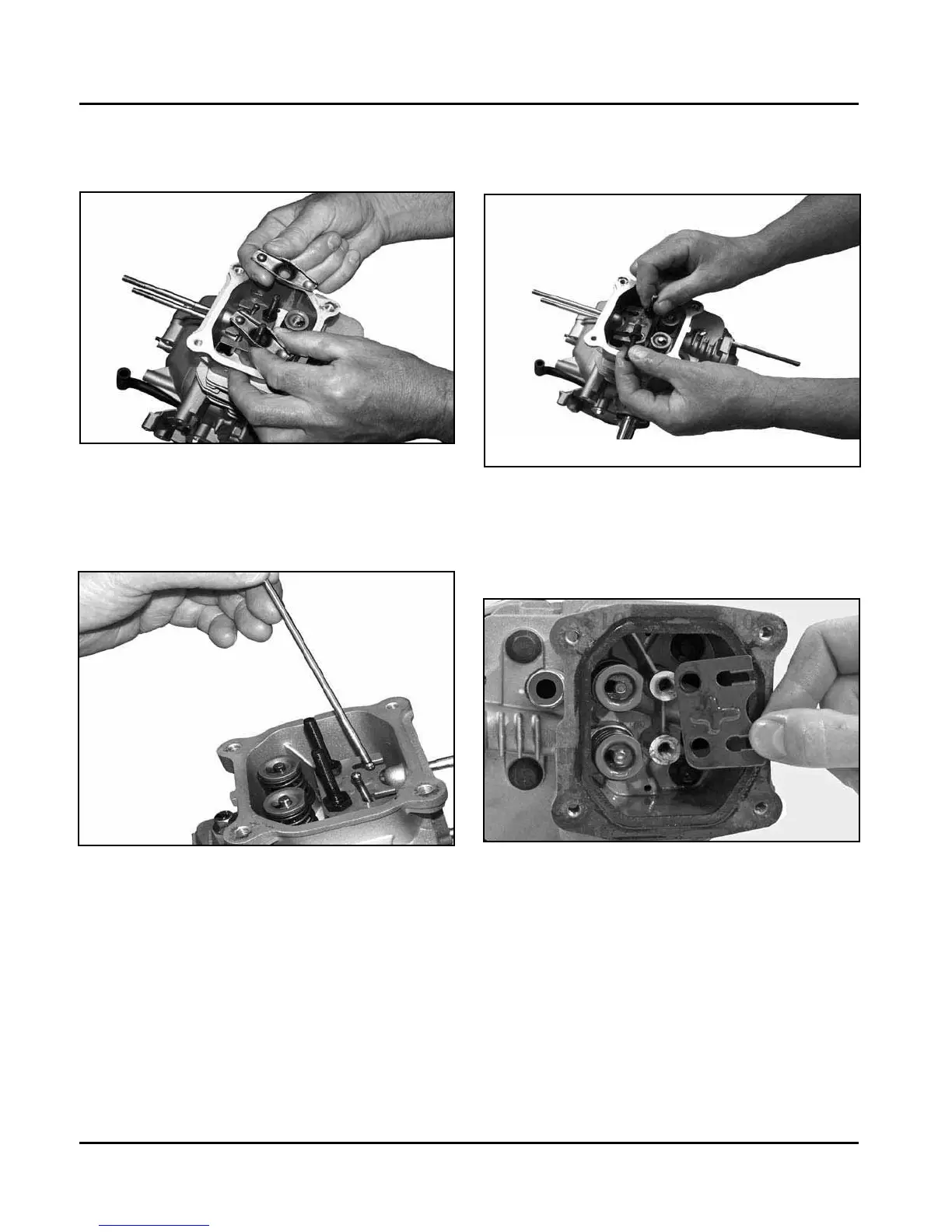

Figure 8-36. Removing Rocker Arms.
Remove Rocker Arms
ȱ ŗǯȱ ȱǰȱĞȱȱȱȱěȱȱȱ
rocker studs. See Figure 8-36.
Remove Push Rods
1. Remove the push rods and mark them for
reinstallation. See Figure 8-37.
Figure 8-37. Removing Push Rods.
Remove Guide Plate
1. Remove the guide plate from the rocker studs.
See Figure 8-39.
Figure 8-39. Removing Guide Plate.
Figure 8-38. Removing Rocker Studs.
Remove Rocker Studs
1. Unscrew and remove the rocker studs from the
cylinder head. See Figure 8-38.

Kohler Courage XT-6 Specifications

General

Displacement	149 cc
Compression Ratio	8.5:1
Fuel Type	Unleaded gasoline
Starter Type	Recoil
Engine Type	4-Cycle, OHV, Single Cylinder
Oil Capacity	0.6 L (20 fl. oz.)
Ignition System	Electronic
Fuel Tank Capacity	1.1 L (37 fl. oz.)
