Kohler Courage XT-6 Service Manual

8.11
Section 8
Disassembly
8
Remove Cylinder Head
ȱȱŗǯȱ ȱȱȱ¡ȱĚȱȱȱȱ
cylinder head. See Figure 8-40.
2. Remove the cylinder head, noting the positioning
of the dowels. See Figure 8-41.

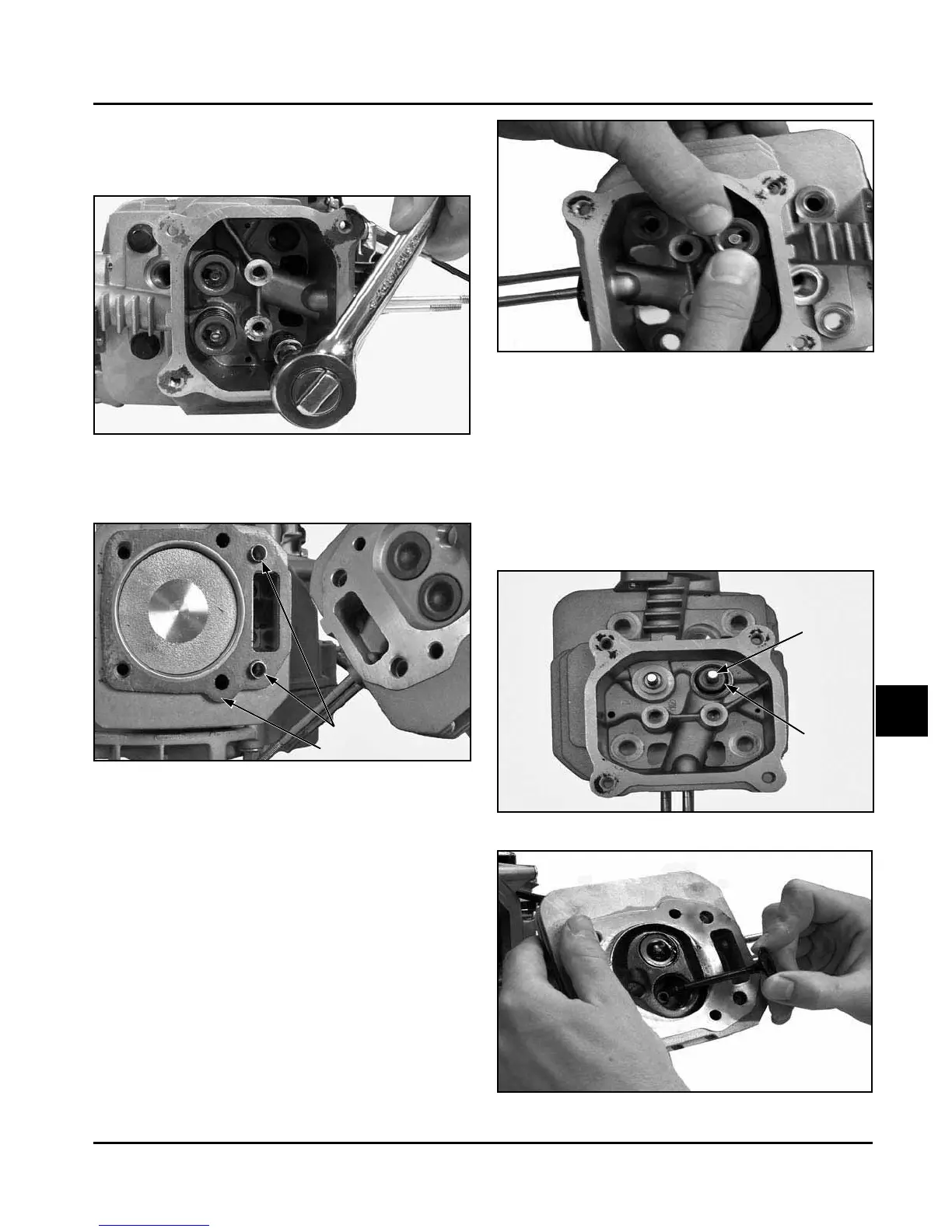

Figure 8-41. Cylinder Head Dowels.
Figure 8-40. Removing Cylinder Head.
3. Remove the head gasket and discard. See Figure
8-40.
Remove Valve Assembly
1. Push down on the valve spring keepers to release
the valve springs from the valve stems. See Figure
8-42.
2. Remove the valve spring keepers and springs.
Figure 8-42. Removing Valve Spring Keepers.
Figure 8-44. Removing Valves.
Dowels
Gasket
ȱ řǯȱ ȱȱȱȱȱȱȱǻȱŞȬŚŘǼȱȱ
ȱȱȱȱǻȱŞȬŚřǼǰȱȱȱ
both valves from the opposite end of the head
ǻȱŞȬŚŚǼǯȱȱȱȱȱȱ
EXHAUST for reinstallation.
DZȱ ¢ȱȱ¢ȇȱȱȱȱ
a seal. There is no valve seal on the
exhaust side.
Valve
Seal
Intake
Valve
End
Figure 8-43. Removing Valve Seal, Intake Valve

Kohler Courage XT-6 Specifications

General

Displacement	149 cc
Compression Ratio	8.5:1
Fuel Type	Unleaded gasoline
Starter Type	Recoil
Engine Type	4-Cycle, OHV, Single Cylinder
Oil Capacity	0.6 L (20 fl. oz.)
Ignition System	Electronic
Fuel Tank Capacity	1.1 L (37 fl. oz.)
