Kohler Courage XT-6 Service Manual

8.12
Section 8
Disassembly

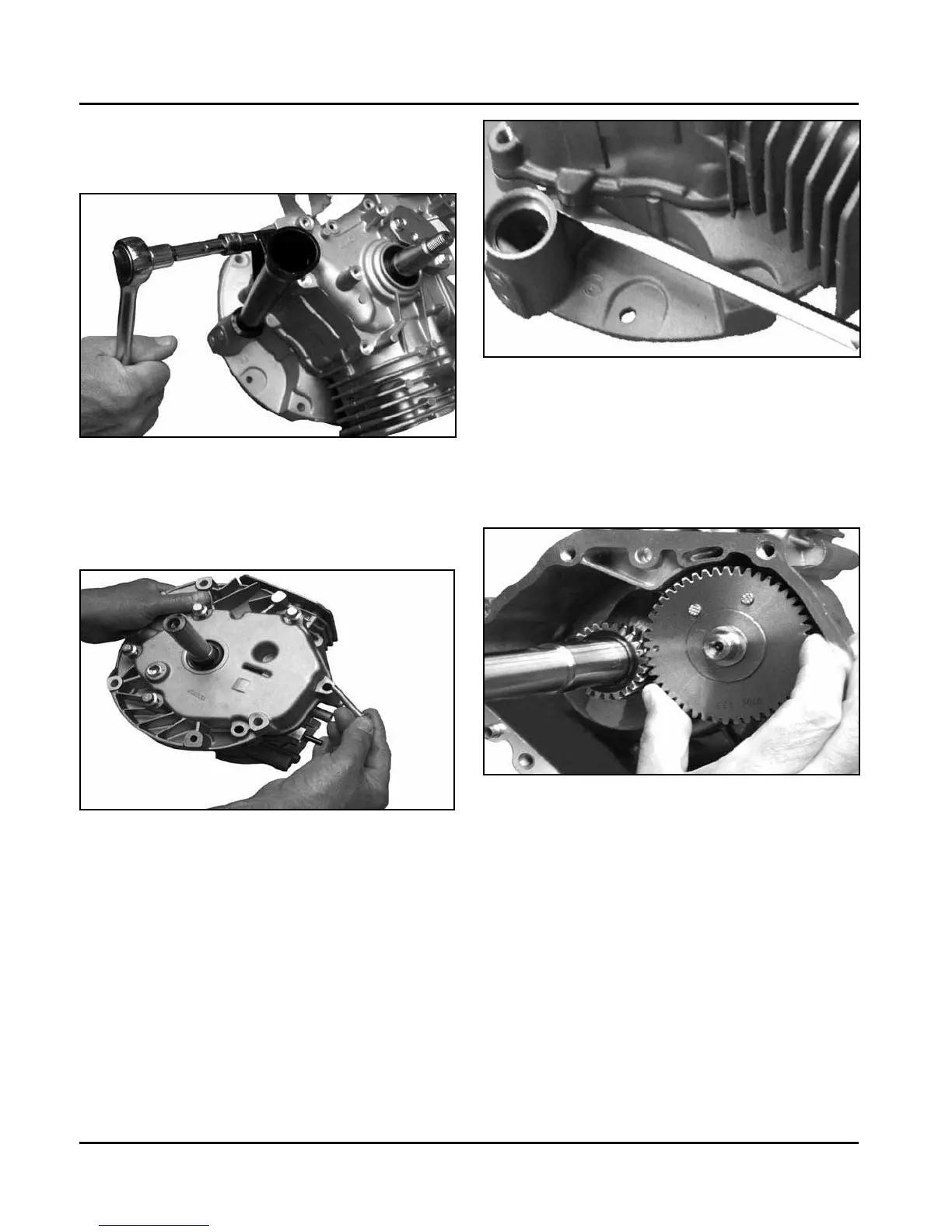

Figure 8-45. Removing Dipstick Tube.
Remove Dipstick Tube
ȱ ŗǯȱ ȱȱ¡ȱĚȱȱȱȱ
dipstick tube. See Figure 8-45. Remove the tube.
ȱ Řǯȱ ȱȱĚȱȱȱȱǰȱ
carefully separate the oil pan from the crankcase.
See Figure 8-47.
Remove Oil Pan and Gasket
ȱ ŗǯȱ ȱȱ¡ȱ¡ȱĚȱȱȱȱȱ
pan. See Figure 8-46.
Figure 8-46. Removing Oil Pan Screws.
Figure 8-47. Separating Oil Pan from Crankcase.
3. Remove the old gasket and discard.
Remove Camshaft
ŗǯȱ ȱȱĞȱȱȱǯȱȱ
Figure 8-48.
Figure 8-48. Removing Camshaft.
Remove Governor Gear and Shaft
ŗǯȱ ȱȱ¡ȱĚȱȱȱȱȱ
securing the governor gear. See Figure 8-49.

Kohler Courage XT-6 Specifications

General

Displacement	149 cc
Compression Ratio	8.5:1
Fuel Type	Unleaded gasoline
Starter Type	Recoil
Engine Type	4-Cycle, OHV, Single Cylinder
Oil Capacity	0.6 L (20 fl. oz.)
Ignition System	Electronic
Fuel Tank Capacity	1.1 L (37 fl. oz.)
