Kohler Courage XT-6 Service Manual

10.3
Section 10
Reassembly
10
ȱ Ŝǯȱ ȱȱĞȱȱȱȱȱȱ
rod. Align the rod cap and connecting rod to
match the marks. Torque the screws to 12.5 N·m
(110 in. lb.). See Figure 10-6.

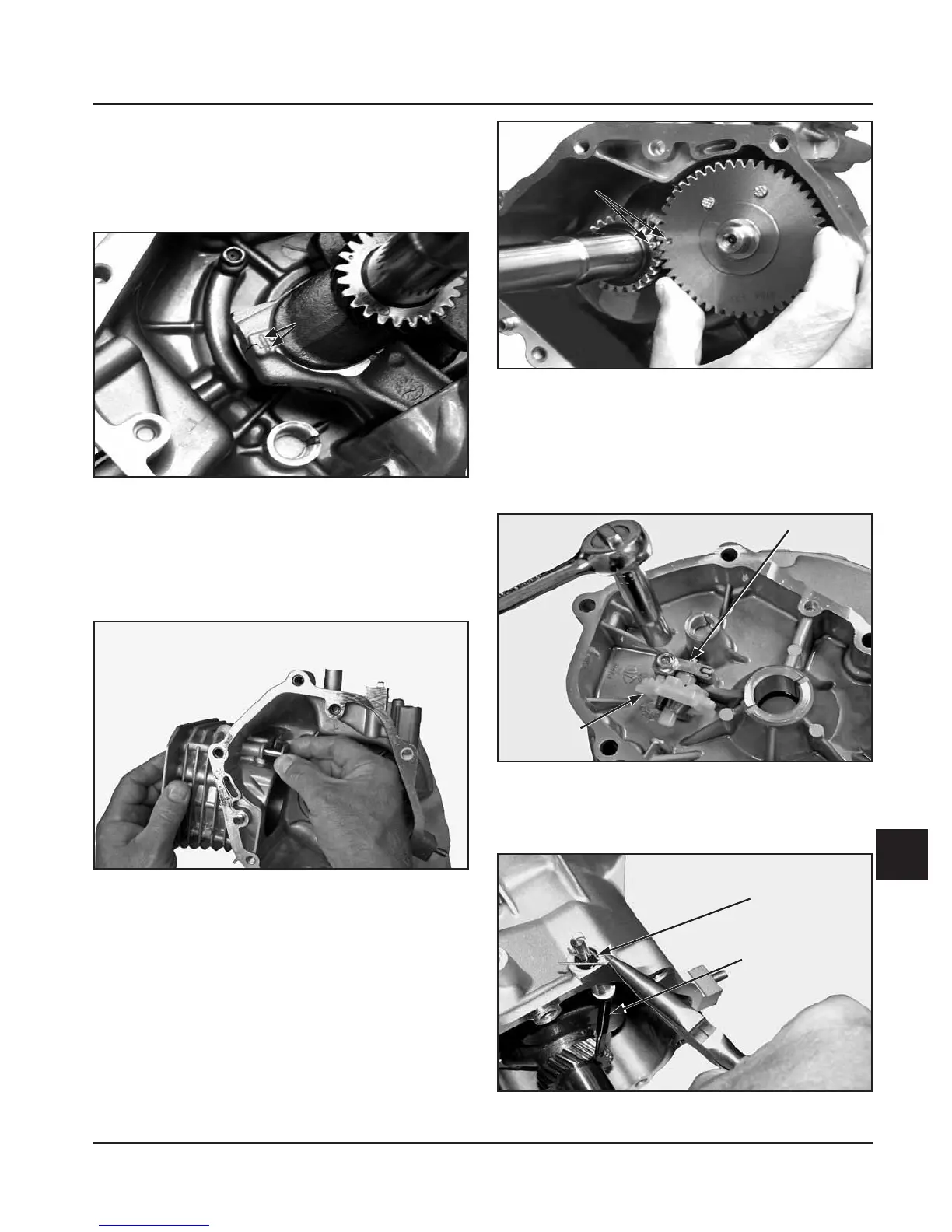

Figure 10-8. Aligning Timing Marks.
ȱ Řǯȱ ȱȱȱȱĞȱȱȱȱȱ
the hitch pin. See Figure 10-10.
Install Tappets
1. Install the INTAKE and the EXHAUST tappets
into their respective positions, as previously
marked. See Figure 10-7.
Figure 10-6. Aligning Match Marks.
Install Camshaft
ȱ ŗǯȱ ȱȱĞȱȱȱȱȱ
with light grease or oil.
ȱ Řǯȱ ȱȱĞȱȱȱȱȱǯȱ
See Figure 10-8.
Figure 10-7. Installing Tappets.
Install Governor Gear Assembly
1. Install the governor gear and retainer, and torque
ȱ¡ȱĚȱȱȱ9.5 N·m (84 in. lb.). See
Figure 10-9.
Figure 10-9. Installing Governor Gear.
Figure 10-10. Installing Governor Shaft, Hitch Pin.
Timing Marks
Match
Marks
Shaft
Hitch Pin
Governor
Gear
Retainer

Kohler Courage XT-6 Specifications

General

Displacement	149 cc
Compression Ratio	8.5:1
Fuel Type	Unleaded gasoline
Starter Type	Recoil
Engine Type	4-Cycle, OHV, Single Cylinder
Oil Capacity	0.6 L (20 fl. oz.)
Ignition System	Electronic
Fuel Tank Capacity	1.1 L (37 fl. oz.)
