Kohler HD Series - Page 63

63
Reassembly
14 690 10 Rev. -- KohlerEngines.com

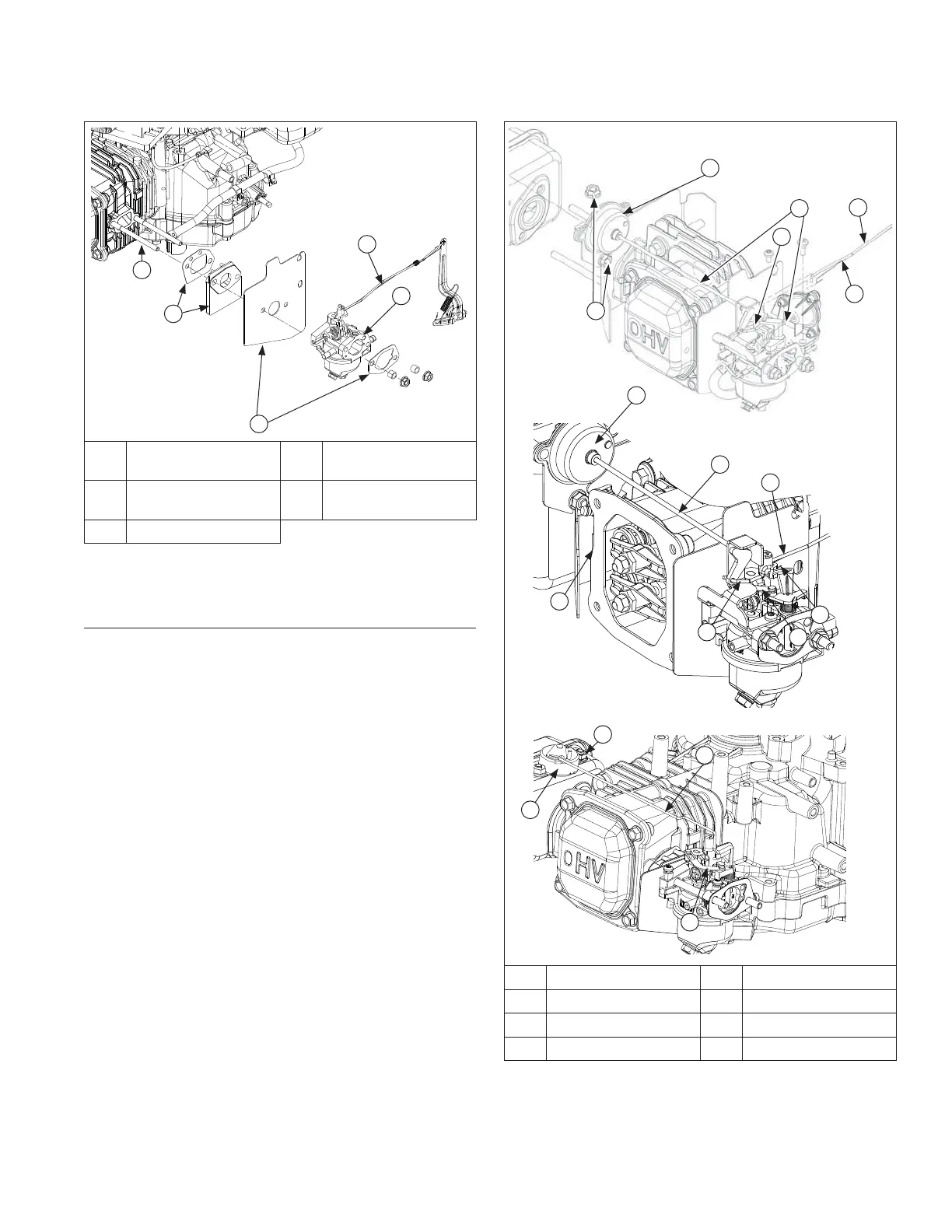

Carburetor Components
A
E
D
B
C
A Carburetor Stud(s) B
Gasket and Spacer
Kit
C
Gasket and Heat
Shield Kit
D Linkage
E Carburetor
Install Carburetor Gaskets
Place spacer gasket, cylinder head spacer and heat
defl ector gasket on carburetor studs in order shown.
Install Carburetor and Linkage
NOTE: There are several diff erent ways to attach
carburetor linkage depending on carburetor and
speed bracket used.
Install Carburetor with Standard Choke
1. With carburetor not yet mounted on studs, rotate it
slightly and slot elbow, at end of linkage, into choke
lever.
2. Connect throttle linkage and linkage spring to throttle
lever on carburetor.
3. Slide carburetor onto mounting studs.
Install Carburetor with Auto Choke (if equipped)
B
C
H
A
B
C
A
F
E
D
G
E
F
A
H
B
C
A Nut(s) B Arm Assembly
C Linkage D Choke Linkage
E Governor Linkage F Linkage Spring
G Wire Choke Linkage H Choke Link
1. Mount arm assembly onto muffl er securing with nuts.
Torque to 8.5 N·m (75 in. lb.).
2. Slide carburetor at least halfway onto mounting
studs. Connect throttle linkage and linkage spring to
carburetor.
