Reassembly
KohlerEngines.com 14 690 10 Rev. --
3. Connect wire choke linkage while sliding carburetor
to its seated position against engine.
4. Insert screws connecting arm assembly to
carburetor. Torque to 2.3 N·m (20 in. lb.).
Adjust Governor
Move governor lever away from carburetor to limit of its
travel (wide-open throttle), and hold in this position. Do
not stress, fl ex or distort linkage. Grasp cross shaft with
a pliers and turn shaft clockwise as far as it will go, hold
and tighten nut. Torque nut to 9.5 N·m (84 in. lb.).

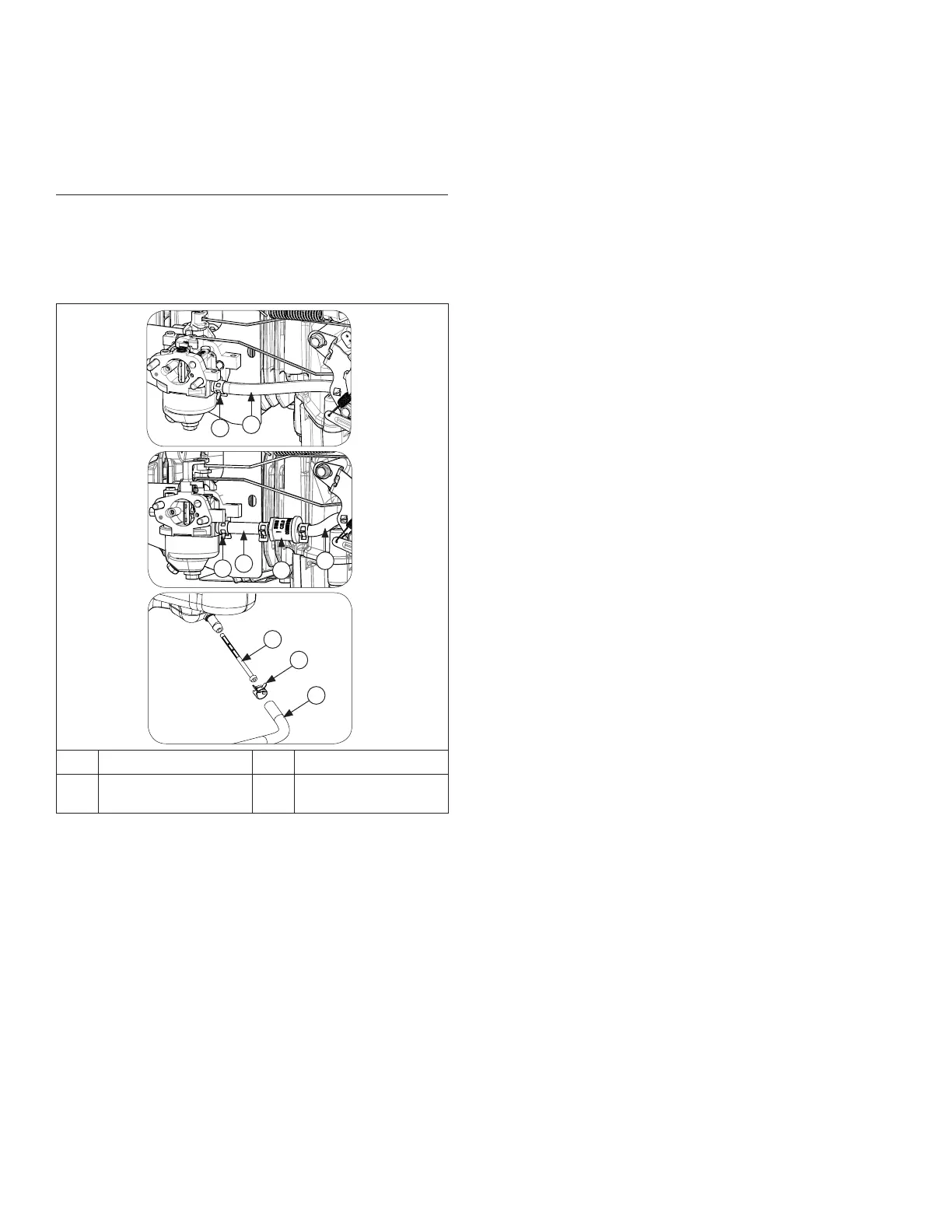

Reconnect Fuel Line
A
B
A
B
B
C
A
B
D
A Hose Clamp B Fuel Line
C
Fuel Filter (if
equipped)
D
In-Nipple Fuel Filter
(if equipped)
1. Slide fuel line tight up against carburetor, and secure
connection with a hose clamp.
2. Ensure that in-nipple fuel fi lter (if equipped) is in
place in fuel tank outlet.
3. Connect fuel line to fuel tank and slide hose clamp to
secure.
