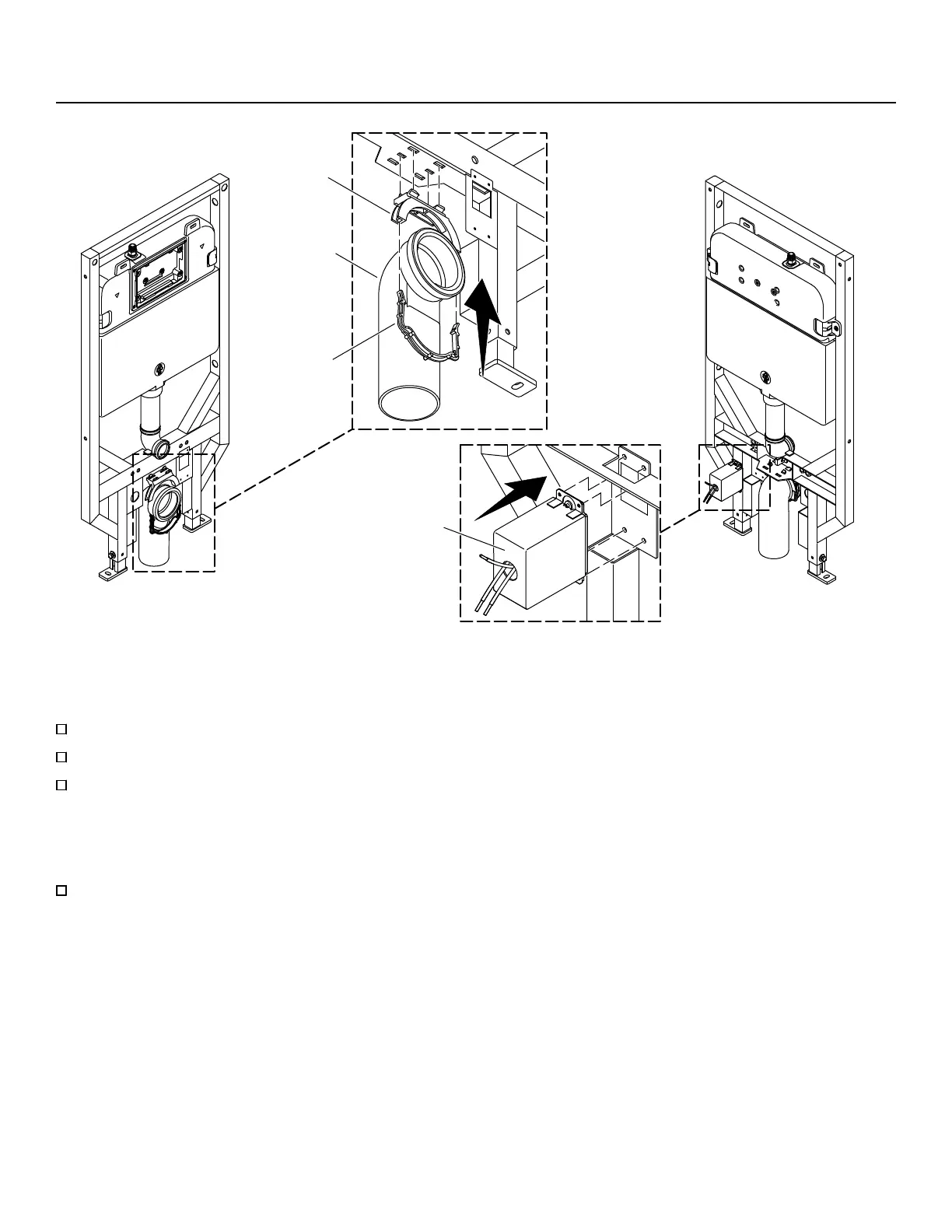

2. Prepare the Carriage
Electrical Box
Back View
Mounting
Frame
Elbow
Front View
Drain
Clamp
All Installations
NOTE: If using 2x6 studs, install the mounting frame into the back notches.
Install the mounting frame into the front notches on the boom of the carriage.
Insert the elbow into the mounting frame.
Secure the elbow in place with the drain clamp. Press the clamp into the frame until it locks into place.
For Installations with a Cleansing Seat
NOTE: The 1201721 electrical box kit is required when pairing the K-4744 cleansing seat with the bowl.
Connect the electrical box to the carriage at the location shown.
1430967-2-B
6 Kohler Co.
To Next Page
