Crankshaft Installation and End Play Adjustment
K482--Two Sleeve Bearing Type
--
End Play ,004'' to ,010''
1.
Start with one white gasket (next to block) then add one blue gasket (.005").
(Or
use same gasket
combination and sequence as noted during disassembly procedure.
)
2.
Install closure plate and secure with four capscrews and lock washers. Tighten capscrews to
specified torque value. Bump end of shaft with soft head hammer to make sure it is all the way
down.
3.

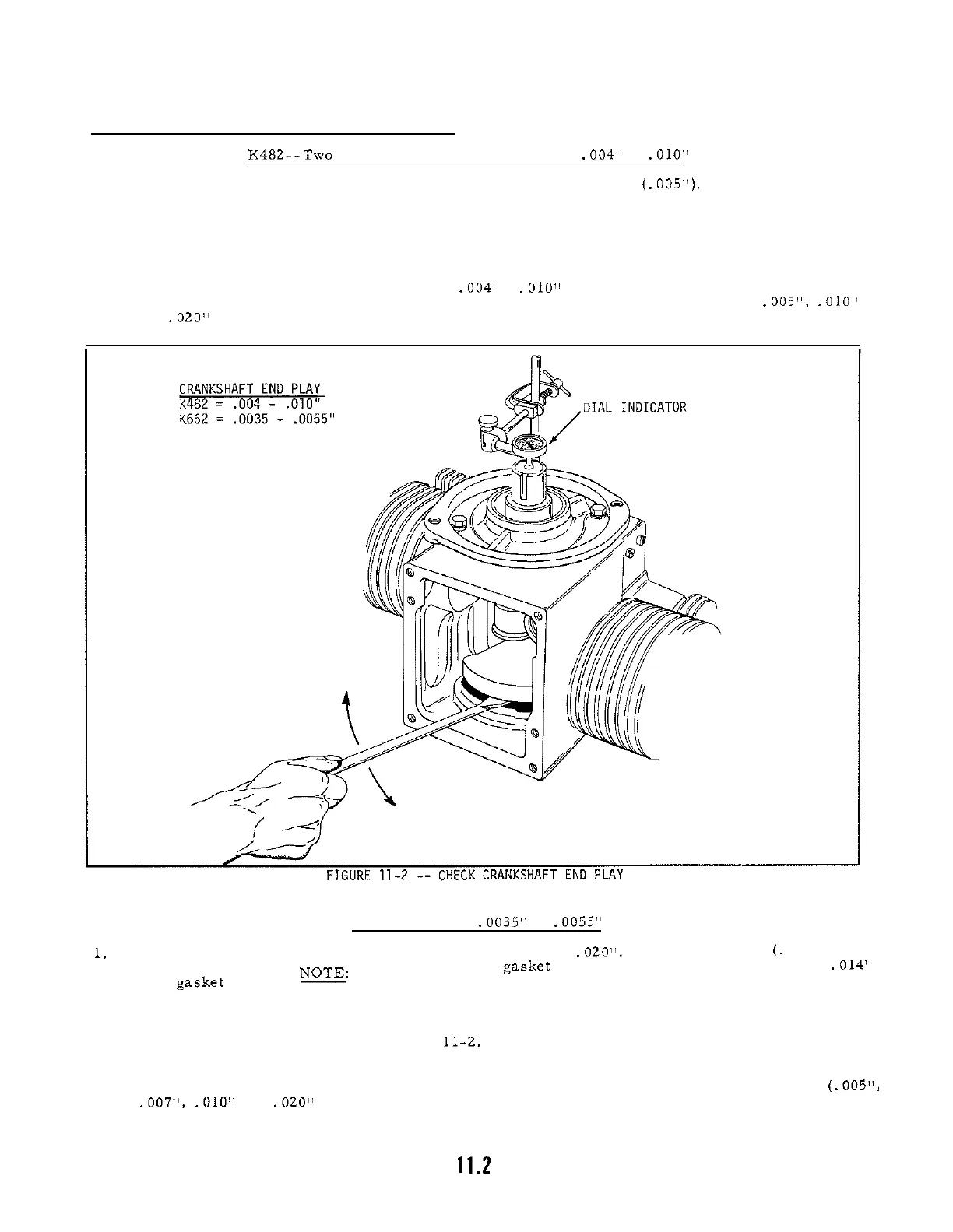

Mount dial indicator as shown in Figure 11
-
2, set dial at zero then place screw driver blade
between counterweight and hlock. Pry crankshaft toward closure plate end and observe reading
on dial indicator.
If end play is not in the
,004"
-
,010" range, proceed with Step 4.
4.
Remove closure plate then add or subtract gaskets to achieve proper end play (use
.005", .010"
and ,020" gaskets as required). Replace closure plate, torque capscrews, and repeat end play
check.
Install rear oil seal after end play is corrected.
K662
--
End Play .0035" to .0055"
1.
Start with two white
(.
007
"
) gaskets then place steel shim ,020".
Place three white
(.
007
"
) gas
-
kets on top of shim.
NS:
Do not use shim if gasket thickness on either side is less than ,014"
or if gasket stack totals less than ,048
"
--
substitute ,020
"
size paper gasket if shim cannot be
used.
2.
Install closure plate and secure with capscrews and lock washers.
Tighten capscrews to speci
-
fied torque value.
Bump end of crankshaft to make sure hearings are fully seated.
3.
Mount dial indicator as shown in Figure 11-2.
Set dial at zero then place screw driver blade
between counterweight and black.
Pry crankshaft toward closure plate end and observe reading
on dial indicator.
If end play is not within the
.
0035
"
to ,0055
"
range, proceed with Step
4.
4.
Remove closure plate then add or subtract gaskets as necessary to achieve proper end play
(.005",
.007", ,010" and .020" gaskets
are
available).
Replace closure plate, torque capscrews, and
repeat end play check.
Install rear oil seal in closure plate after end play is corrected.
