TP-7070 7/1866 Section 2 Operation
Screen 4.4--Regulation & protection
The 4.4--Regulation and protection screen is used to read all the internal variables for the regulation and protection
modules.
1. Entry field for a variable name
2. Value or status of the variable
3. Numeric keypad for entering the variable name
1
2
3

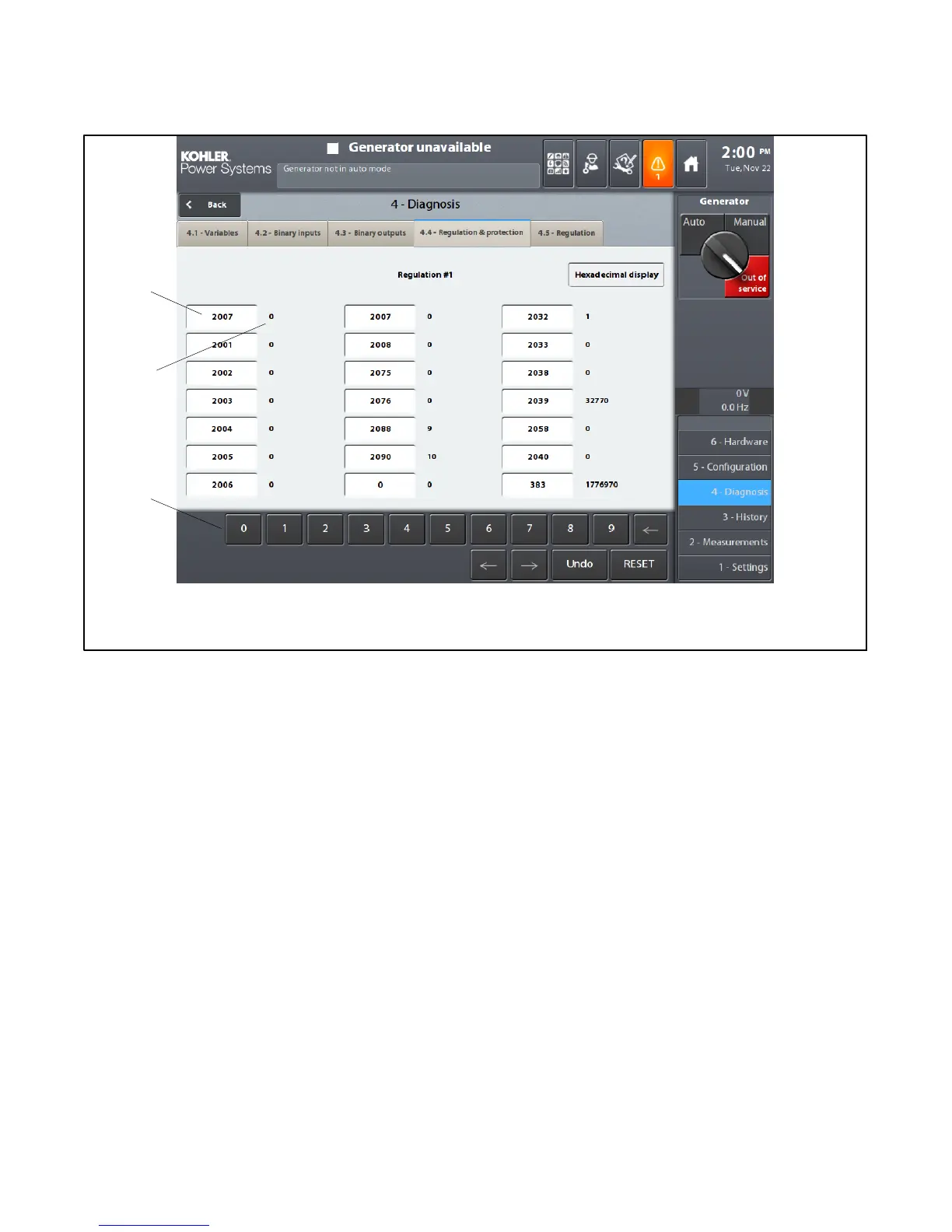

Figure 2-73 Regulation and Protection Screen
The process for entering a regulation or protection variable is the same as for the 4.1--Mapping screen.
By default, the diagnostic table for the regulation and protection variables is already completed with the name of the
current variables.
