- 50 -
LUBRICATION SYSTEM

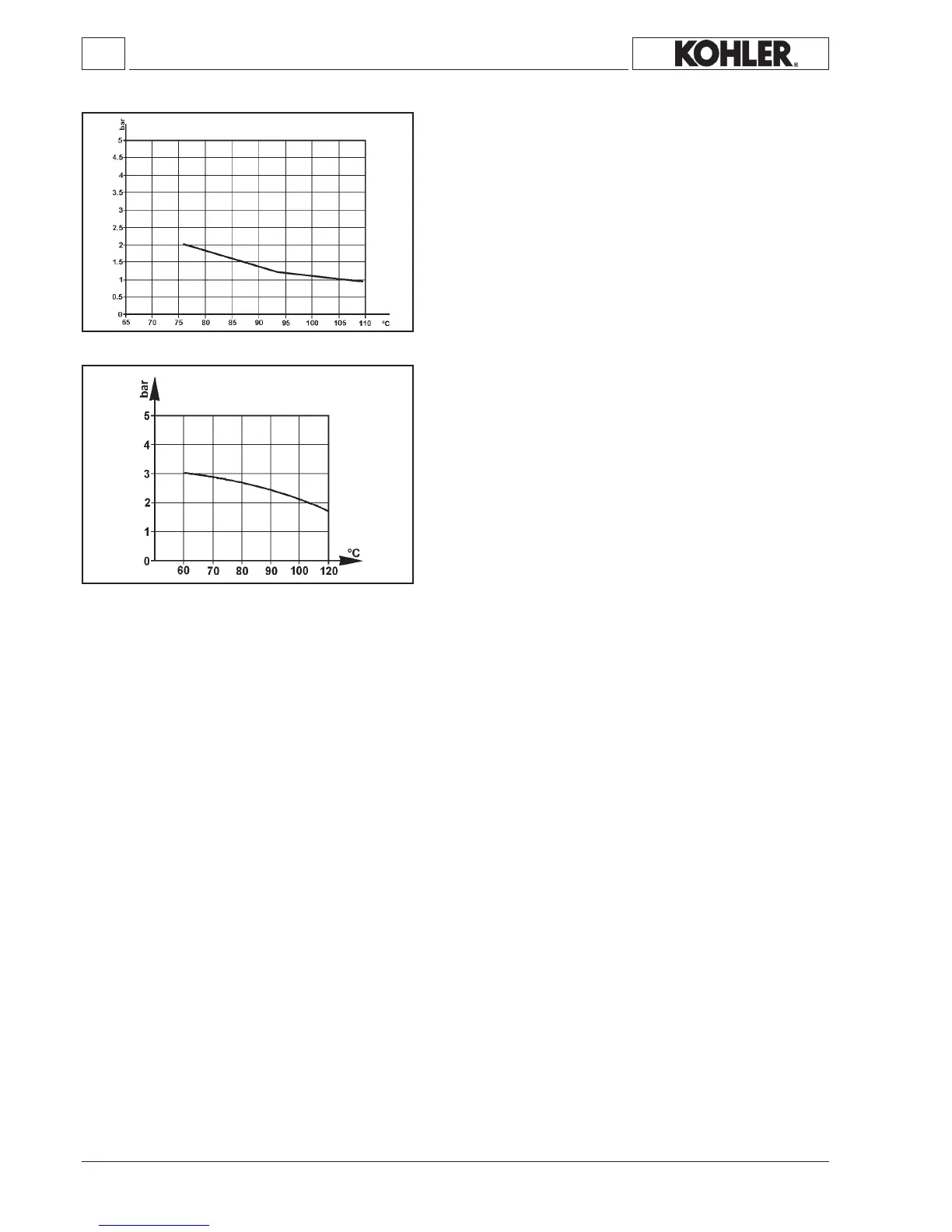

Oil pressure curve at idle speed
Thecurveisobtainedattheoillterportwithenginerunningatacon-
stantspeedof1200r.p.m.inno-loadconditions;pressureisgivenin
barandtemperatureincentigrades.
The curve represents the minimum pressure value  while the maxi-
mumvalueis5bar.
Oil pressure curve at full speed
Thecurveisobtainedattheoillterportwithenginerunningat3000
r.p.m. at the N power; pressure is given in bar and temperature in
centigrades.
The curve represents the minimum pressure value while the  maxi-
mumvalueis5bar.
Note:Aftertherunning-inperiodthelubemax.temperatureshouldbe
lessthantheroomtemperature+95°C.
