TP-7070 7/18 29Section 2 Operation

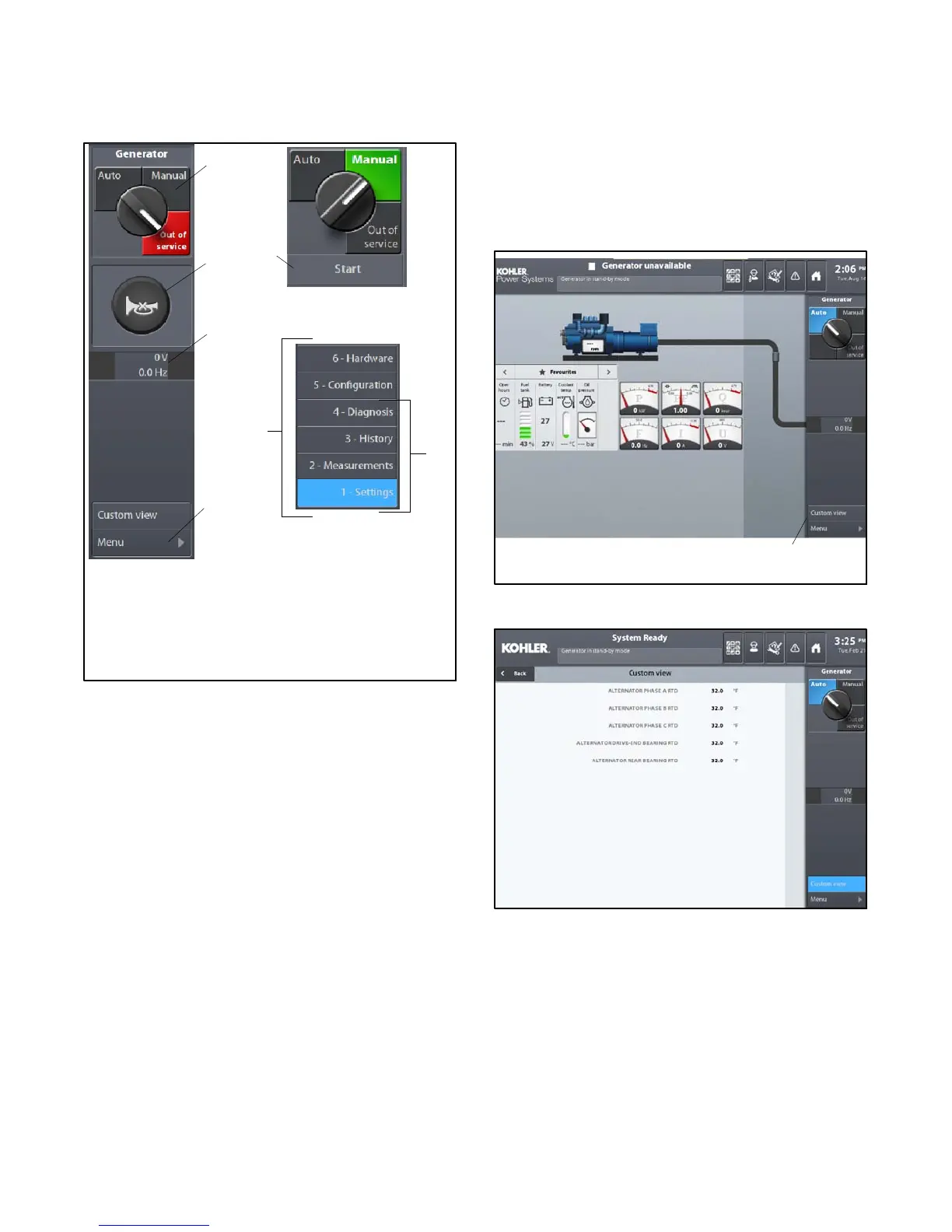

2.7.4 Control Panel
The control panel includes the generator set master
switch and other controls. See Figure 2-8.
1. Mode selection touch pad
2. Horn silence button appears for alarm or fault
3. Start button in manual mode
4. Voltage and frequency shown when running
5. Touch Menu button for menu access
6. Operator menus (operator login required)
7. User menus
6
1
2
4
5
7
3
Figure 2-8 Control Panel
2.7.5 Custom View Button
On medium voltage units equipped with thermocouple
modules, touch the custom view button to see alternator
temperature readings from the thermocouple modules.
If no thermocouple modules are installed, 32_F(or0_C)
is displayed for all temperatures. If nothing is connected
to one channel on a thermocouple module, --58 _F(or
-- 5 0 _C) is displayed.
1
tp7070
1. Custom view button
Figure 2-9 Custom View Button
Figure 2-10 Custom View Temperature Display
