TP-7070 7/1858 Section 2 Operation
2.12.2 Menu 2--Measurements
The 2--Measurements menu can be accessed via the button with the same name. This gives access to the screens
listed below.
D Screen 2.2 -- Mechanical
D Screen 2.3 -- Generator electrical
D Screen 2.6 -- Harmonics
Note: The measurements menus are view-only; no modifications are possible from these menus.
Screen 2.2--Mechanical
The 2.2--Mechanical screen gives an overview of all the mechanical values for the associated generator.
1. Separation of the mechanical values into three categories
1

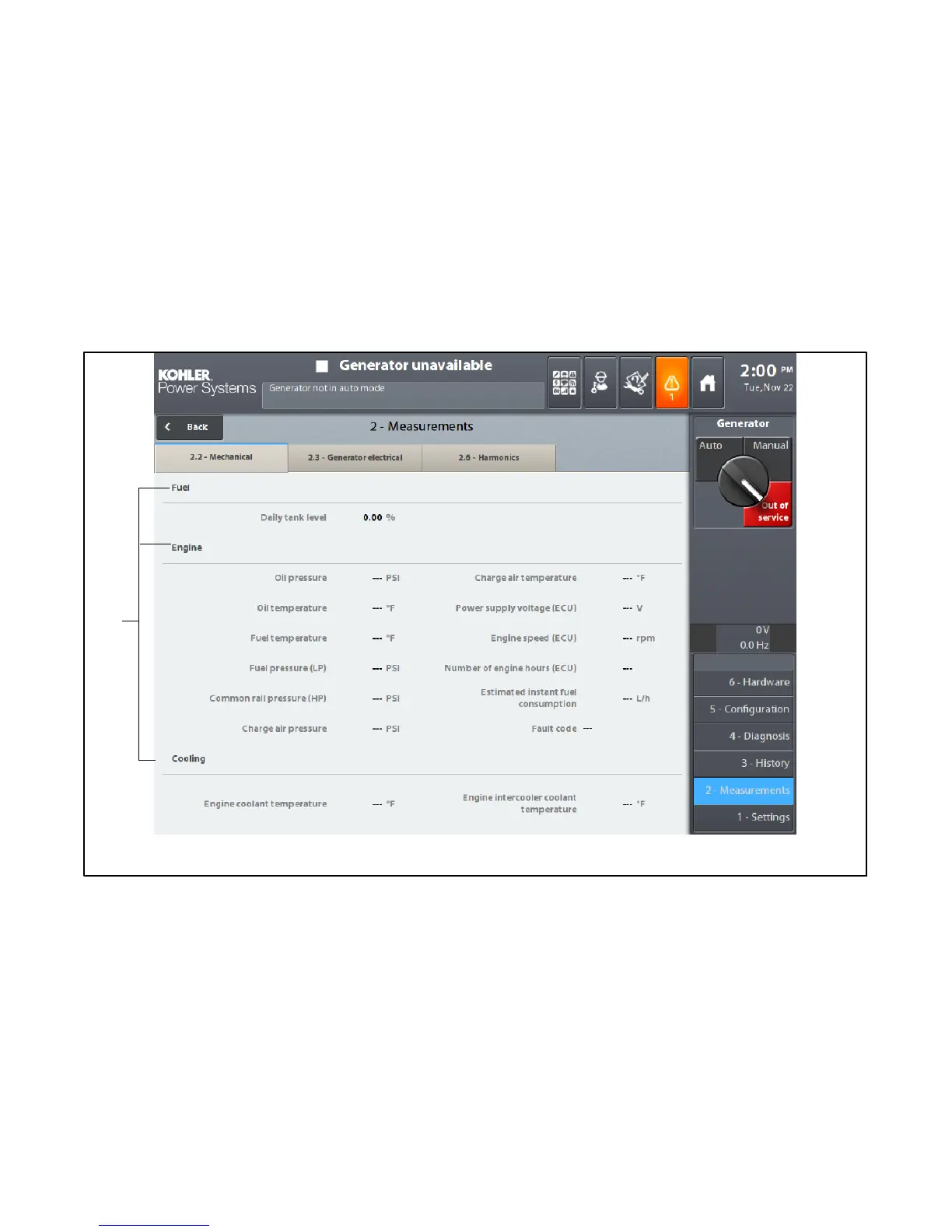

Figure 2-64 Mechanical Screen
Note: Other values may be displayed depending on the engine selected in the 6.1.2 generator set screen.
