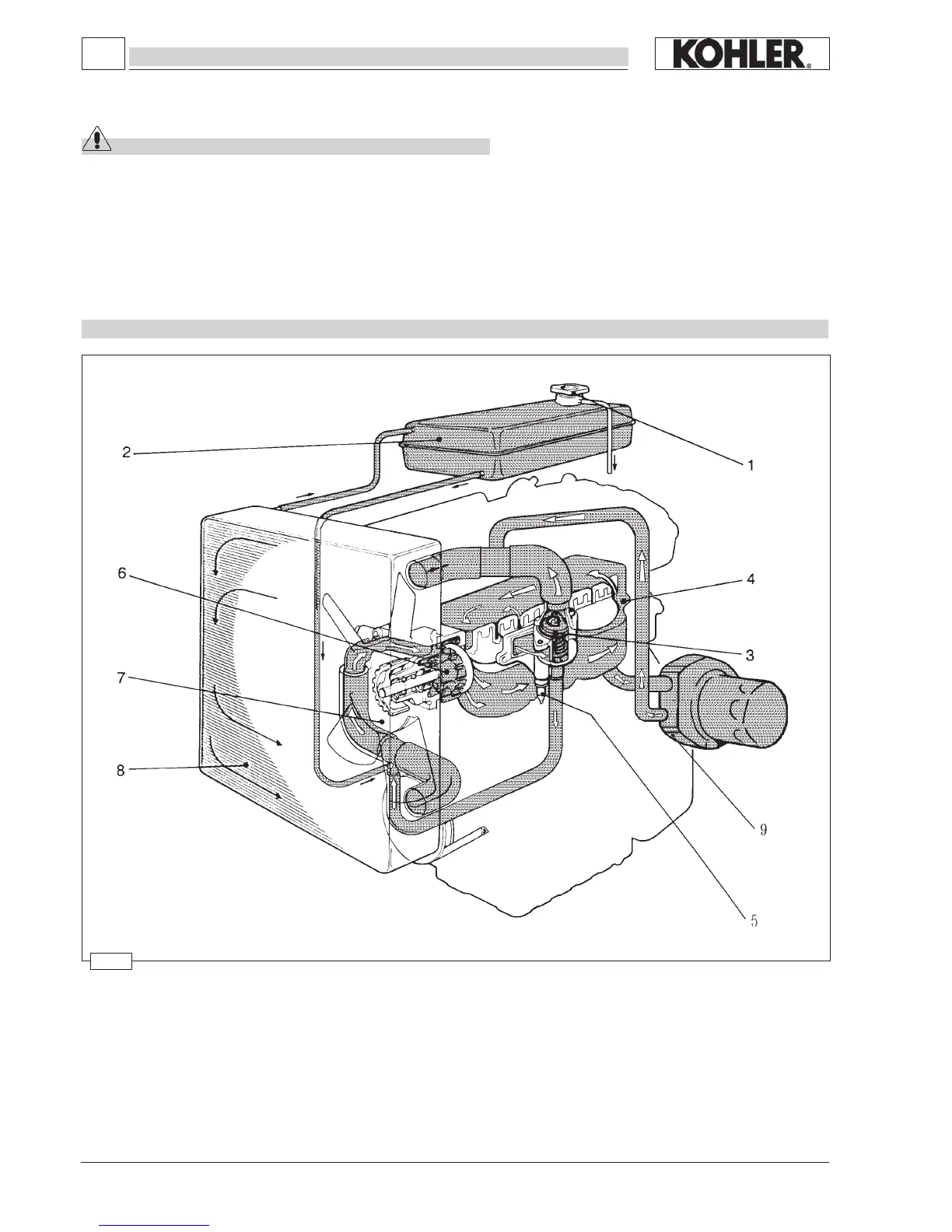

Components:
1 Coolant ller plug 6 Circulation pump
2 Compensating tank 7 Fan
3 Thermostatic valve 8 Radiator
4 Cylinder block
5 Thermostat for liquid temperature indicator
COOLANT CIRCUIT
Danger – Attention
- The coolant circuit is pressurised. Do not check it before the engine has cooled down and, also in that case, open
the radiator cap or expansion tank plug with caution.
- When there is an electric fan do not approach a hot engine because it could also come on with the engine off.
- The liquid coolant is a pollutant and therefore must be disposed of with care according to environmental provisions.
