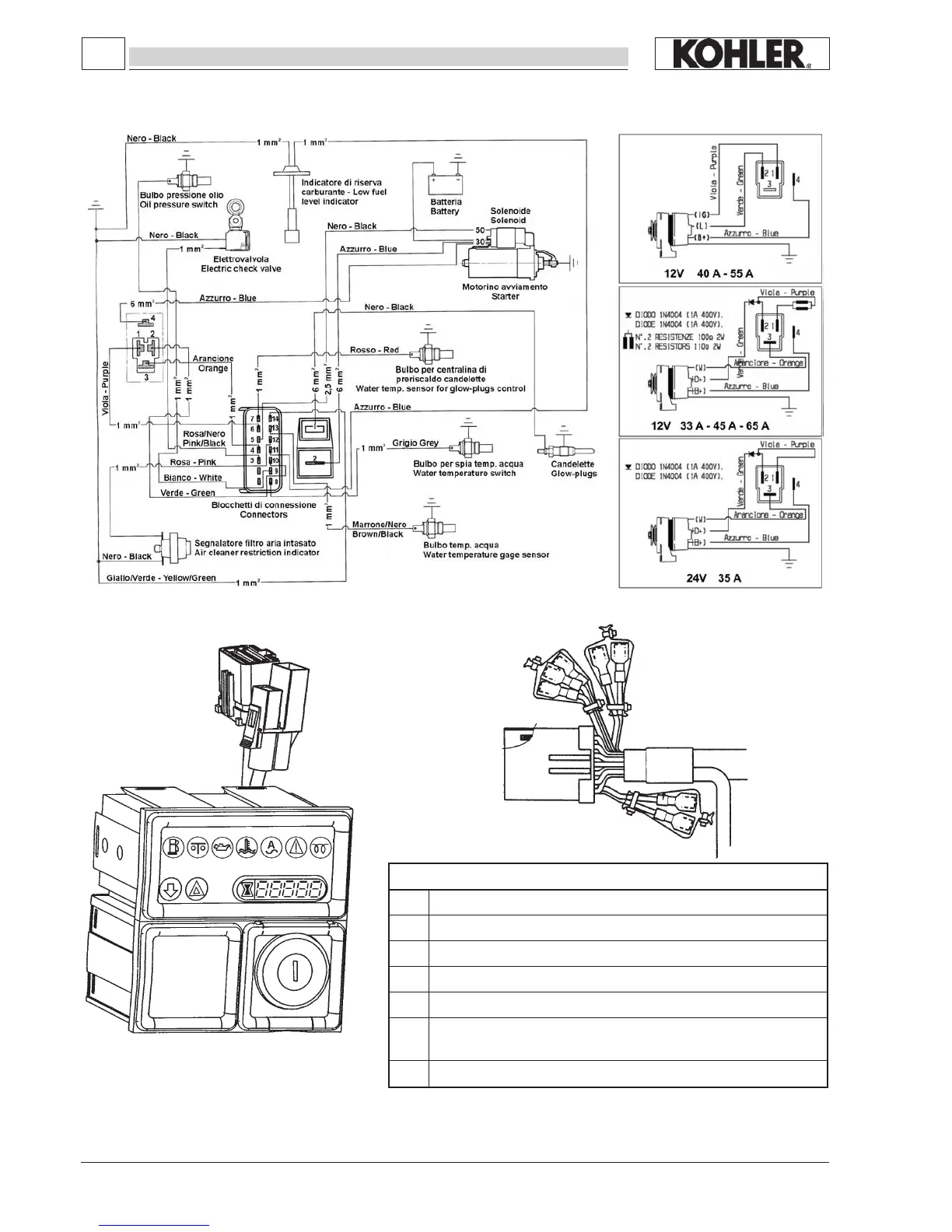

ELECTRIC CONTROL PANEL WITH AUTOMATIC ENGINE STOP
(UPON REQUEST)
AUXILIARY TERMINALS
Brown-black = Signal for H2O temperature instrument (6.3)
Orange = Signal for electric rev. indicator (6.3)
White = Oil pressure ON/OFF signal (6.3)
Purple = (+) Positive under key (6.3)
Yellow-green = (-) Negative - Earth (6.3)
Yellow = Protected socket available for engine stop in an emergen-
cy (6.3)
White-blue = Socket available for emergency indicator light (6.3)
