ENGINE DIMENSIONS
DIMENSIONI D’INGOMBRO
MESURES D’ENCOMBREMENT
EINBAUMAßE
DIMENSIONE EXTERIORES
DIMENÇÕES EXTERIORES
KDW 1003
204 (8.03)
515.5 (20.3)
A
B
C
D
186 (7.32)
351.5 (13.84)
E
F
359 (14.13)
165 (6.5)
I
L
450 (17.72)
510 (20.08)
G
H
O
269.2 (10.6)
242.5 (9.54)
150 (5.90)
M
N
169.5 (6.67)
484.5 (19.07)

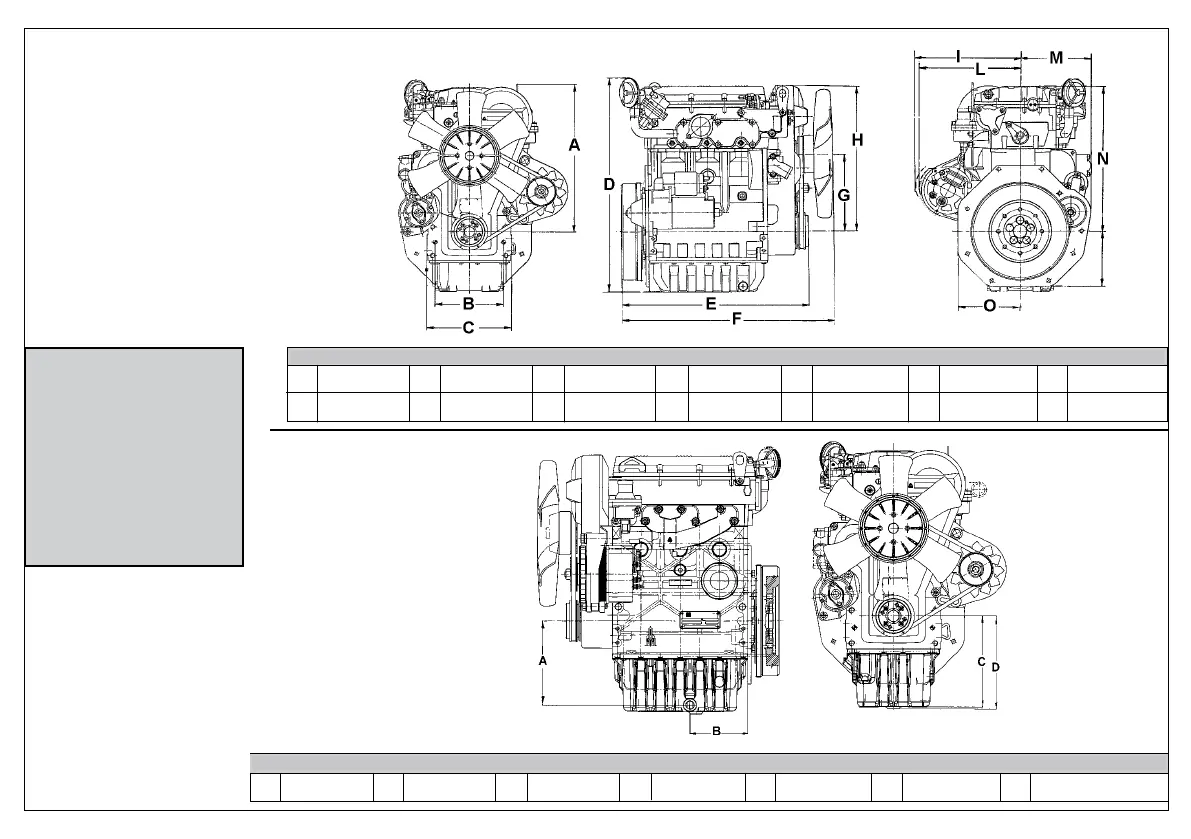

DIMENSIONS mm (in.) - DIMENSIONI mm - MESURES mm - EINBAUMAßE mm - DIMENSIONE mm - DIMENÇÕES mm
A
B C
178.85 (7.04)
192.5 (7.58)
122.25 (4.81)
D
197.85 (7.79)
DIMENSIONS mm (in.) - DIMENSIONI mm - MESURES mm - EINBAUMAßE mm - DIMENSIONE mm - DIMENÇÕES mm
SHEET METAL STANDARD OIL SUMP
COPPA OLIO STANDARD IN LAMIERA
CARTER D’HUILE EN TÔLE STANDARD
STANDARD BLECHÖLWANNE
CÁRTER DE ACEITE STANDARD EN PLANCHA
CÁRTER DE ÓLEO STANDARD EM CHAPA
OVERSIZE ALUMINUM OIL SUMP
COPPA OLIO MAGGIORATA IN ALLUMINIO
CARTER D’HUILE SURDIMENSIONNÉ EN ALUMINIUM
VERGRÖSSERTER ALUMINIUMÖLWANNE
CÁRTER DE ACEITE SOBREDIMENSIONADO EN ALUMINIO
CÁRTER DE ÓLEO AUMENTADO - EM ALUMINIO
