Kohler KS595 Service Manual

62
Disassembly/Inspection and Service
KohlerEngines.com 22 690 01 Rev. --
3. Move hose clamp on breather hose away from air
intake elbow. Using Hose Removal Tool (see Tools
and Aids), carefully remove breather hose from air
cleaner adapter.

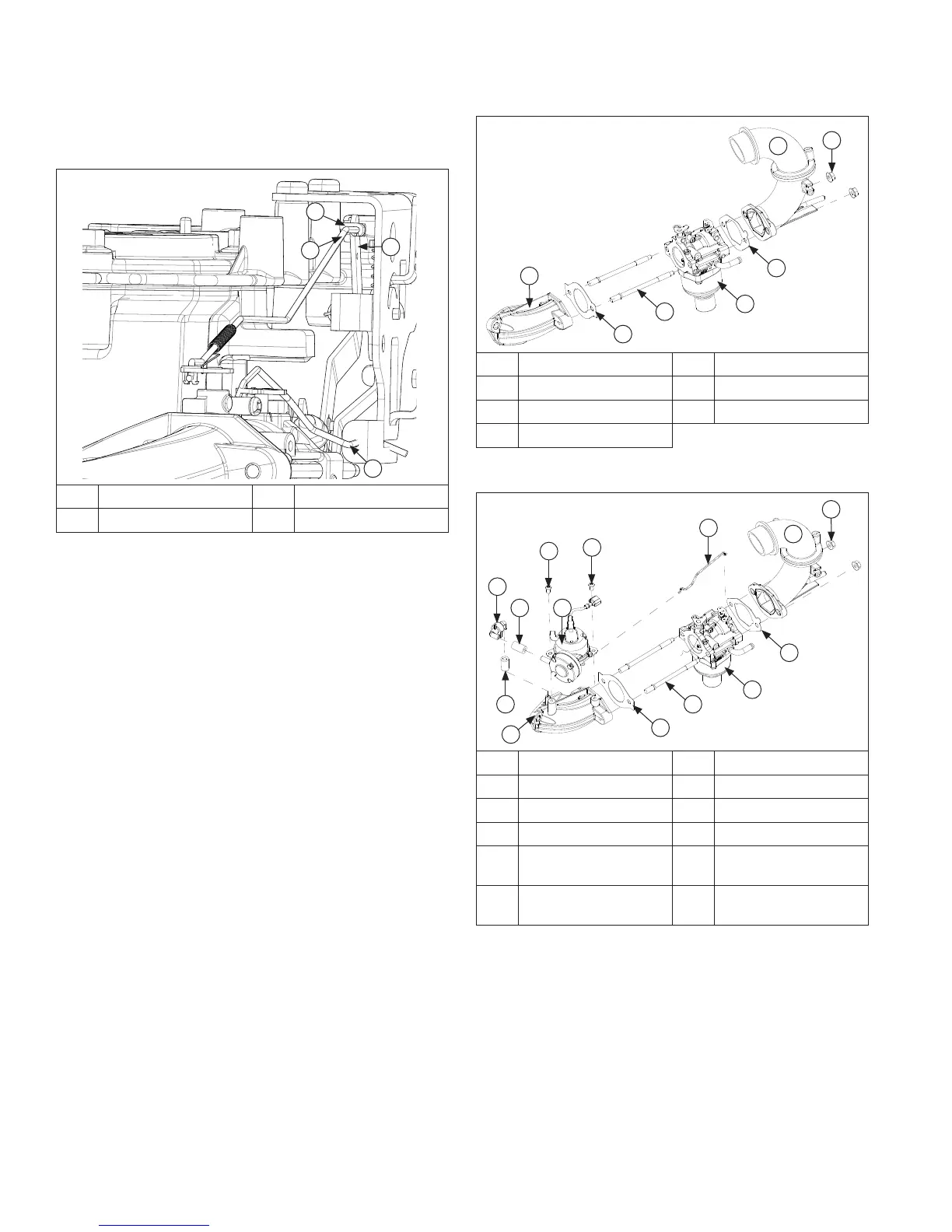

C
A
D
B
A Retainer B Throttle Linkage
C Governor Lever D Choke Linkage
4. Unhook retainer from throttle linkage and remove
linkage from governor lever. Snap retainer on end of
linkage for reassembly.
5. Remove nuts securing intake manifold to cylinder
head.
Standard Choke Single Wire Controls
Slide assembly forward and off intake studs. Turn
assembly 90° to remove choke linkage from speed
control bracket. Remove and discard intake manifold
gasket.
Smart-Choke
TM
Slide assembly forward and off intake studs.
Remove and discard intake manifold gasket.
Assembly includes plastic intake manifold, carburetor
with solenoid and linkage(s), air intake adapter, and if
equipped Smart-Choke components.
Separate parts only if additional service is required.
Standard Choke
A
G
B
C
D
E
F
A Air Cleaner Adapter B Nut
C Gasket D Carburetor
E Stud F Gasket
G Intake Manifold
Smart-Choke
TM
A
B
C
D
E
F
K
I
H
K
J
G
H
L
A Air Cleaner Adapter B Nut
C Gasket D Carburetor
E Stud F Gasket
G Intake Manifold H Vacuum Hose
I
Check Valve
Assembly
J
Diaphragm
Assembly
K K40 x 1.79 Screw L
Smart-Choke
TM
Linkage
