Disassembly/Inspection and Service
KohlerEngines.com 22 690 01 Rev. --
WARNING
Before working on engine or equipment, disable engine as
follows: 1) Disconnect spark plug lead(s). 2) Disconnect
negative (–) battery cable from battery.
Accidental Starts can cause severe injury or
death.
Disconnect and ground spark plug lead(s)
before servicing.

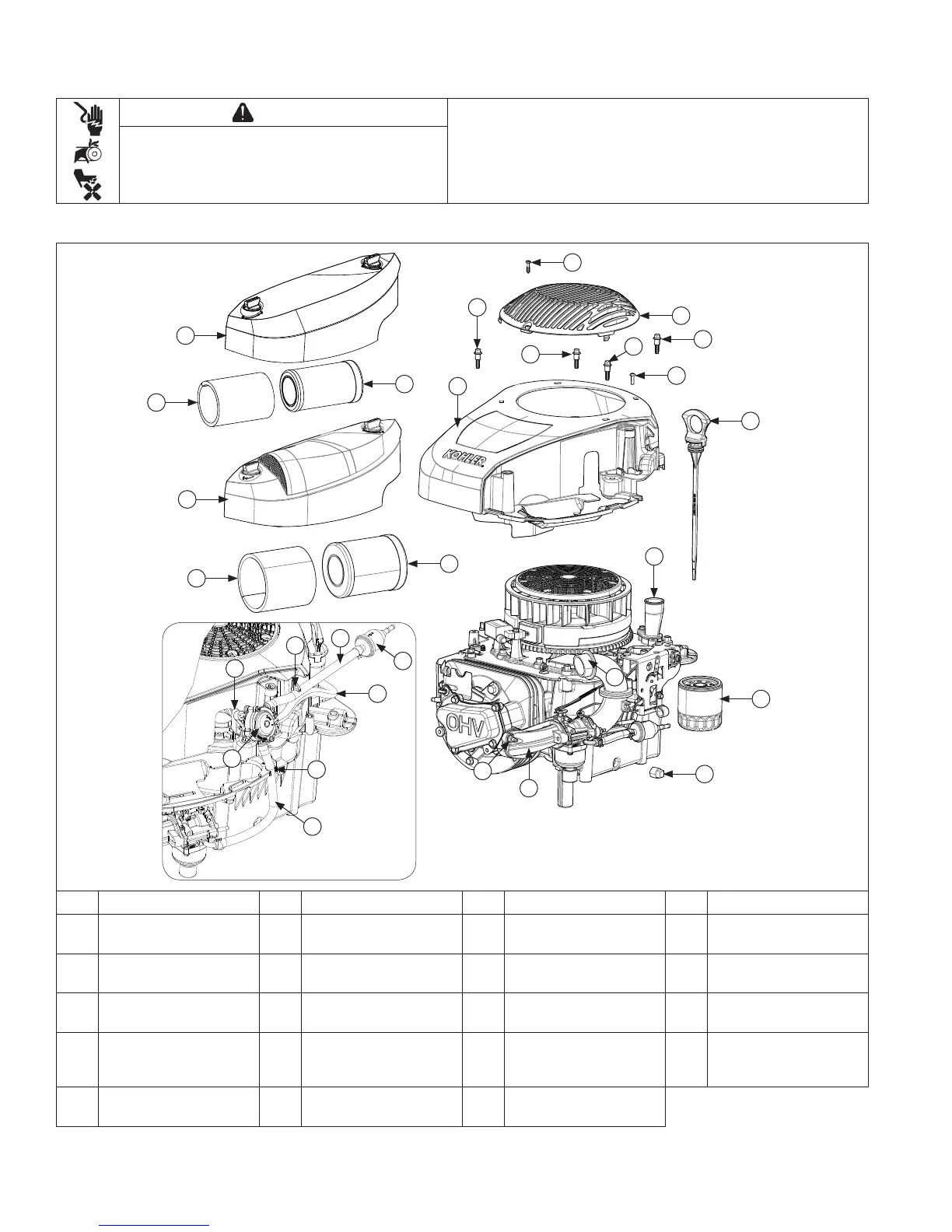

External Engine Components
B
O
N
P
O
R
H
A
D
J
V
J
I
T
S
T
C
I
K
U
W
T
T
M
Q
L
E
G
F
A Oil Fill/Dipstick B Oil Fill/Dipstick Tube C Oil Filter D Oil Drain Plug
E Air Cleaner Adapter F Intake Manifold G Intake Manifold Nut H
Standard Air Cleaner
Cover
I Precleaner J Paper Element K
PRO Air Cleaner
Cover
L Fuel Filter
M Pulse Line N Outlet Fuel Line O
Line Retained in
Housing
P Fuel Pump
Q Fuel Pump Bracket R Inlet Fuel Line S Blower Housing T
Blower Housing to
Closure Plate
Screw
U Fixed Guard Screw V Fixed Guard W
Blower Housing to
Adapter Screw
