Kohler KS595 - Engine Dimensions-PTO Side

7
Specifi cations
22 690 01 Rev. -- KohlerEngines.com

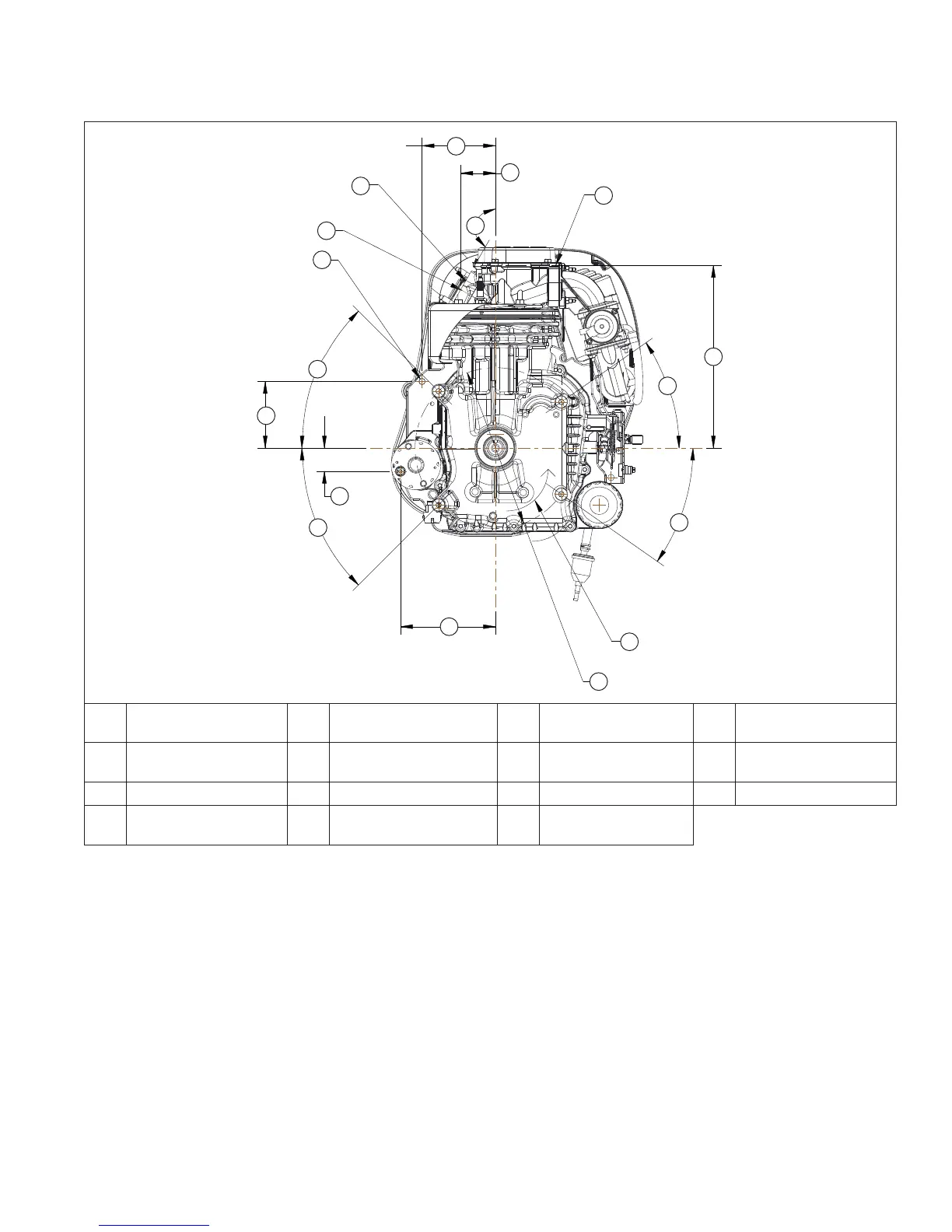

Engine Dimensions-PTO Side
F
E
G
H
I
K
A
B
D
C
J
L
M
N
O
F
J
A 116.0 mm (4.57 in.) B 55.0 mm (2.17 in.) C 150° D
Accessory Mounting
Surface
E
2 X 288.8 mm
(11.37 in.)
F 35° G Rotation Direction H
Ø 254.0 mm
(10.00 in.)
I 150.2 mm (5.91 in.) J 45° K 36.6 mm (1.44 in.) L 105.2 mm (4.14 in.)
M
Ø 9.7 mm (0.38 in.)
Lifting Point
N Exhaust Port Axis O
Exhaust Flange
Mounting Surface
