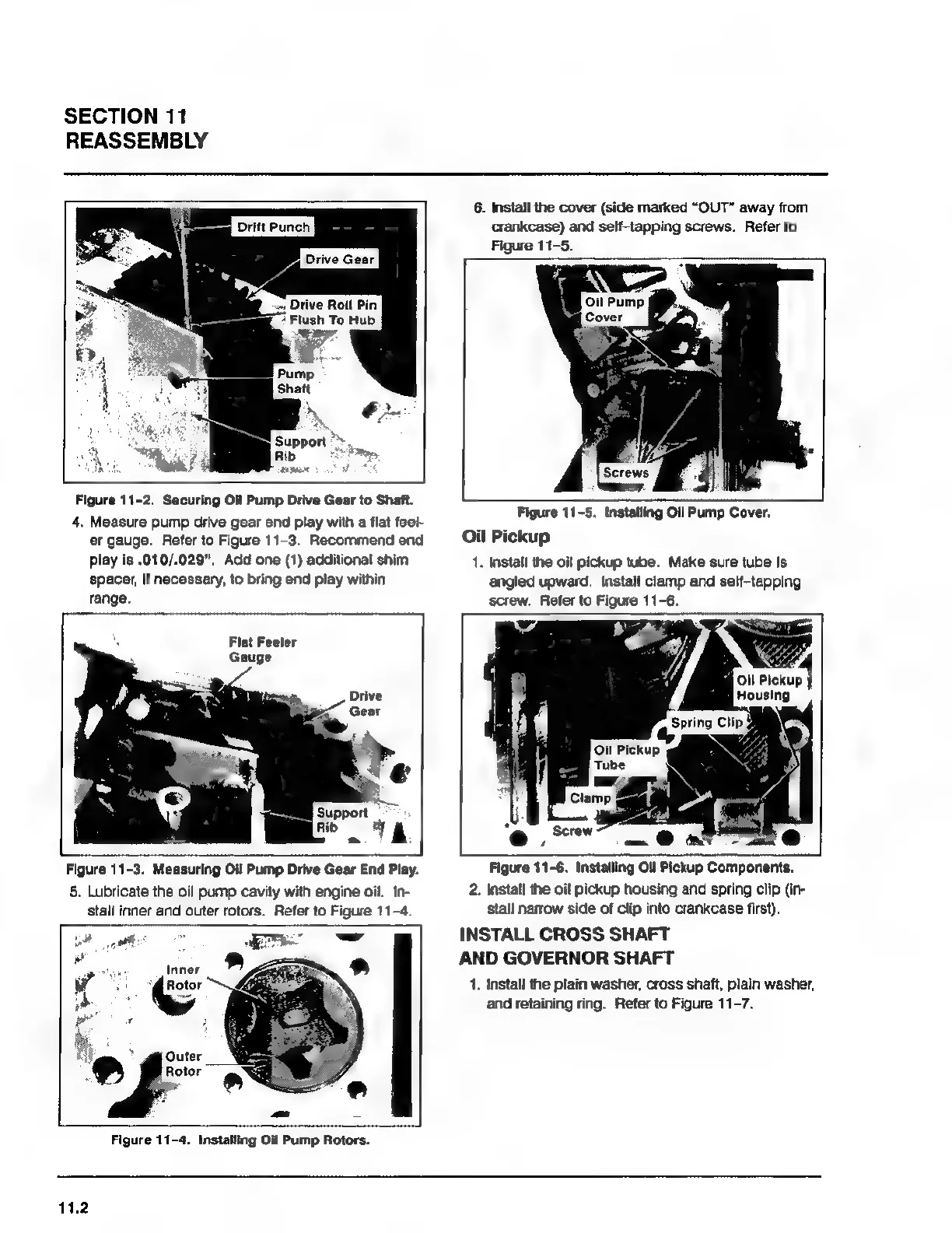

SECTION 11
REASSEMBLY
Figure 11-2. Securing Ой Pump Drive Gear to Shaft.
4. Measure pump drive gear end play with a flat feel-
er gauge. Refer to Figure 11-3. Recommend end
play is .010/.029", Add one (1) additional shim
spacer, if necessary, to bring end play within
range.
6. Install the cover (side marked “OUT” away from
crankcase) and self-tapping screws. Refer to
Figure 11-5.
Figure 11-5. Installing Oil Pump Cover.
Oil Pickup
1. Install the oil pickup tube. Make sure tube is
angled upward. Install clamp and self-tapping
screw. Refer to Figure 11-6.
oil rms
Figure 11-3. Measuring Oi! Pump Drive Gear End Play.
5. Lubricate the oil pump cavity with engine ой, In-
stall inner and outer rotors. Refer to Figure 11-4.
Figure 11-4. Installing Oil Pump Rotors.
11.2
Figure 11-6. Installing ОЙ Pickup Components.
2. Install the oil pickup housing and spring clip (in-
stall narrow side of clip into crankcase first).
INSTALL CROSS SHAFT
AND GOVERNOR SHAFT
1. install the plain washer, cross shaft, plain washer,
and retaining ring. Refer to Figure 11-7.
