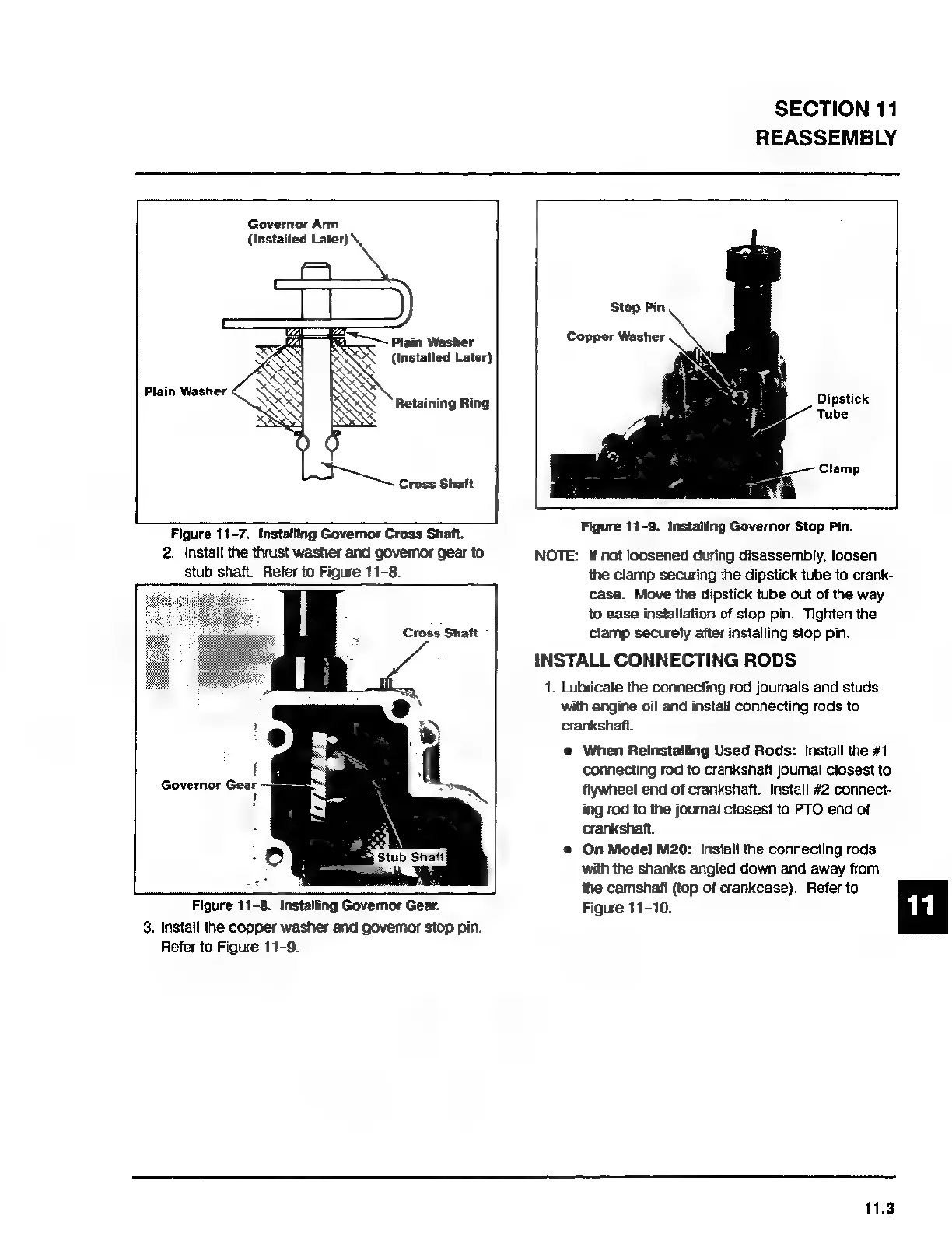

Kohler MAGNUM M18

SECTION 11
REASSEMBLY
Governor Arm
(Installed Later)
LT Plain Washer
(Installed Later)
Plain Washer
Retaining Ring
Cross Shaft
Figure 11-7. Installing Governor Cross Shaft.
2. install the thrust washer and govemor gear to
stub shaft. Refer to Figure 11-8.
Cross Shaft
Governor Gear
!
Figure 11-8. Installing Governor Gear.
3. Instail the copper washer and govemor stop pin.
Refer to Figure 11-9.
Stop Pin
Copper Washer
Dipstick
Tube
Clamp
Figure 11-9. Installing Governor Stop Pin.
NOTE: If nat loosened during disassembly, loosen
the clamp securing the dipstick tube to crank-
case. Move the dipstick tube out of the way
to ease installation of stop pin. Tighten the
clamp securely after installing stop pin.
INSTALL CONNECTING RODS
1. Lubricate the connecting rod journals and studs
with engine oil and instali connecting rods to
crankshaft.
e When Reinstalling Used Rods: Install the #1
connecting rod to crankshaft joumal closest to
flywheel end of crankshaft. Install #2 connect-
ing rod to the journal closest to PTO end of
crankshaft.
* On Model M20: Insiall the connecting rods
with the shanks angled down and away from
the camshaft (top of crankcase). Refer to
Figure 11-10.
