EXIT PARALLEL? This mode can’t be SETUP!!
3-2-3. Measure screen
Touch the icon to enter measure page. Touch the icon or to browse information.
Touch the icon to return to main screen. Touch the icon to go back to previous menu.

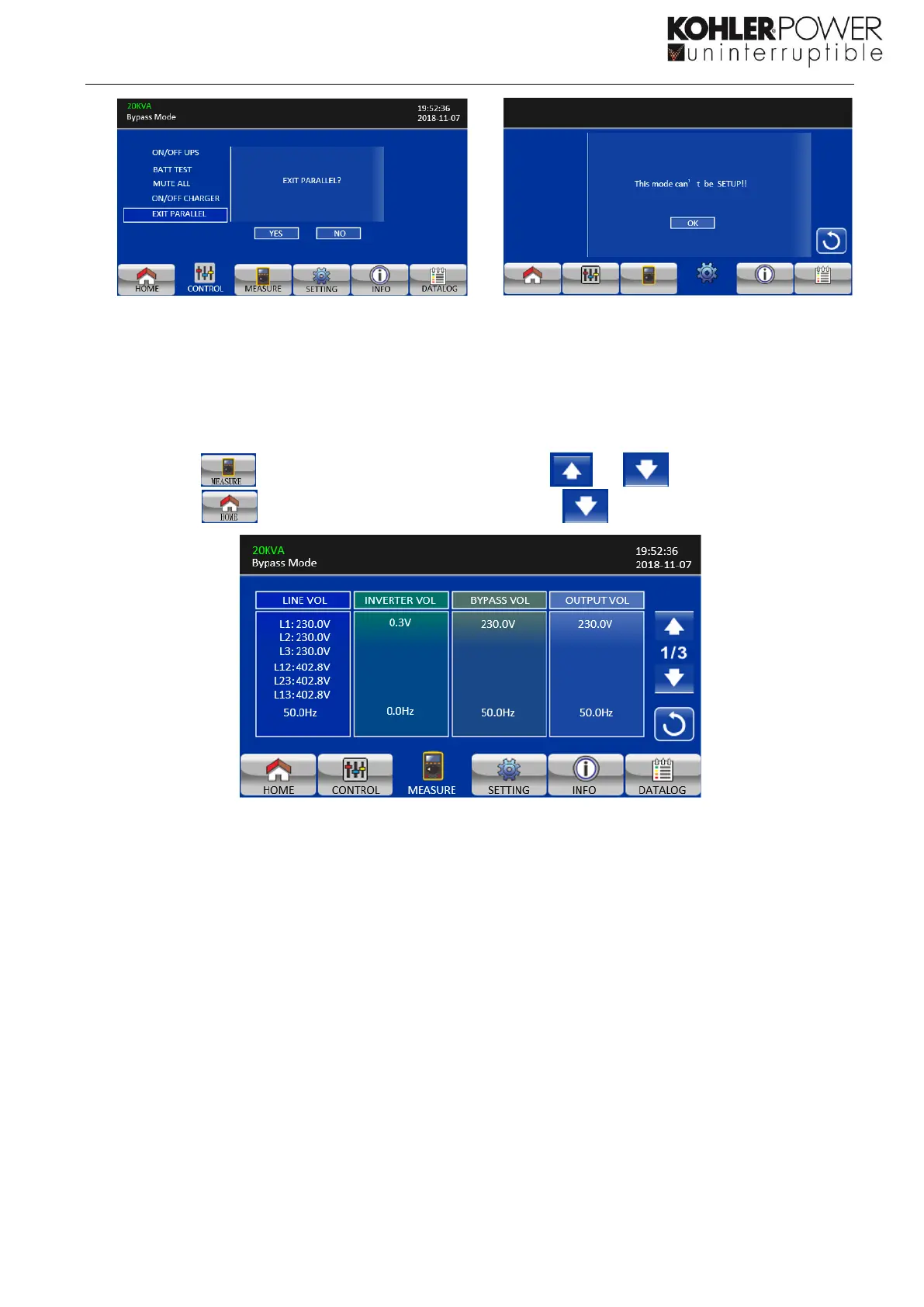

Measure screen page 1
➢ LINE VOL: The real time value of L1, L2 and L3 phase voltage, L1-L2, L2-L3, L3-L1 voltage and input
frequency.
➢ INVERTER VOL: The real time value of L1 inverter voltage and frequency.
➢ BYPASS VOL: The real time value of L1 bypass voltage and frequency.
➢ OUTPUT VOL: The real time value of L1 output voltage and frequency.
To Next Page
