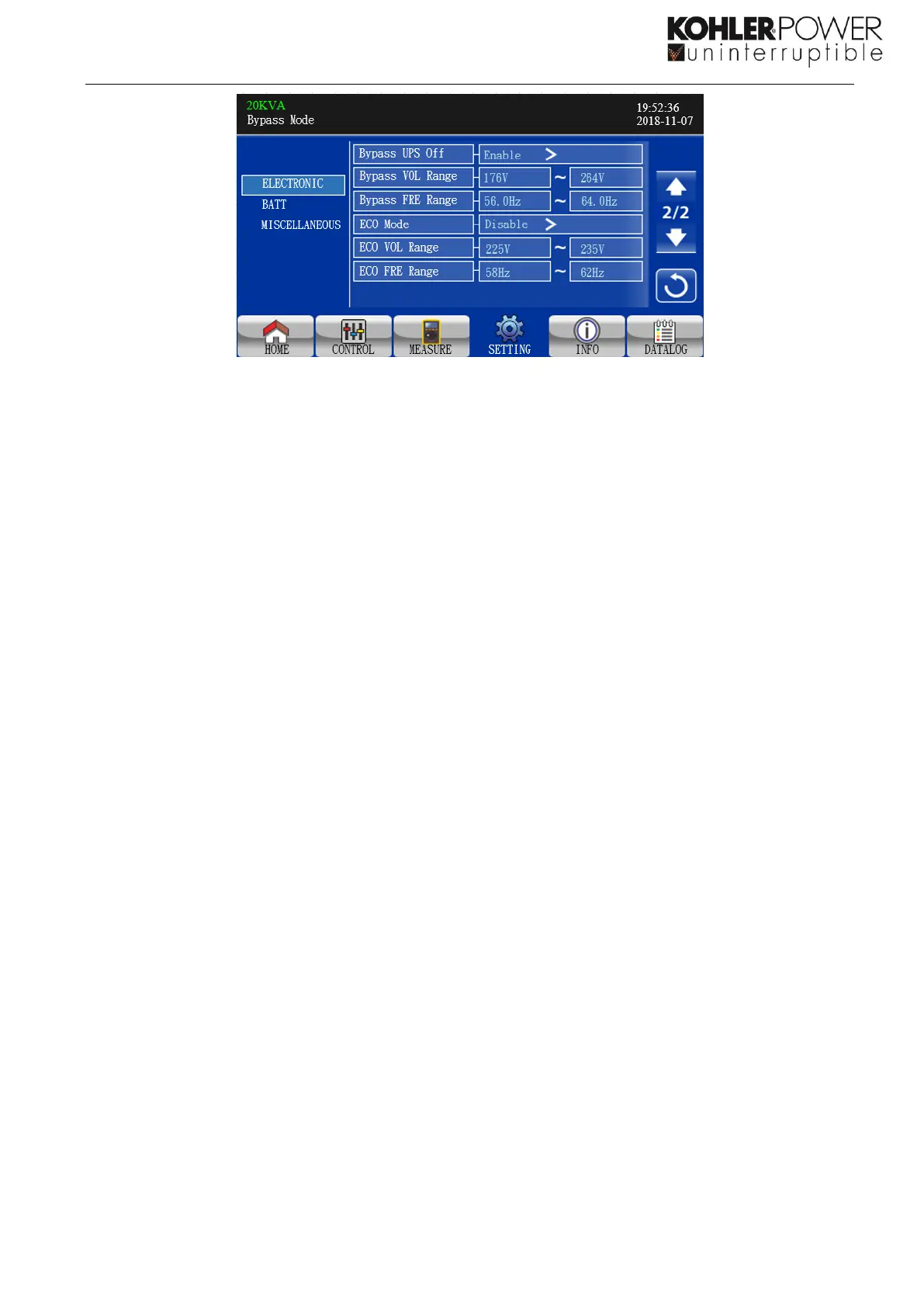

Electrical Setting Page 2
➢ Bypass at UPS off: Select the bypass status when manually turning off the UPS. This setting is only
available when “Bypass forbid.” is set to “Disable”.
◼ Enable: Bypass enabled. When selected, bypass mode is activated.
◼ Disable: Bypass disabled. When selected, no output passes through bypass when manually
turning off the UPS.
➢ Bypass Voltage Range: Set the bypass voltage range.
◼ L: Low voltage point for bypass. The setting range is 176V ~ 209V when UPS is HV system.
◼ H: High voltage point for bypass. The setting range is 231V ~ 264V when UPS is HV system.
➢ Bypass FRE Range: Set the bypass frequency range.
The acceptable bypass frequency ranges from 46Hz to 54Hz when UPS is 50Hz system and from 56Hz
to 64Hz when UPS is 60Hz system.
➢ ECO mode: Enable/Disable ECO mode. Default setting is “Disable”.
➢ ECO Voltage Range: Set the ECO voltage range.
◼ L: Low voltage point for ECO mode. The setting range is from “Rated output voltage – 5V” to
“Rated output voltage - 11V”. “Rated output voltage – 5V” is default setting.
◼ H: High voltage point for ECO mode. The setting range is from “Rated output voltage + 5V” to
“Rated output voltage + 11V”. “Rated output voltage + 5V” is default setting.
➢ ECO FRE Range: Set the ECO frequency range. The setting range is from 46Hz to 54Hz when the UPS
is 50Hz system and from 56Hz to 64Hz when the UPS is 60Hz system.
