Electrical System
10
37 690 01 Rev. --KohlerPower.com

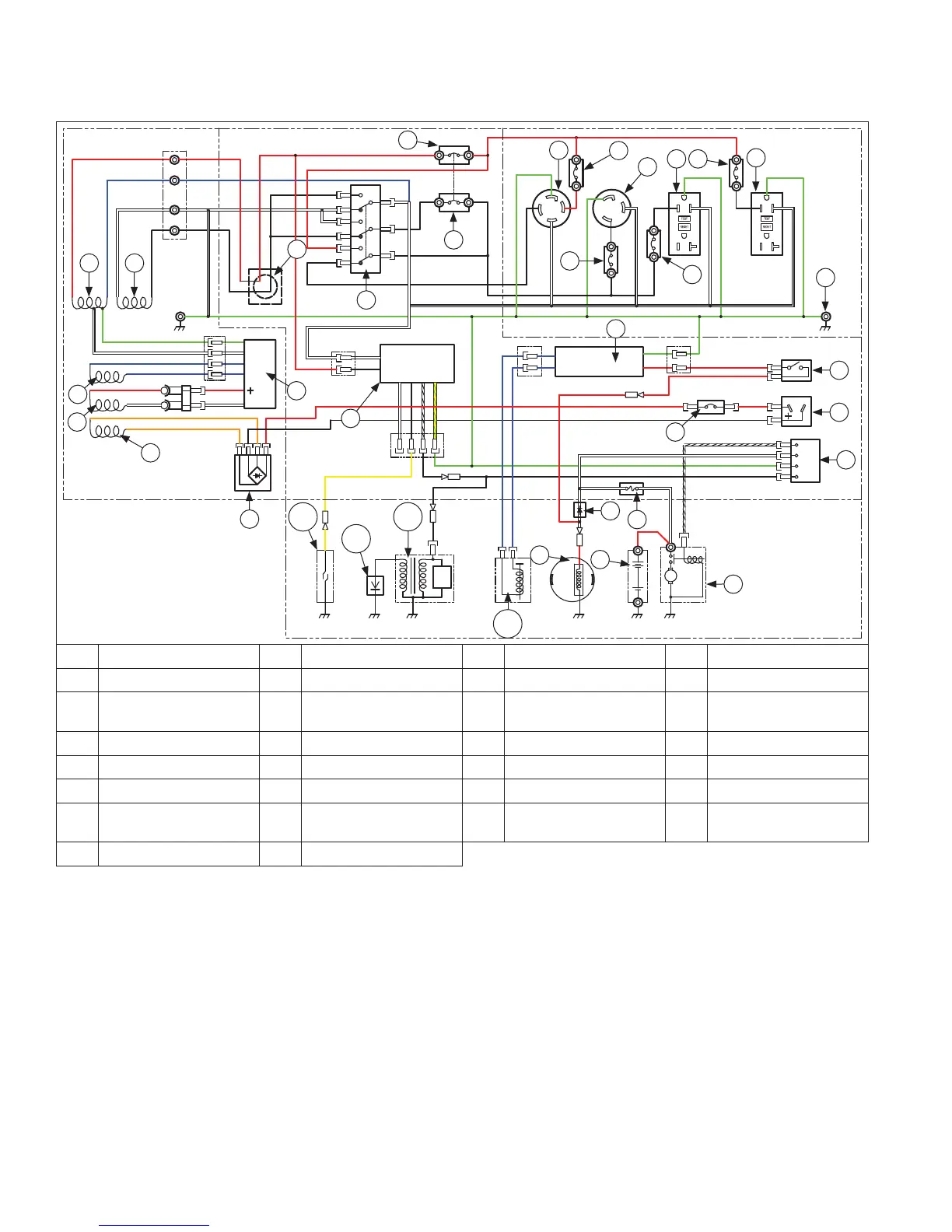

PRO 5.2 E Wiring Diagram
M
H
L
C
I
J
M
K
H
U
K
N
R
BA
G
X
S
E
L
D
F
O
P
Q
T
Z
Y
V
W
L
AA
AB
AC
AD
A Main Winding 1 B Main Winding 2 C Exciter Field Coil D Sub Coil
E DC Winding F Auto Idle Coil G Voltage Selector H Circuit Breaker
I
240/120V/30A
Electrical Socket
J
120V/30A
Electrical Socket
K GFCI Receptacle L Circuit Protector 20A
M Circuit Protector 30A N Ground Terminal O Auto Throttle Switch P 12V DC Receptacle
Q On/Off/Start Switch R Auto Idle Module S Maintenance Minder T AVR
U Rectifi er V Diode W Battery Fuse X Starter Motor
Y 12 Volt Battery Z Stator AA
Electronic Throttle
Control
AB Ignition Coil
AC Spark Plug AD Oil Sentry
™
To Next Page
