Kohler PRO 7.5 Service Manual

937 690 01 Rev. -- KohlerPower.com
Electrical System

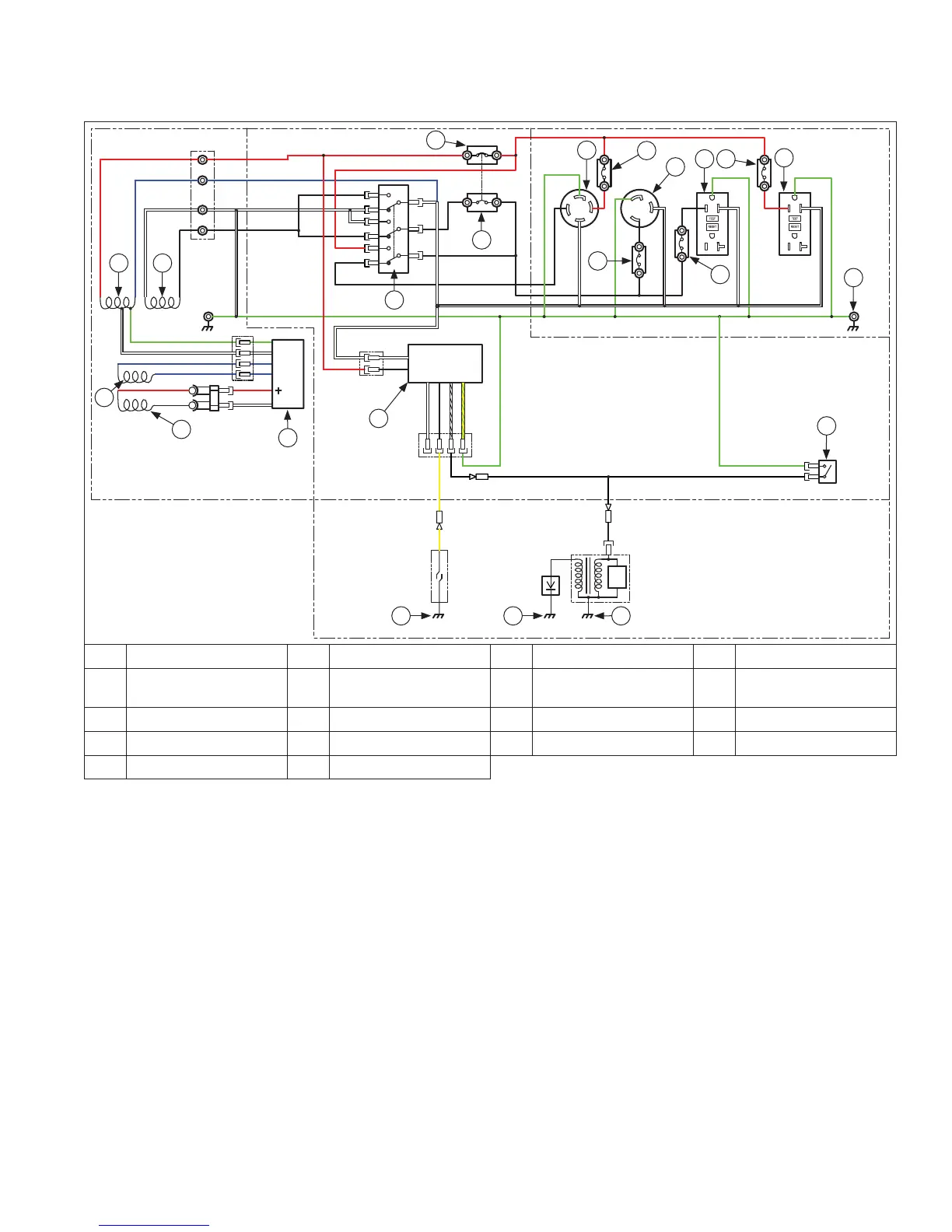

PRO 5.2 Wiring Diagram
P Q
K
F
J
C
G
H
K
I
F
O
I
L
M
BA
E
R
N
D
J
A Main Winding 1 B Main Winding 2 C Exciter Field Coil D Sub Coil
E Voltage Selector F Circuit Breaker G
240/120V/30A
Electrical Socket
H
120V/30A
Electrical Socket
I GFCI Receptacle J Circuit Protector 20A K Circuit Protector 30A L Ground Terminal
M Engine Switch N Maintenance Minder O AVR P Oil Sentry
™
Q Spark Plug R Ignition Module
