Kohler PRO 7.5 Service Manual

Troubleshooting
8 37 690 01 Rev. --KohlerPower.com

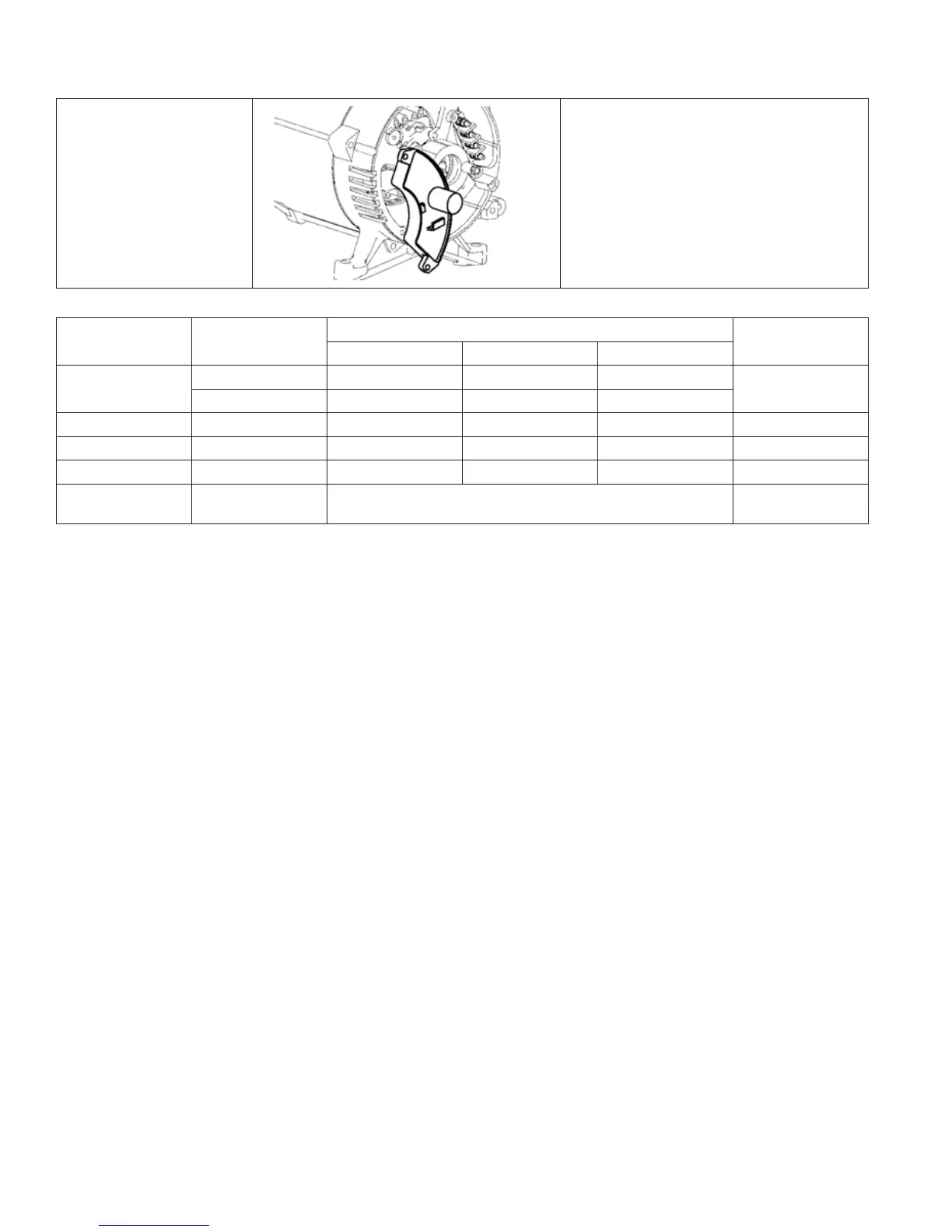

Replace AVR
With engine stopped, replace AVR with a
new AVR. Start engine and adjust trimmer
on back of AVR. Test terminal voltage.
Voltage should be between 95-135V. If
voltage is met, original AVR is not adjusted
properly or faulty. Replace as necessary. If
voltage not met, check circuit breakers and
receptacles.
Unit Item
Generator Spec.
REMARK
GEN 5.0 PRO5.2/5.2E PRO7.5/7.5E
Main Winding
Red-Blue 0.37Ω±10% 0.27Ω±10% 0.13Ω±10%
Red-White
(PRO 7.5 E)
White-Black 0.37Ω±10% 0.27Ω±10% 0.13Ω±10%
Field Winding Between slip ring 47.9Ω±10% 46.6Ω±10% 56.4Ω±10%
Exciter Winding Blue-Blue 1.30Ω±10% 1.60Ω±10% 1.02Ω±10%
DC Winding Orange-Orange - 0.10Ω±10% 0.08Ω±10%
Brush Length 9mm
Service limit:
5mm
NOTE: Alternator should not be in contact with panel, AVR, etc during above resistance tests. Alternator should be
tested at room temperature.
