5
KOLDWAVE KOMPAC SERIES (KOOLETTE, KOMPAC, AND KING KOMPAC)
Service Cord
The six ft. long service cords employed in the Kompac
Series units have plug configurations and receptacle
requirements as shown in the chart below.

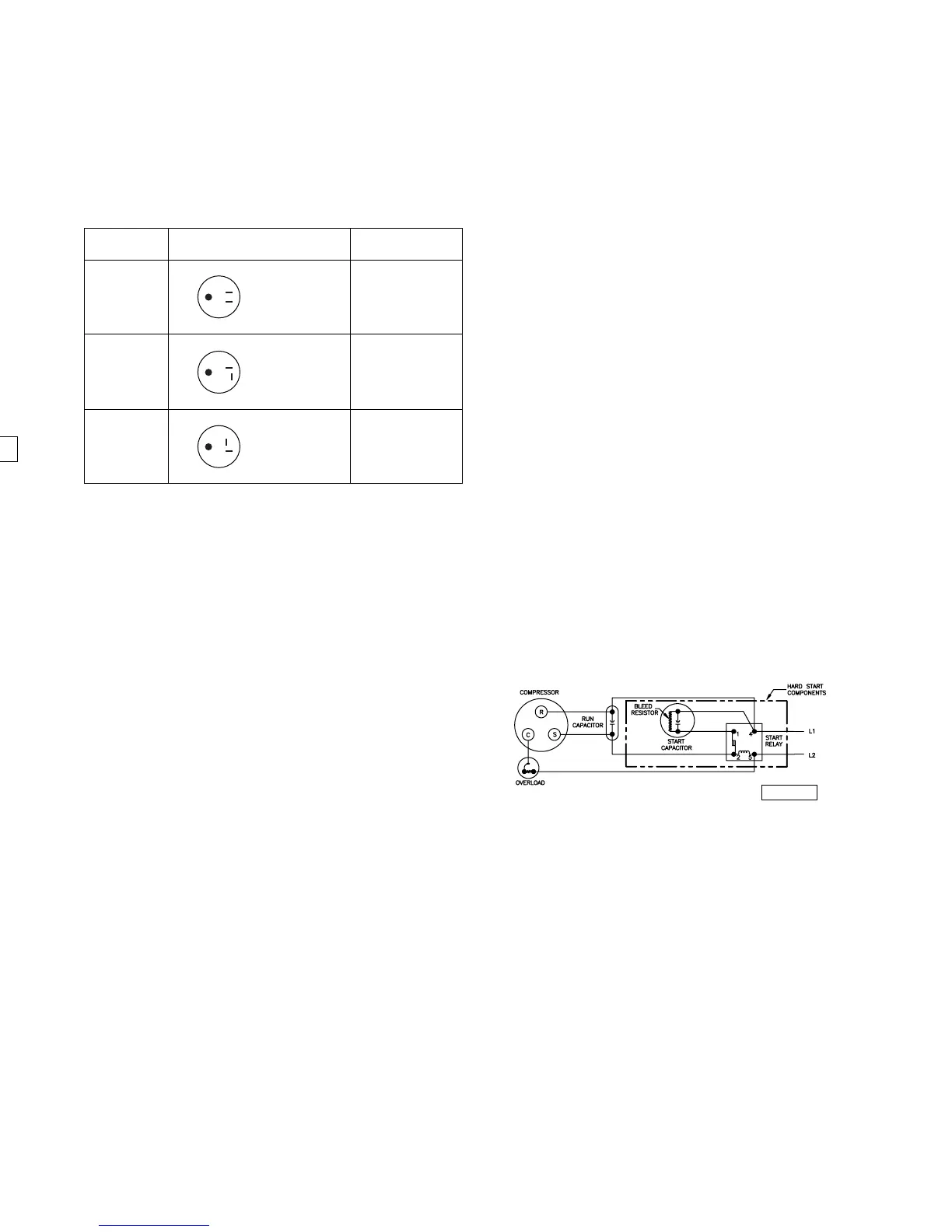

ELECTRICAL SERVICE PLUG CONFIGURATION
Conditioner
Model Plug Configuration Receptacle
2K07-14DB 15A - 125V
115V Nema 5 - 15P
Nema 5 - 15R
2K16DB 20A - 125V
115V Nema 5 - 20P
Nema 5 - 20 R
2K10-26DB 20A - 250V
208/230V Nema 6-20P
Nema 6 - 20R
OPTIONAL FEATURES
Hose Kit
When employing one of The 7′, 20′ or 40′ reinforced
plastic HK22 hose kits in applications with water
pressures exceeding 50 PSIG, a water pressure
reducing valve must be installed in the water supply
line prior to the hose kit; otherwise warranty of the
hose kit will be void. The water-out and condensate
lines of the three-section flexible plastic hose can be
fed to a sink or permanent drain. Additional hose kit
fittings and washers are provided to fit most water
faucets. When using a hose kit, avoid sharp corners
hot water pipes, and kinking or close bends to ensure
proper water flow of the supply and return lines.
Cupro-Nickel Condenser
When using chemicals to treat water in cooling tower
applications or when water contains process
contaminants, it is recommended that the air
conditioner be equipped with a 90/10 Naval Spec.
Cupro/nickel condenser.
High Pressure Water Valve
High pressure water regulating valves, designed for
use with up to 350 PSI water inlet pressure, are
available.
Treated Evaporator Coils
For air conditioning applications where airborne
contaminants are a problem, acrylic coated evaporator
coils are recommended to guard against pitting or
corrosion.
Hard Start Kit
A hard start kit consists of a start capacitor and
potential relay. The kit is available for all models when
they are expected to operate at low voltages and/or
ambient temperatures which drive up the equalization
pressure in the compressor. Compressors used by
Koldwave are designed to operate on 115 and 208/230
volts ± 10%.
Starting Component Wiring Diagram
0240019A
