KOLDWAVE KOMPAC SERIES (KOOLETTE, KOMPAC, AND KING KOMPAC)
INSTALLATION INSTRUCTIONS
Before installing: Check the air conditioner for any
shipping damage. Air conditioners are thoroughly
inspected at the factory and carefully packed. If any
damage is evident, file a claim with the delivering
carrier immediately.
Electrical Requirements
Check the data plate on the back of the unit to make
certain that the proper power is available. Refer to the
“Specifications” section for voltage and fuse
requirements. Check for proper wall outlet as
described in “Standard Features”. Operating the unit
on improper voltages will void the warranty.
CAUTION: The use of an extension cord rated at
least 15 amps at 115 volts for (2K07-14D); 20 amps
at 115 volts for (2K16D); 20 amps for (2K10-26D) at
250 volts and with grounding-type attachment plug,
and grounding-type connector (load fitting) may be
used.
Koolette Kompac King Kompac
Water Fitting Location
Prior to placing the air conditioner in the desired
position, note the exact location of the water fittings on
the valve plate on the unit rear panel. Water lines
should be securely attached to water valve plate
fittings. Be sure the line attached to the water source is
also attached to the “WATER IN” connection of the
unit.

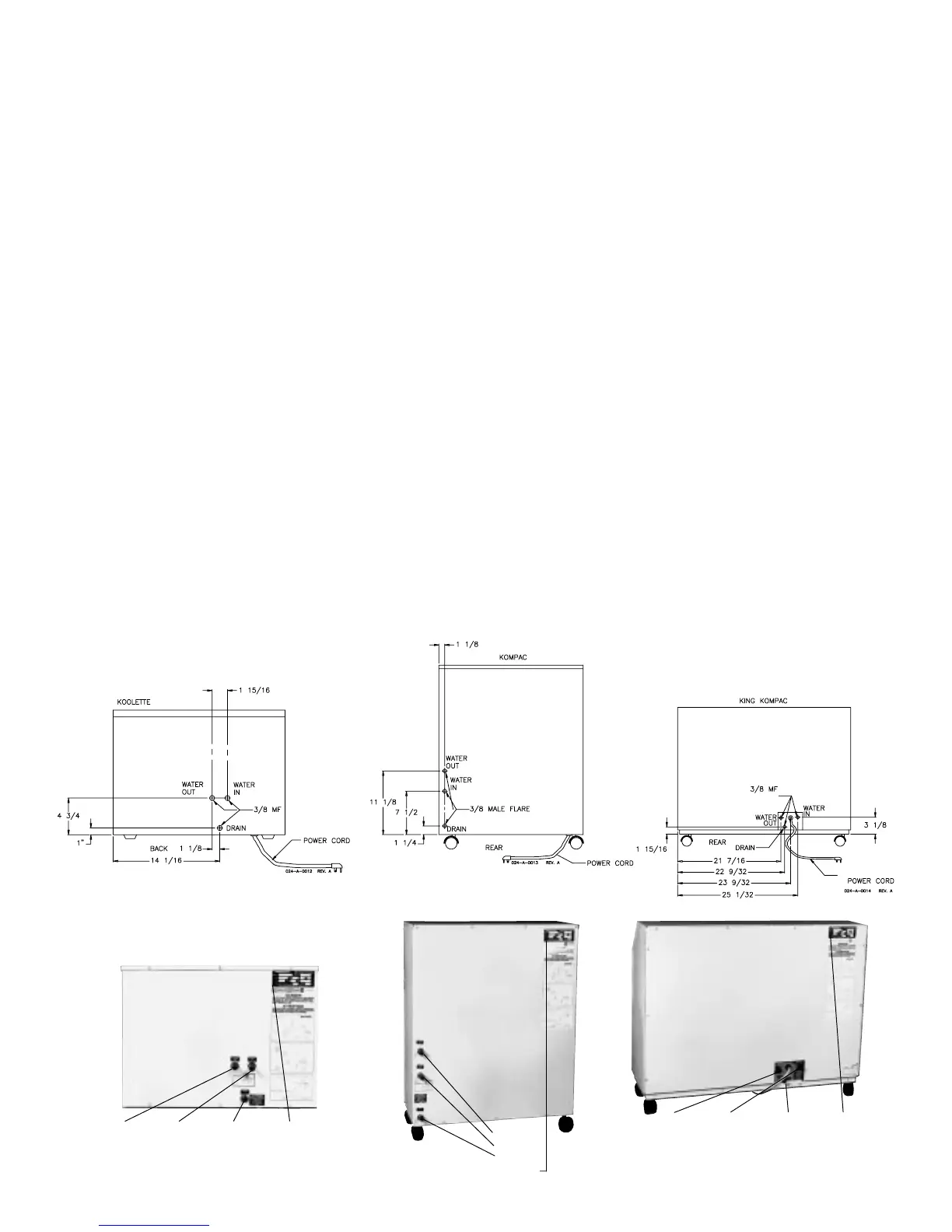

Refer to diagrams and photographs below when
installing unit.
Water Out Water In Drain Data Plate
Water Out
Water In
Drain
Data Plate
Water Out Water In Drain Data Plate
