KOLDWAVE KOMPAC SERIES (KOOLETTE, KOMPAC, AND KING KOMPAC)
MODES OF OPERATION
Kompac Series conditioners are available in either a
“Cooling Only” or “Cooling/Heating” Model.

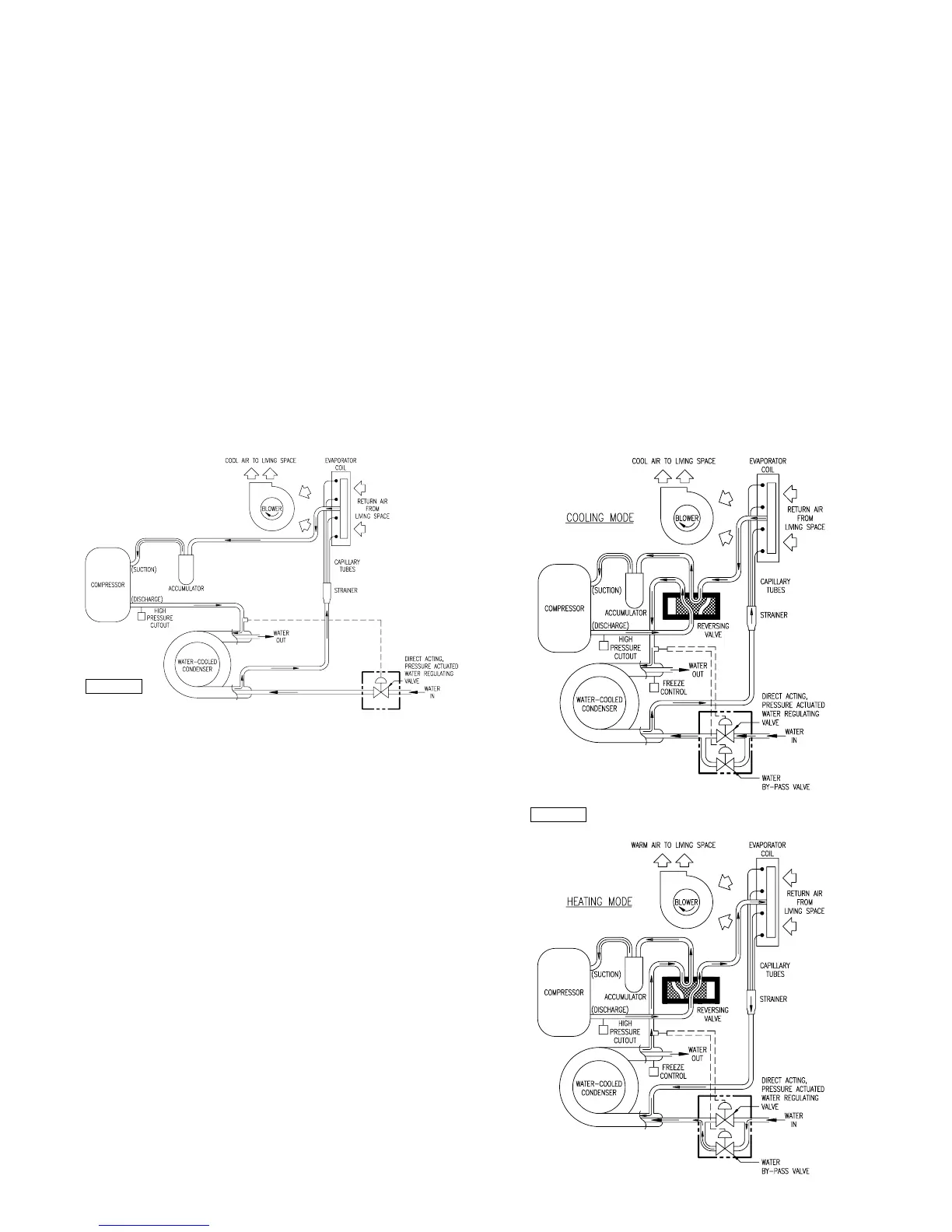

The “Cooling” mode directs refrigerant from the
compressor to the water-to-refrigerant condenser
when the dry bulb temperature is above the desired
thermostat setting.
Cooling Only Unit
The Heat Pump Model operates in the cooling or
heating modes, depending on thermostat command. A
solenoid activated, reverse-cycle valve controls the
flow of refrigerant gas through the unit. In the cooling
mode, the solenoid is de-energized and the refrigerant
is directed from the compressor to the water-to-
refrigerant condenser. If heating is required, the
solenoid coil is energized, reversing the cycle and
directing refrigerant from the compressor to the air-to-
refrigerant condenser, i.e., air-to-refrigerant evaporator
in the cooling mode.
Heat Pump Unit
0240025A
0240023A
