KOLDWAVE KOMPAC SERIES (KOOLETTE, KOMPAC, AND KING KOMPAC)
WATER FLOWS AT VARIOUS
ENTERING WATER TEMPERATURES
The rated water flow rate at 85°F entering water
temperature (E.W.T.) is given in the specification chart
earlier in this manual. Water flow rates in that chart
will be significanly different from rated water flow at
other entering water temperatures. The variance from
rated water flow rate is found using the graph below.
Using your actual E.W.T., multiply the percentage by
the condenser flow rate at 85°F E.W.T. to obtain the
actual water flow rate required.
For Example:
What is the actual condenser water flow rate at 50°F
E.W.T. (2K14D)?
1. The condenser water flow rate at 85°F E.W.T. is 3.0
G.P.M. from the Water Flow chart.
2. At 50°F E.W.T., the water flow rate percentage
would be 25% as seen on the graph.
3. Multiply .25 by 3.0 G.P.M. to get an actual water
flow rate of 0.75 G.P.M.

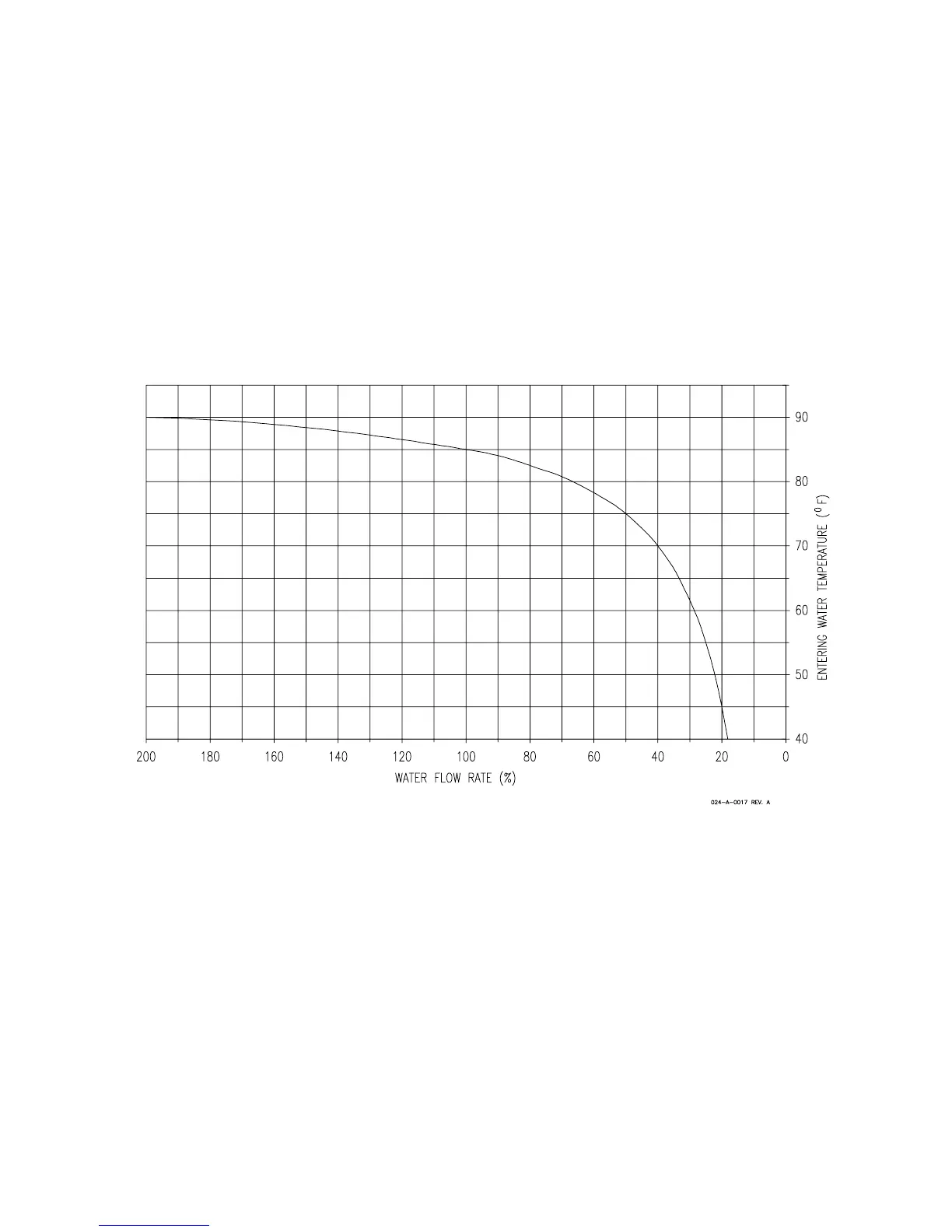

Water Flow Chart
