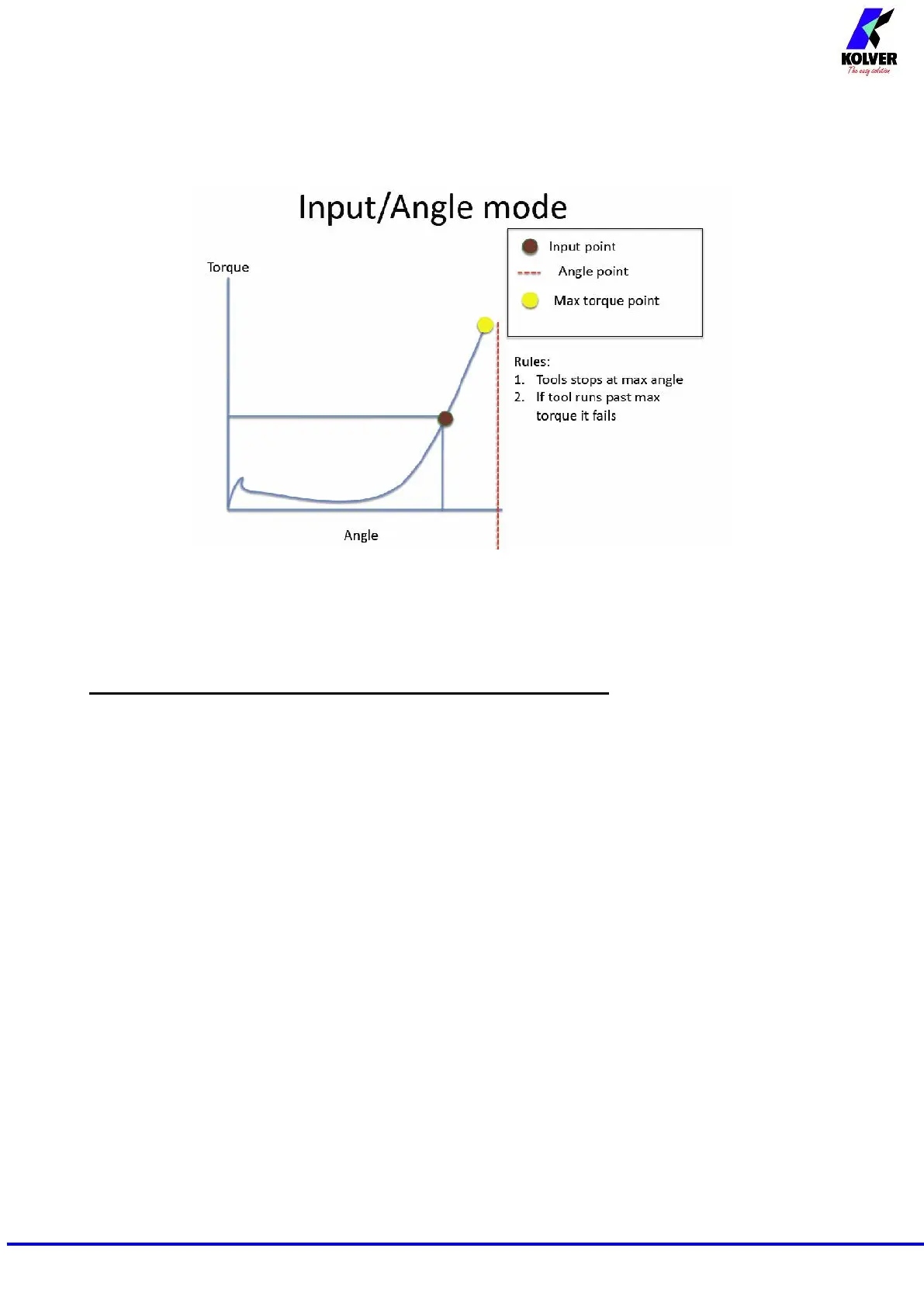

ANGLE/INPUT (A/IN): The threshold can’t be set by the operator: in fact the value is the result of
an external impulse through a proper contact (see paragraph “connections”).
This function can be very useful if the operator wants the screw to rotate a certain number of
degrees after reaching a position indicated by a precision instrument.
ANGLE/LEVER (A/LV): the threshold torque value can’t be set by the operator and the angle value
that appears on the display corresponds to the angle that is carried out starting from the moment in
which the lever is pressed.
INTERPRETATION OF ACOUSTIC SIGNALS
The control unit emits sounds which help you understand if the screwing has been carried out correctly or
not. When the torque is reached meeting all the parameters set, the control unit utters a 0.5 sec beep as
confirmation. In case of Program End, the unit will utter other two beeps. On the other hand, torque reached
under min time, during the Ramp time or under the Fast Speed (see error signals on the display) will cause
the control unit to utter three beep sounds.
