Kolver FAB Series

Manual EDU 2AE/TOP e EDU 2AE/TOP/TA Rev.1.1 Page 18

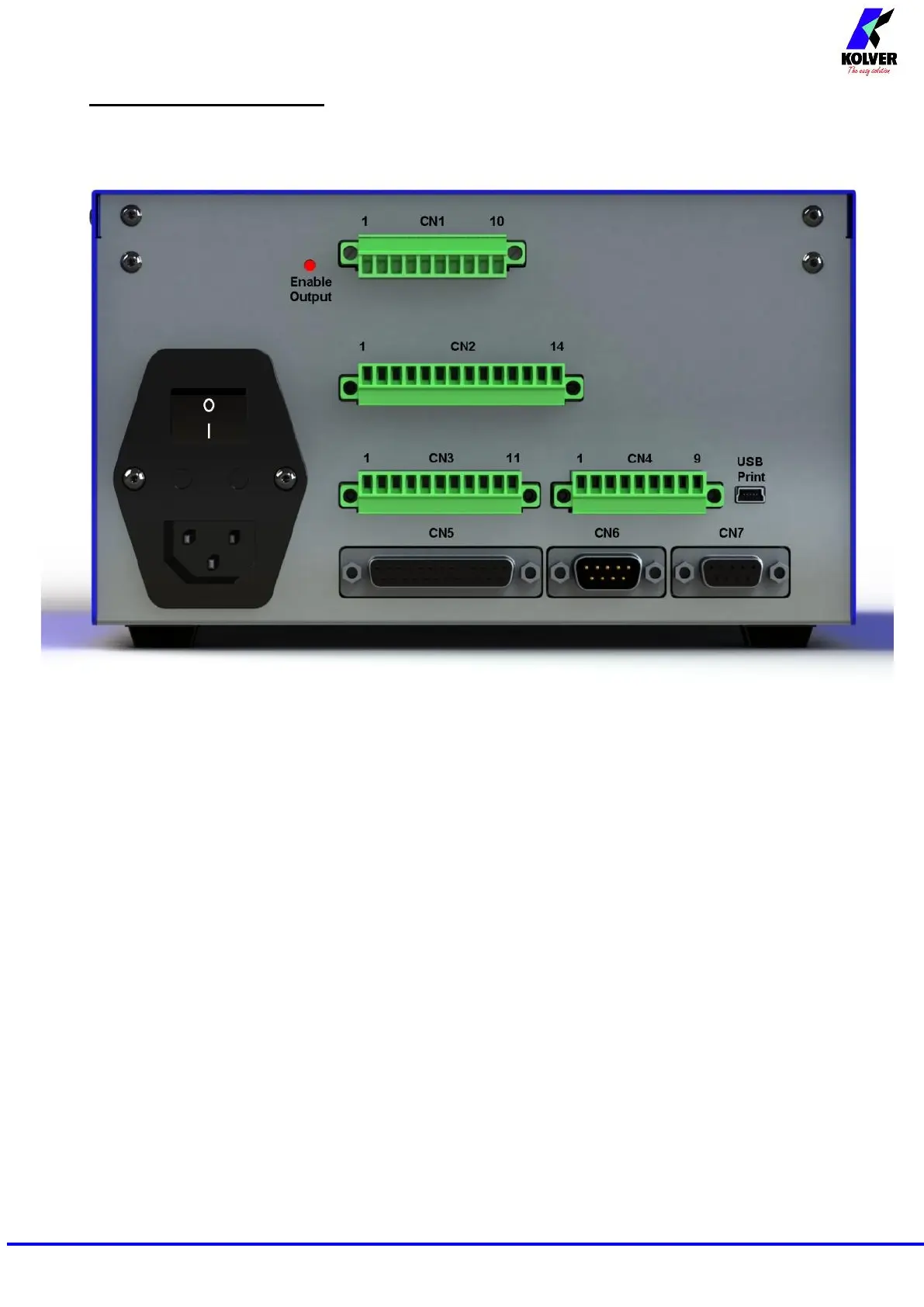

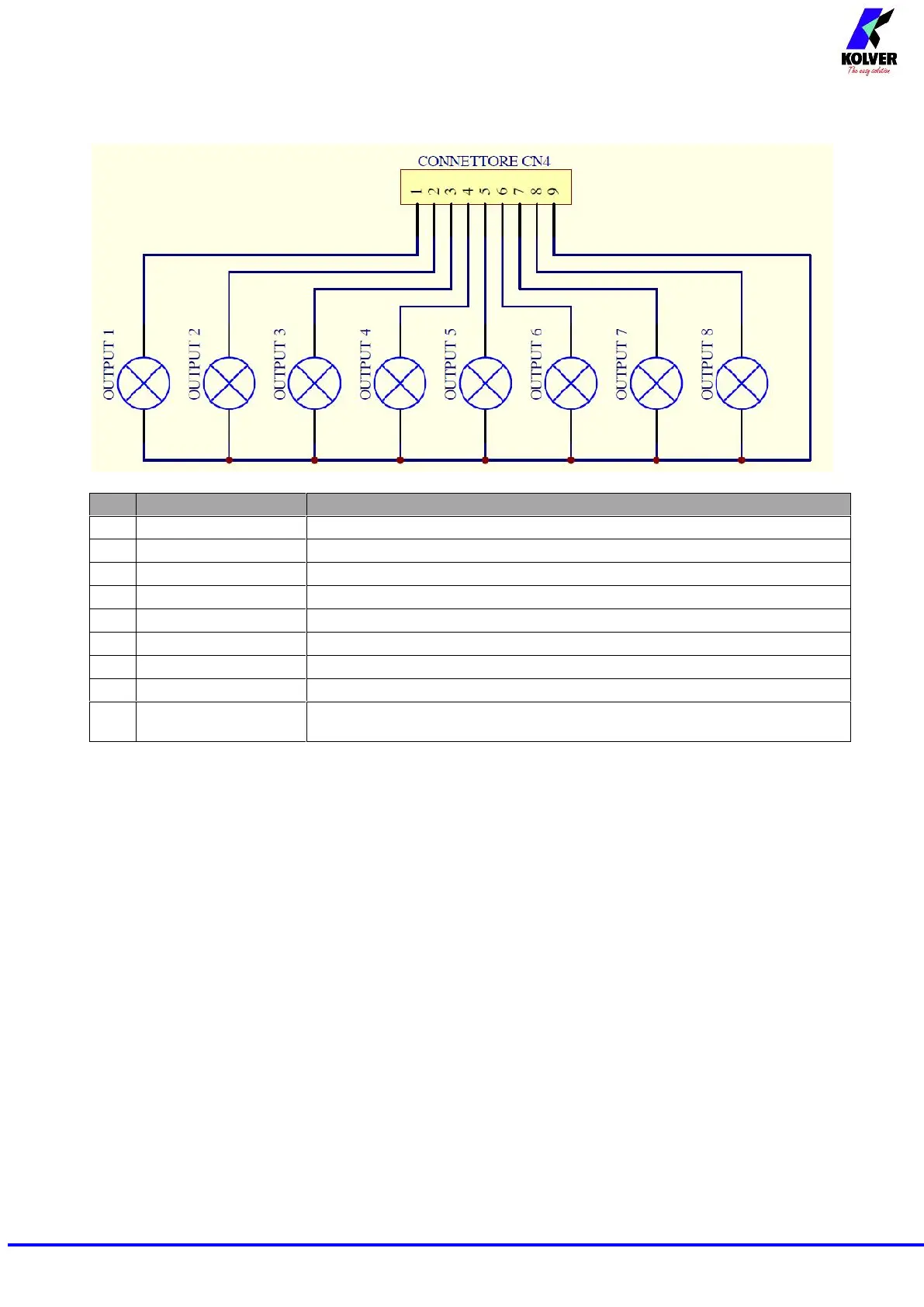

 CN4 CONNECTOR – 9 pins::
All of the following pins are output.
PIN
NAME
FUNCTION
1
OUTPUT 1
It indicates you’re using program 1
2
OUTPUT 2
It indicates you’re using program 2
3
OUTPUT 3
It indicates you’re using program 3
4
OUTPUT 4
It indicates you’re using program 4
5
OUTPUT 5
It indicates you’re using program 5
6
OUTPUT 6
It indicates you’re using program 6
7
OUTPUT 7
It indicates you’re using program 7
8
OUTPUT 8
It indicates you’re using program 8
9
COM0VDC
Common to every output. Signals have to be enabled making contact
between the desired signal and this pin (common 0VDC) .
