INTENDED USE 1
USE OF MACHINE 1
This Komatsu machine is designed to be used mainly for the following work:
q Dozing
q Smoothing
q Cutting into hard or frozen ground or ditching
q Felling trees, removing stumps
See the section “WORK POSSIBLE USING BULLDOZER (3-88)“ for further details.
GENERAL VIEW AND DIRECTIONS OF MACHINE 1
In this manual, the directions of the machine (front,rear,left,right) are determined according to the view from the
operator's seat in the direction of travel (front) of the machine.

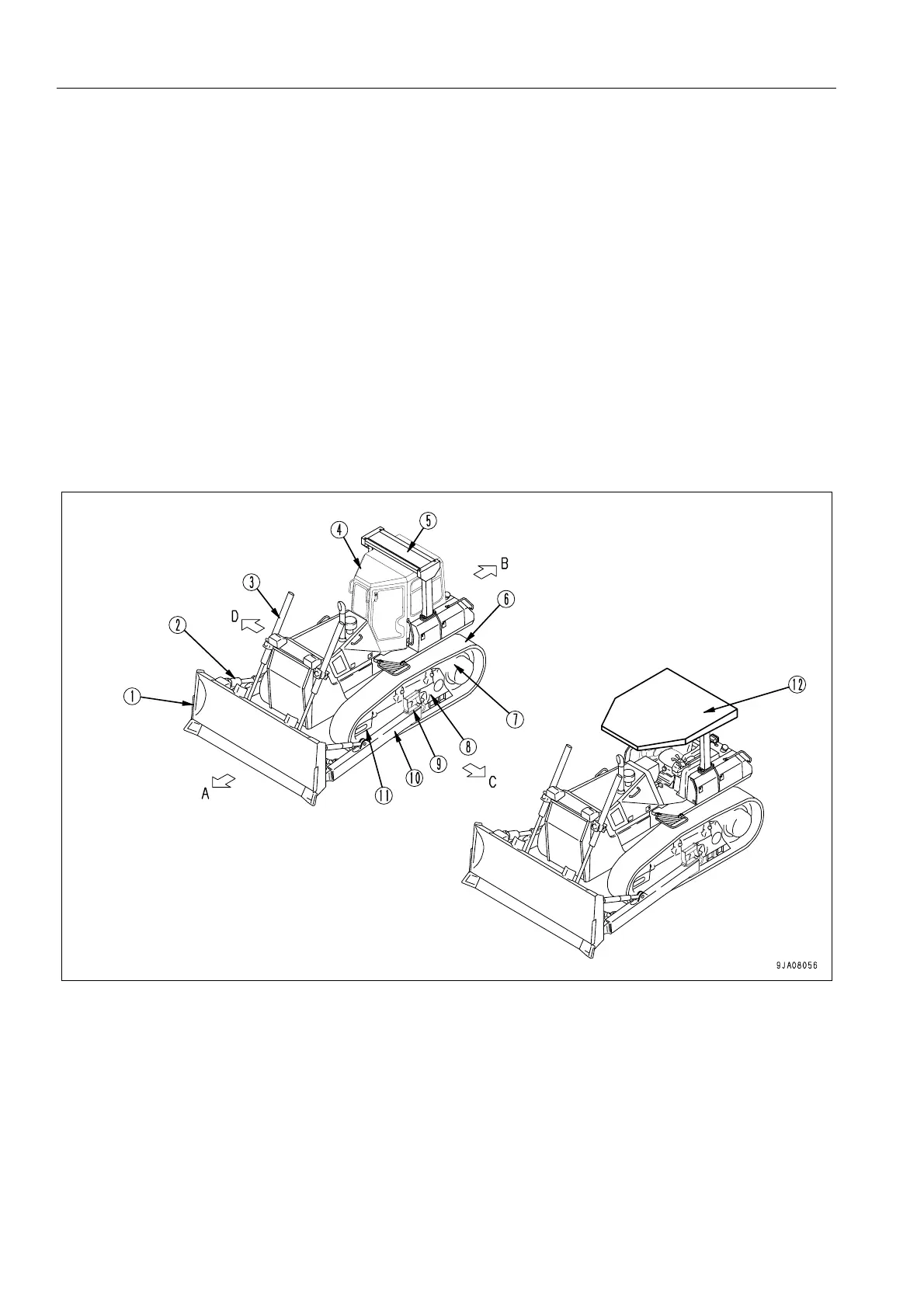

(1) Blade (7) Sprocket
(2) Tilt cylinder (8) Track frame
(3) Lift cylinder (9) Step
(4) Cab (10) Frame
(5) ROPS guard (11) Idler
(6) Track shoe (12) ROPS canopy
(A) Front (C) Left
(B) Rear (D) Right
