EXPLANATION OF COMPONENTS OPERATION
3-22
q When display panel B (multi-information) is in the maintenance mode
t position: Cancel or reset to operation mode
U position: Confirms selection or selected item
For details, see “METHOD OF USING MAINTENANCE MODE (3-22)“.
METHOD OF USING MAINTENANCE MODE 3

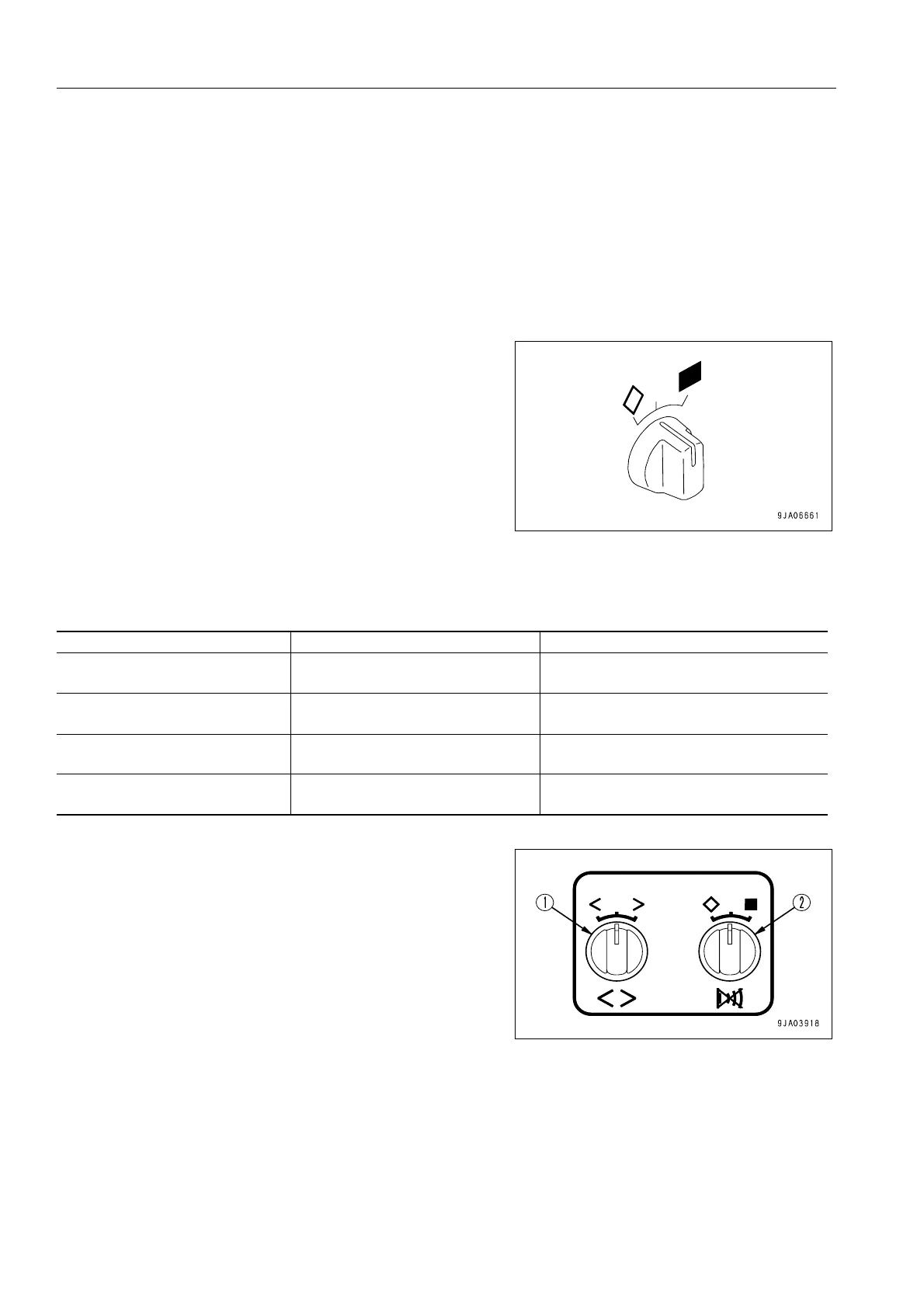

To switch from the operation mode to the maintenance mode,
turn the buzzer cancel switch to the U position and hold it
there for at least 2.5 seconds. The screen will switch to the
maintenance mode.
On the first screen, the oil and filter maintenance mode is dis-
played.
EXPLANATION OF MODES AND OPERATION
The maintenance mode has the following 4 sub modes.
Use information switch (1) and buzzer cancel switch (2) to
operate each mode.
Sub mode Function Reference items
Oil/filter maintenance mode
Oil or filter replacement time is dis-
played
METHOD OF USING OIL AND FILTER
MAINTENANCE MODE (3-23)
PM clinic auxiliary mode
The engine RPM and battery volt-
age are shown.
METHOD OF USING PM CLINIC AUXIL-
IARY MODE (3-25)
Fault code display mode
Fault codes for electronic control
related parts are displayed
METHOD OF USING FAULT CODE DIS-
PLAY MODE (3-26)
Adjustment mode Adjusts monitor brightness, etc.
METHOD OF USING USER ADJUST
MODE (3-26)
To Next Page
