OPERATION EXPLANATION OF COMPONENTS
3-45

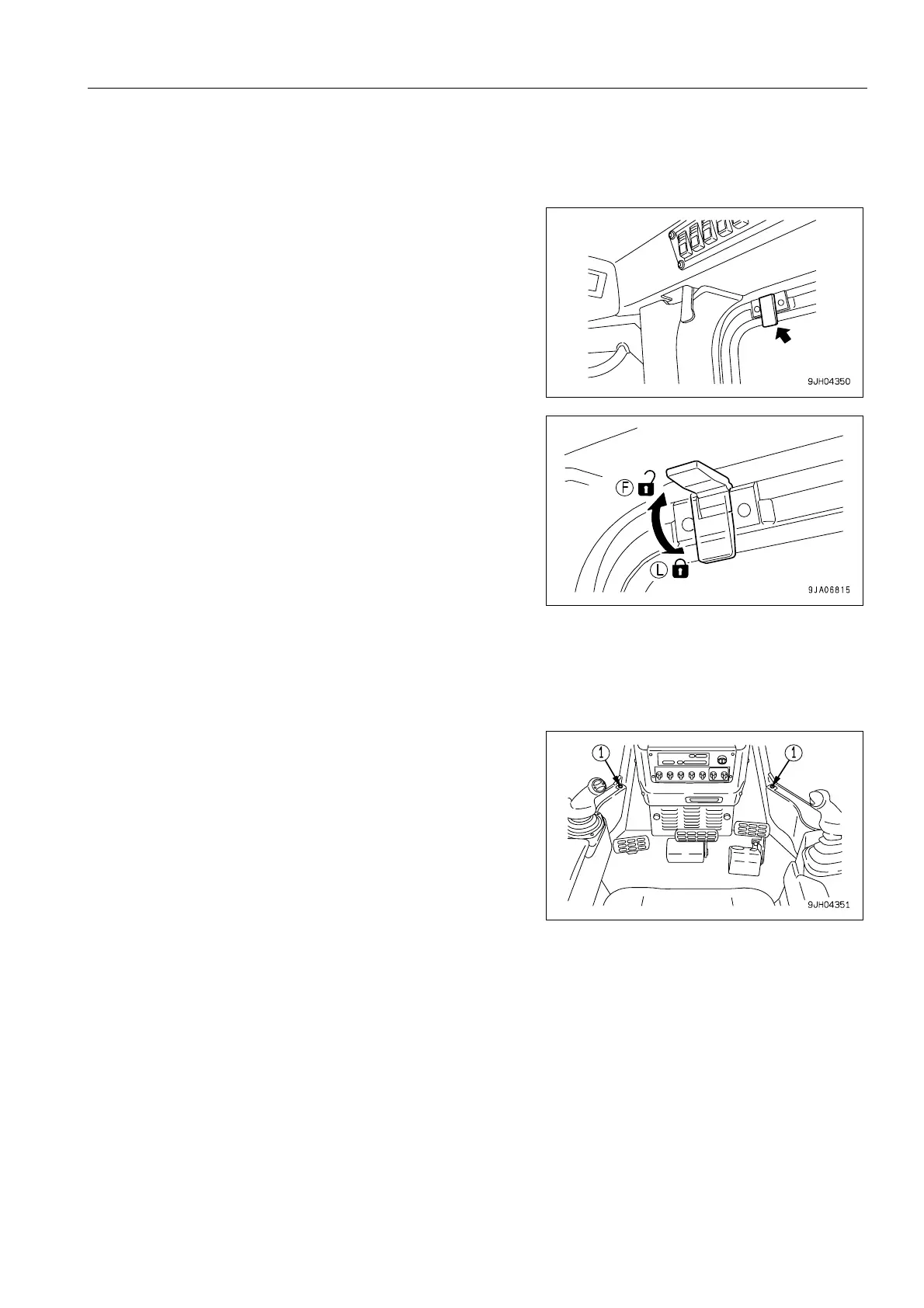

SASH GLASS INTERMEDIATE LOCK 3
(Machine equipped with cab)
When working with the cab sash glass open, use this lock to
prevent the glass from chattering.
q When the lever is in the FREE position (F), the glass can
be opened or closed.
q When the lever is in the LOCK position (L), the glass is
held in position.
DOOR POCKET 3
(Machine equipped with cab)
This is inside the left and right doors. Use it for storing the
Operation and Maintenance Manual or other things.
Do not put heavy tools or other heavy objects in it.
If the pocket is dirty, turn 4 clips (1), then remove the pocket
and rinse it.
To Next Page
