OPERATION OPERATION
3-92
ADJUST AMOUNT OF TILT 3
ANGLEDOZER
WARNING
When adjusting the amount of tilt, it is dangerous if the work equipment is moved by mistake. Set the work
equipment in a safe condition, then stop the engine and lock the work equipment securely with the work
equipment lock lever.
NOTICE

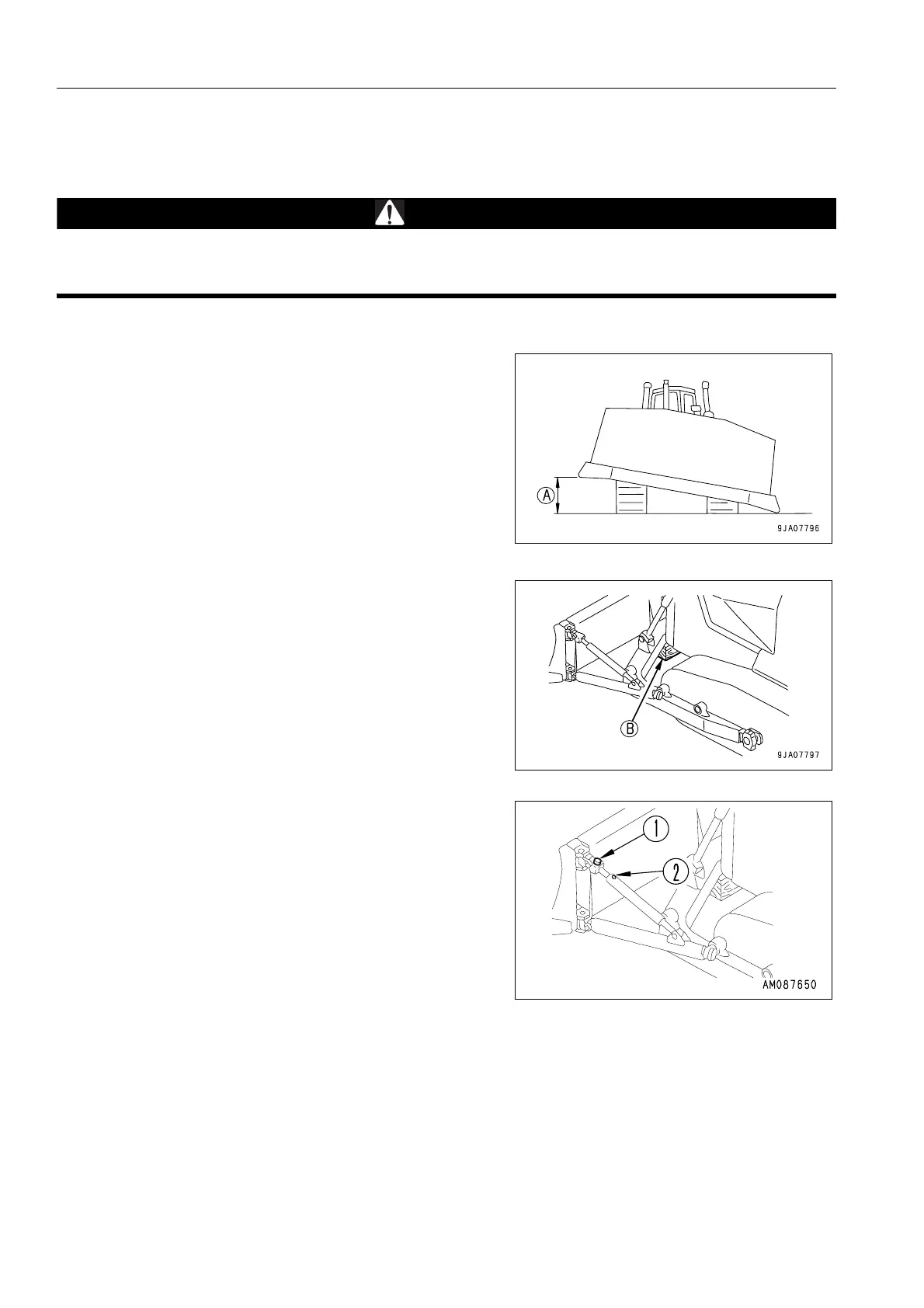

An amount of tilt (A) can be increased to a maximum of
400 mm.
Adjust an amount of tilt (A) within 400 mm.
1. Raise the blade up to the height of 400 mm to 500 mm
above the ground, and put block (B) beneath the blade
edge.
2. Loosen the bolt (1) of the brace, insert a suitable bar into
hole (2) of the brace, and turn it.
REMARK
When turning the brace with bar, keep the blade above the
ground.
Right tilt: Make right side shorter, left side longer
Left tilt: Make left side shorter, right side longer
3. Tighten set bolt (1).
To Next Page
