17 - 6

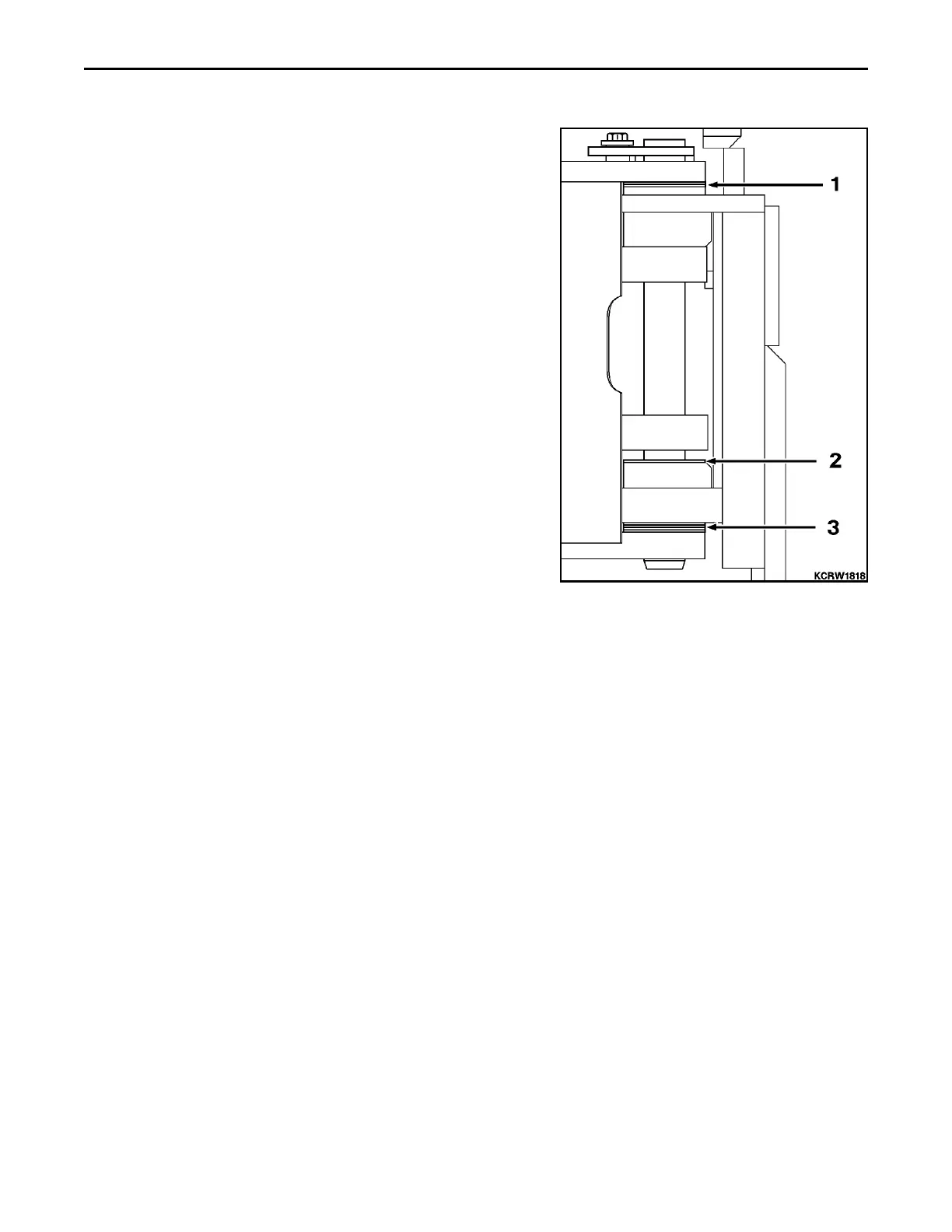

MOUNTED EQUIPMENT C FRAME PIN

PIN SHIMS

1. Shim gap between angling frame and C frame as required to

minimize gap to permit free movement without any binding. A

minimum of one shim to a maximum of two shims allowed.

2. Install one shim at this location.

3. Shim gap between angling frame and C frame as required to

minimize gap to permit free movement without any binding. A

minimum of four shims to a maximum of six shims allowed.
