6 - 5

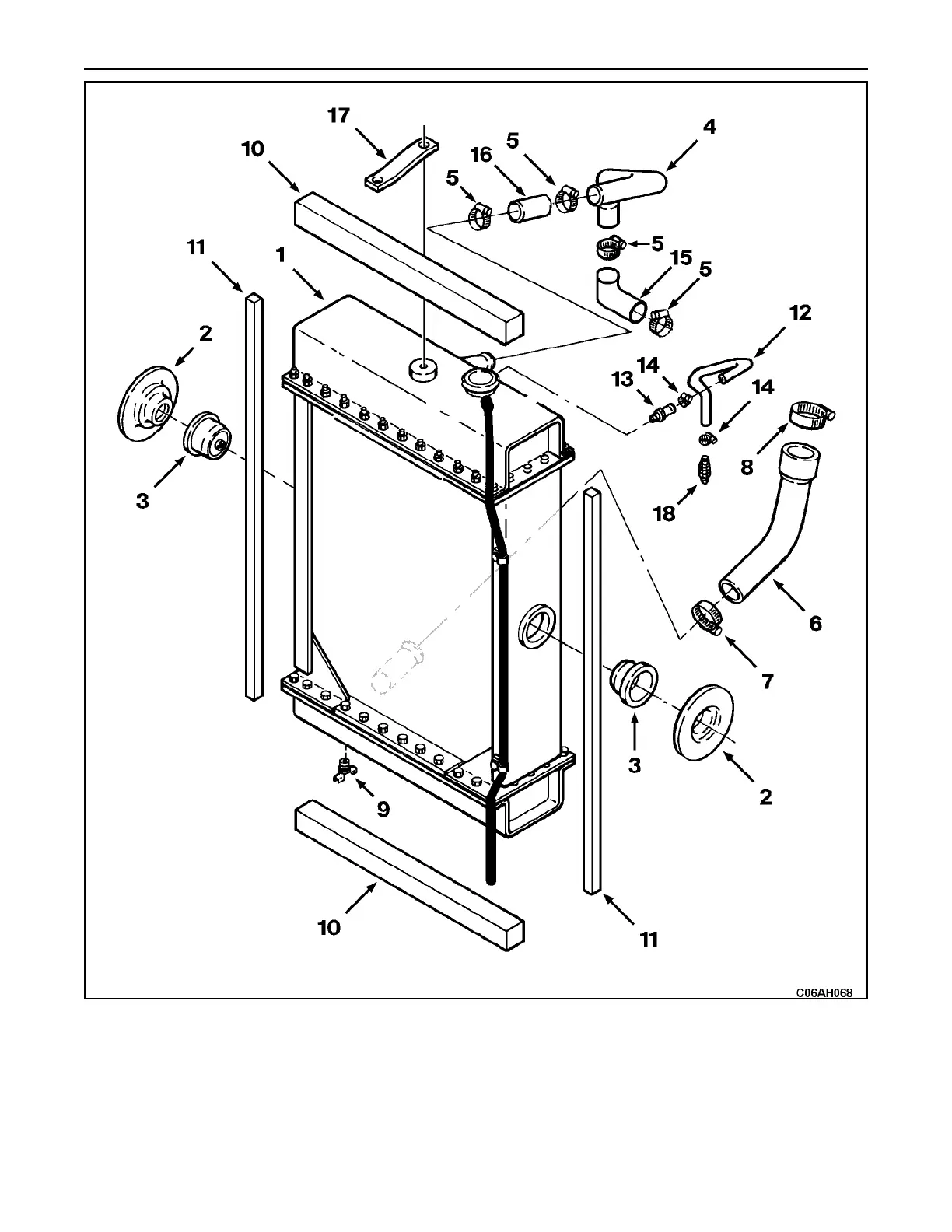

RADIATOR AND CONNECTIONS - D38E-1, D38P-1, D39E-1, D39P-1
COOLING
RADIATOR
1. Radiator
6. Inlet Hose
11. Side Seal
16. Vent Fitting
2. Mounting Bracket
7. Hose Clamp
12. Vent Hose
17. Hose
3. Rubber Insulator
8. Hose Clamp
13. Hose Fitting
18. Hose
4. Outlet Tube
9. Drain Cock
14. Hose Clamp
5. Hose Clamp
10. Top/Bottom Seal
15. Stabilizer Link
64
