12. OPERATION

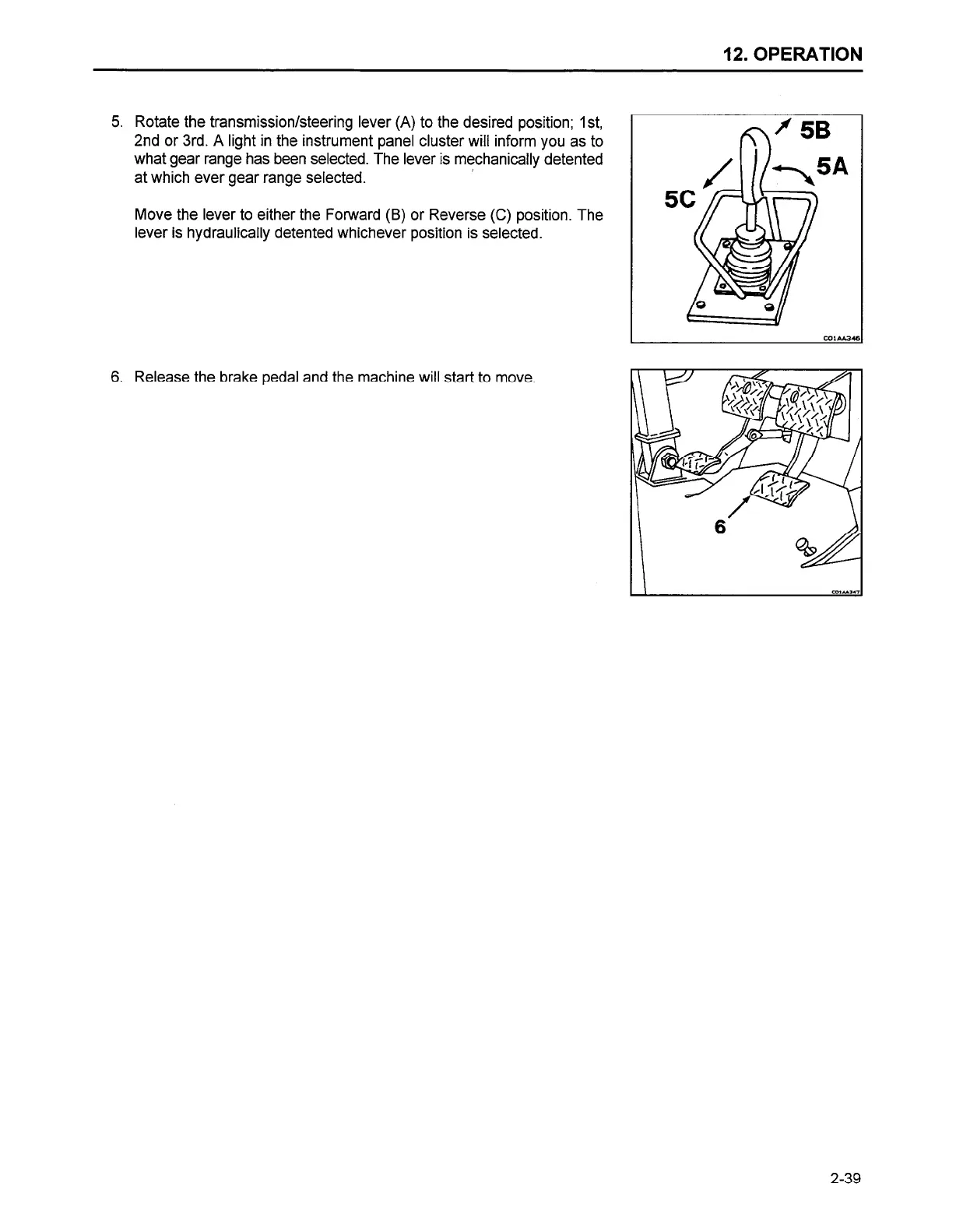

5. Rotate the transmission/steering lever (A) to the desired position; 1st
2nd or 3rd. A light in the instrument panel cluster will inform you as to
what gear range has been selected. The lever is mechanically detented
at which ever gear range selected.
Move the lever to either the Forward (B) or Reverse (C) position. The
lever is hydraulically detented whichever position is selected.
6. Release the brake pedal and the machine will start to move.
2-39
