11. EXPLANATION OF COMPONENTS

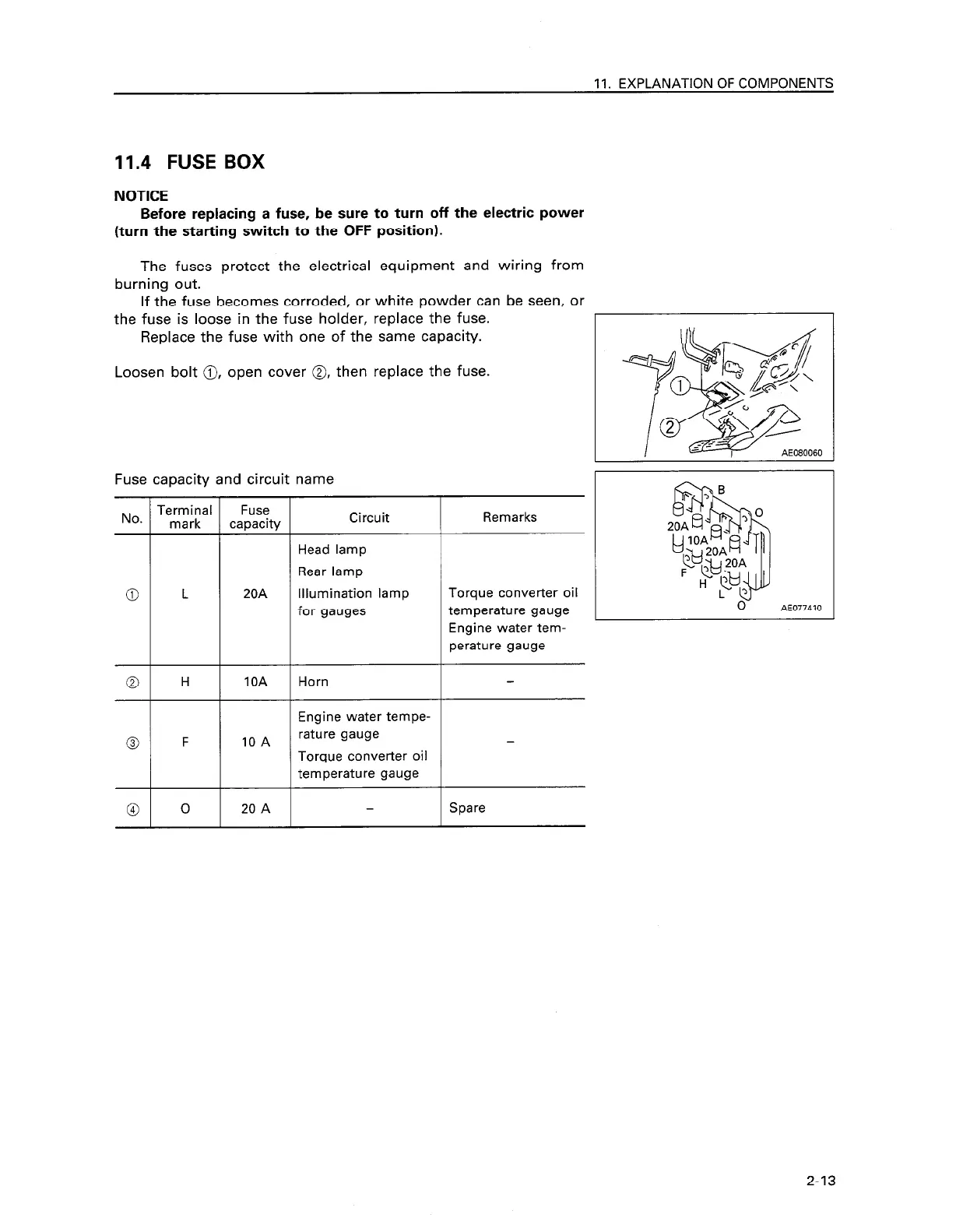

11.4 FUSE BOX
NOTICE
Before replacing a fuse, be sure to turn off the electric power
(turn the starting switch to the OFF position).
The fuses protect the electrical equipment and wiring from
burning out.
If the fuse becomes corroded, or white powder can be seen, or
the fuse is loose in the fuse holder, replace the fuse.
Replace the fuse with one of the same capacity.
Loosen bolt 0, open cover 0, then replace the fuse.
Fuse capacity and circuit name
No.
0
0
Terminal
mark
L
0
Fuse
capacity
20A
IOA
10 A
20 A
Circuit
Head lamp
Rear lamp
Illumination lamp
for gauges
Horn
Engine water tempe-
rature gauge
Torque converter oil
temperature gauge
Remarks
Torque converter oil
temperature gauge
Engine water tem-
perature gauge
-
Spare
0
AE077410
2-13
