Komatsu PC210-8 Shop Manual

UEN00661-00 50 Disassembly and assembly
12 PC210, 230, 240-8
a PC230-8, PC240LC-8, PC240NLC-8
Special tools

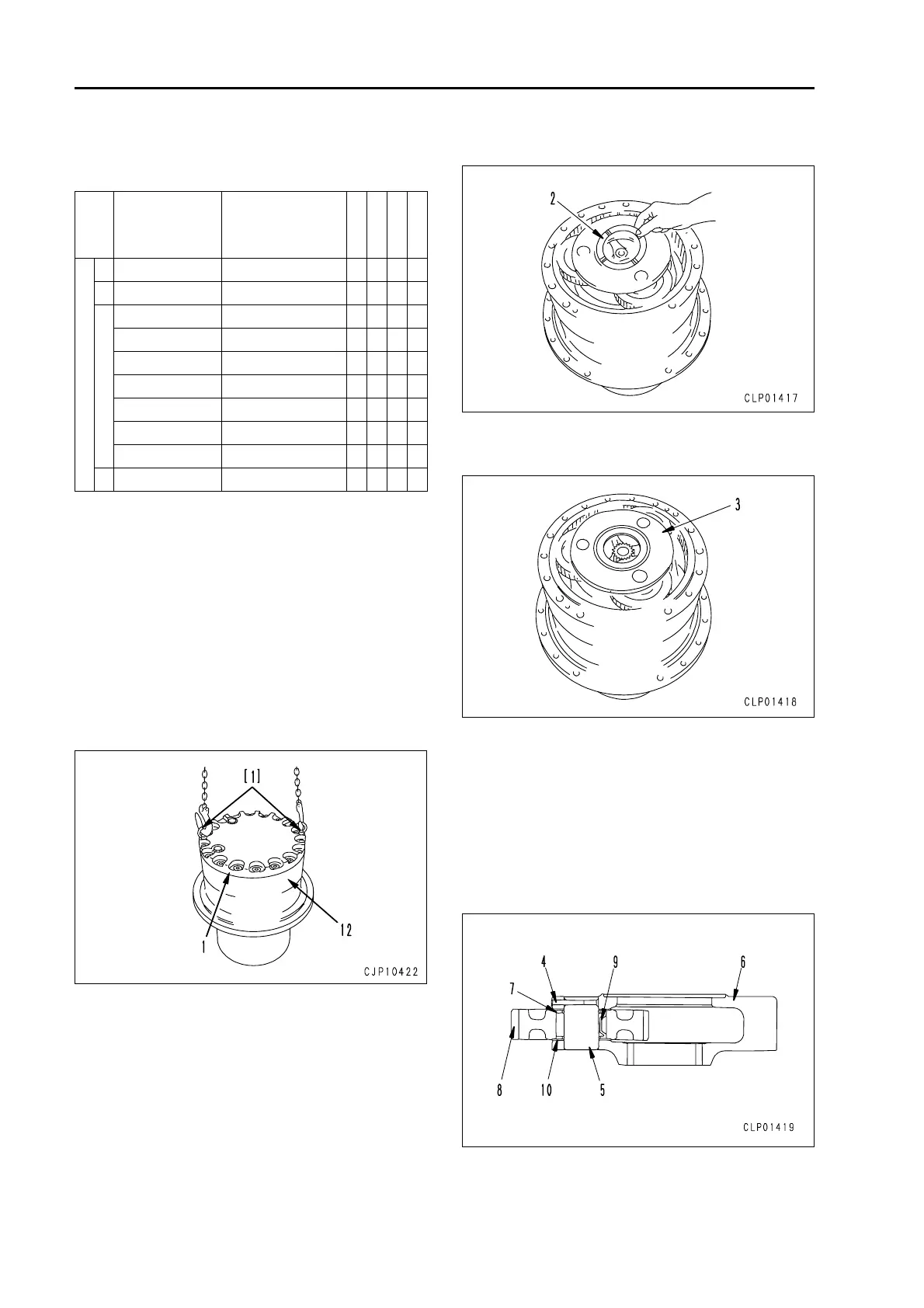

Disassembly
1. Oil drain
Remove drain plug to drain the oil from final
drive case.
6 Final drive case: 5.4l
2. Cover
Remove 20 mounting bolts and hoist cover (1)
using an eyebolt [1] to remove it.
a When ring gear (12) is lifted together, sep-
arate the ring gear by lightly tapping it with
a plastic hammer.
3. Washer
Remove washer (2).
4. No.1 carrier assembly
1) Remove No. 1 carrier assembly (3).
2) Disassemble No. 1 carrier assembly in the
following procedure.
1] Drive pin (4) into pin (5) to remove pin
(5) from carrier (6).
a Remove pin (4) from pin (5) after
pin (5) is removed.
2] Remove thrust washer (7), No. 1
planetary gear (8), needle bearing (9)
and thrust washer (10).
Symbol
Part number Part name
Necessity Q’ty N/R Sketch
J
4 796-427-1200 Wrench t 1
5 791-545-1510 Installer t 1
6
796T-427-1220 Push tool t 1 Q
790-101-2510 Block t 1
792-104-3940 Bolt t 2
05180-11610 Nut t 2
01613-31645 Washer t 2
790-105-2100 Jack t 1
790-101-1102 Hydraulic pump t 1
7 790-331-1110 Wrench t 1
