4-8
PC210/240-ENG
PC240-6K, PC240LC-6K, PC240NLC-6K

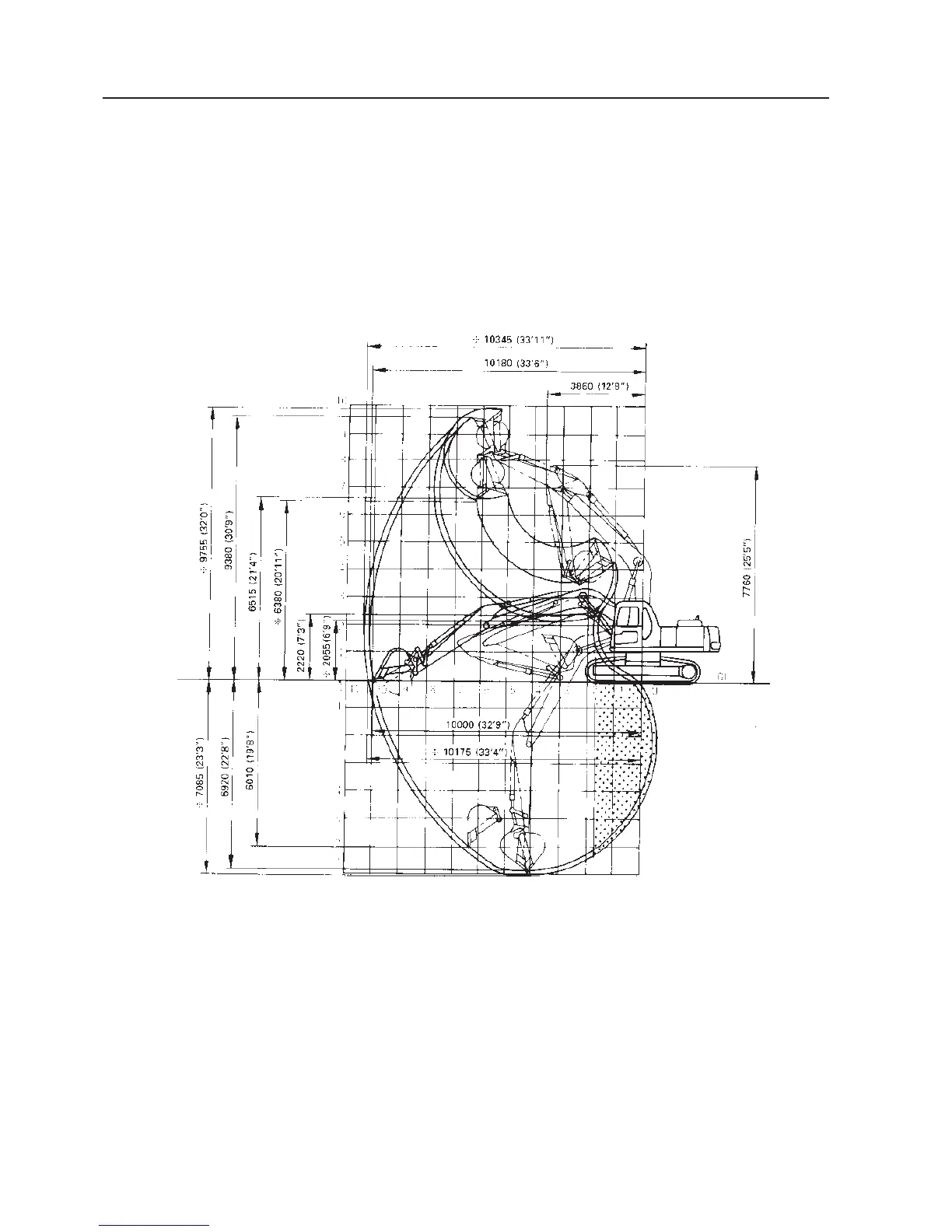

1 The mark * indicates the dimensions for the shovel operation.
2. Never allow other persons than the operator to enter the swing range. (Max. swing range,
Max. digging radius).
25. SPECIFICATIONS
