5-7
PC210/240-ENG
28.2 HYDRAULIC CIRCUIT
Change-over hydraulic circuit
Contact dealer to set left hand boom piping relief pressure.
When using the breaker and the general attachment (Crusher etc.),

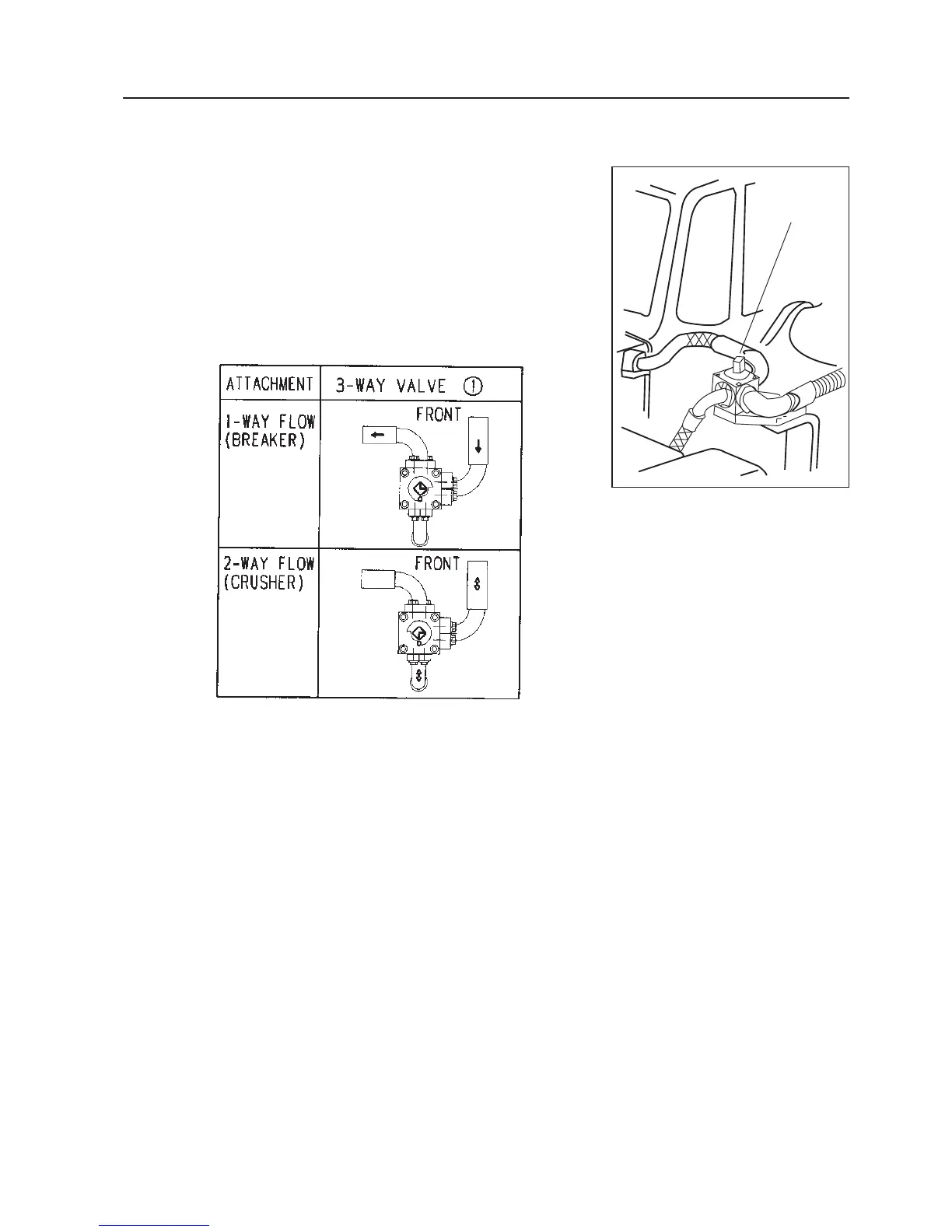

turn the rotor of the 3 way valve a to change over according to the follow-
ing illustration.
(The marks indicating the port direction are stamped on the 3-way
valve).
NOTICE
Perform work only after the engine is stopped and the work equip-
ment and machine body are in a stable posture on the ground.
28. MACHINES READY FOR ATTACHMENTS
