5-5
PC210/240-ENG

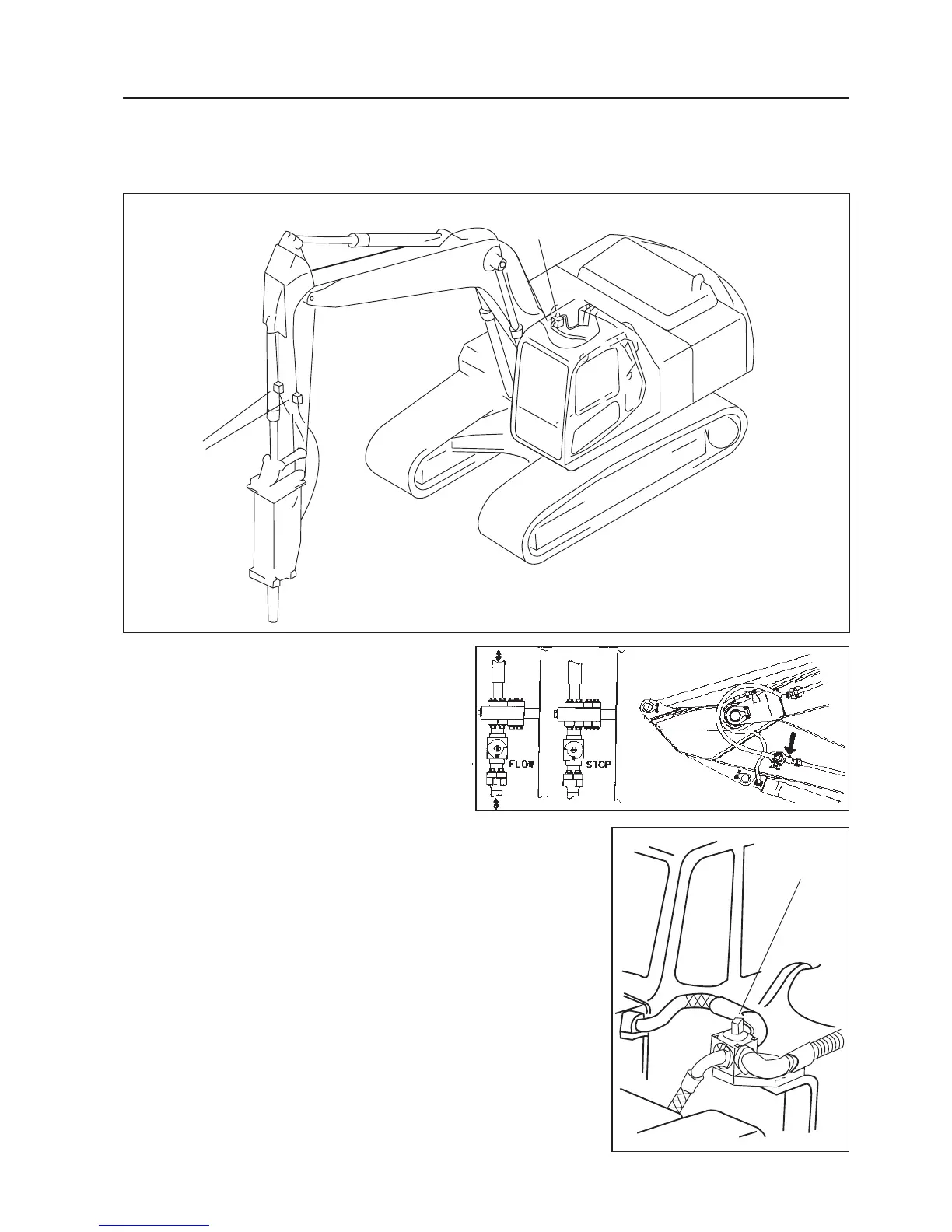

28.1 EXPLANATION OF COMPONENTS
1. STOP VALVE
This valve stops the flow of the hydraulic oil.
A FLOW : Hydraulic oil flows.
B STOP : Hydraulic oil stops.
Set this valve to the STOP position when remov-
ing or installing attachments.
2. SELECTOR VALVE
This switches the flow of the hydraulic oil.
For attachments to be mounted and the direction of the 3-way valve
C, see 28.2 ”HYDRAULIC CIRCUIT”.
28. MACHINES READY FOR ATTACHMENTS
y
x
A
B
C
