12.1.3 ADJUSTMENT BEFORE OPERATION

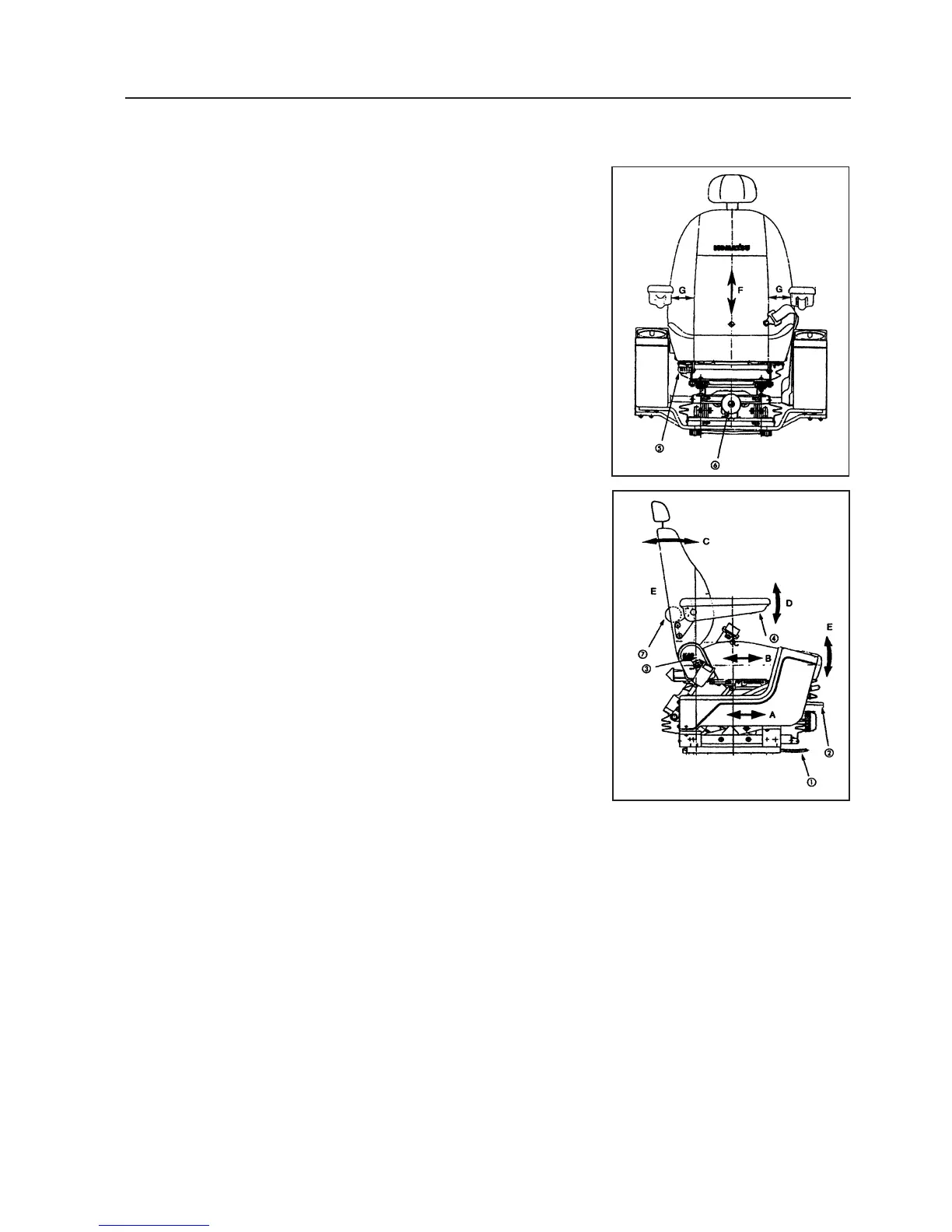

OPERATOR’S SEAT
(A) Fore-and-aft adjustment of seat
Pull lever y up. After the seat is set to the desired position, release
the lever.
NOTE: This operation will not affect relative position of seat and
wrist control levers.
(B) Fore-and-aft adjustment of seat
Pull lever b up. After the seat is set to the desired position, release
the lever.
NOTE: This operation will affect relative position of seat and
wrist control levers.
(C) Adjustment of seat tilting angle
Pull lever c up. After the seat back is set to the optimum position for
easy operation, release the lever.
