Konami Concerto Upright - P;N 310644 Assy, Main Deck and Frame

SECTION 3 - PARTS, ASSEMBLIES & HARDWARE
1-3-17
3-17
© 2018 Konami Gaming Inc. P/N 810237
CONCERTO UPRIGHT
(Original Instructions)

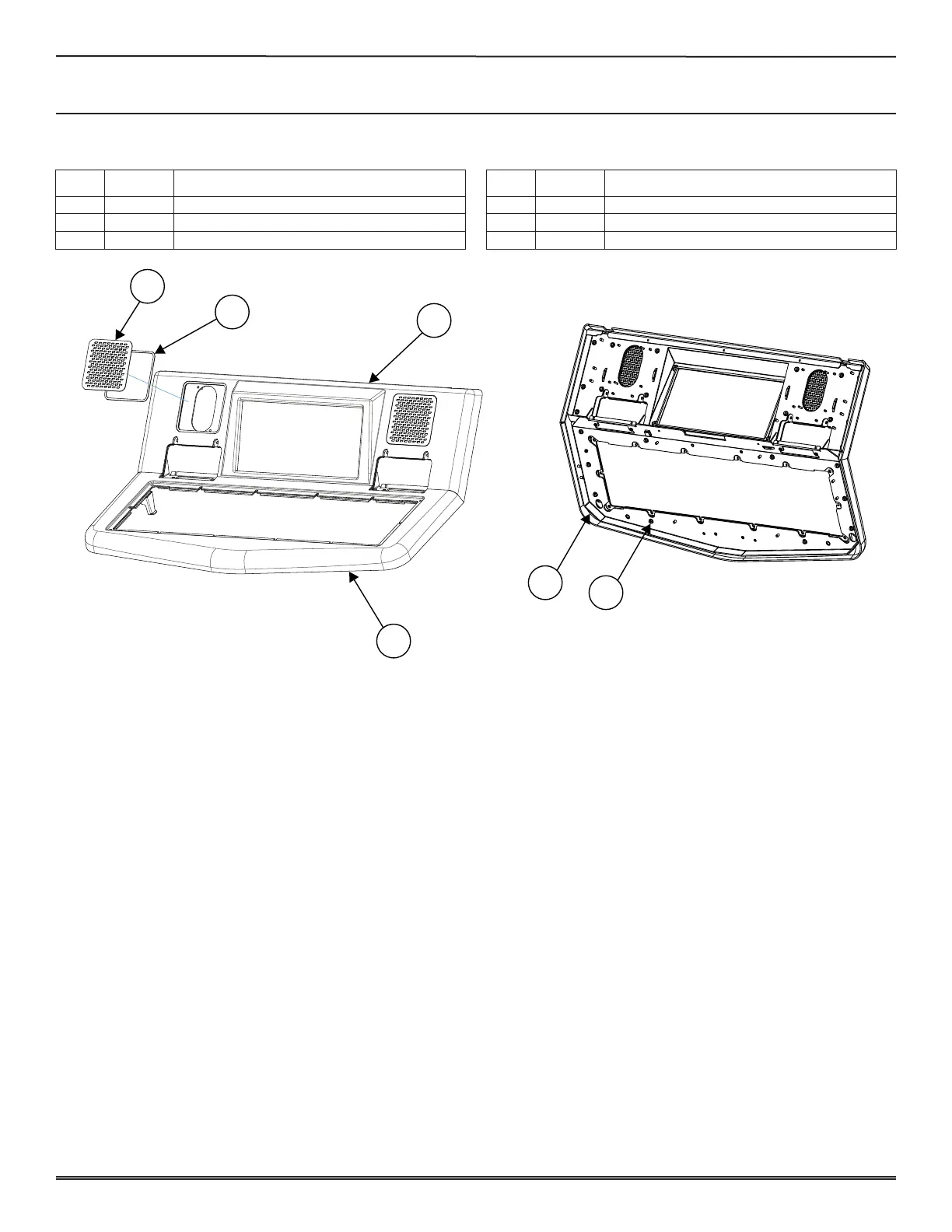

P/n 310644 assy, Main deck and FraMe
2
4
6
5
1
3
ITEM PART # DESCRIPTION
1. 130969 ASSY, FRAME, DECK
2. 192731 GRILLE, SPEAKER (2)
3. 450428 SCREW, TPG, HEX WSHR HD, 8-32 X .250 (25)
ITEM PART # DESCRIPTION
4. 470077 SEAL, GRILLE, SPEAKER (2)
5. 610090 DECK, CAST, LWR, MAIN
6. 610091 DECK, CAST, UPR, MAIN
