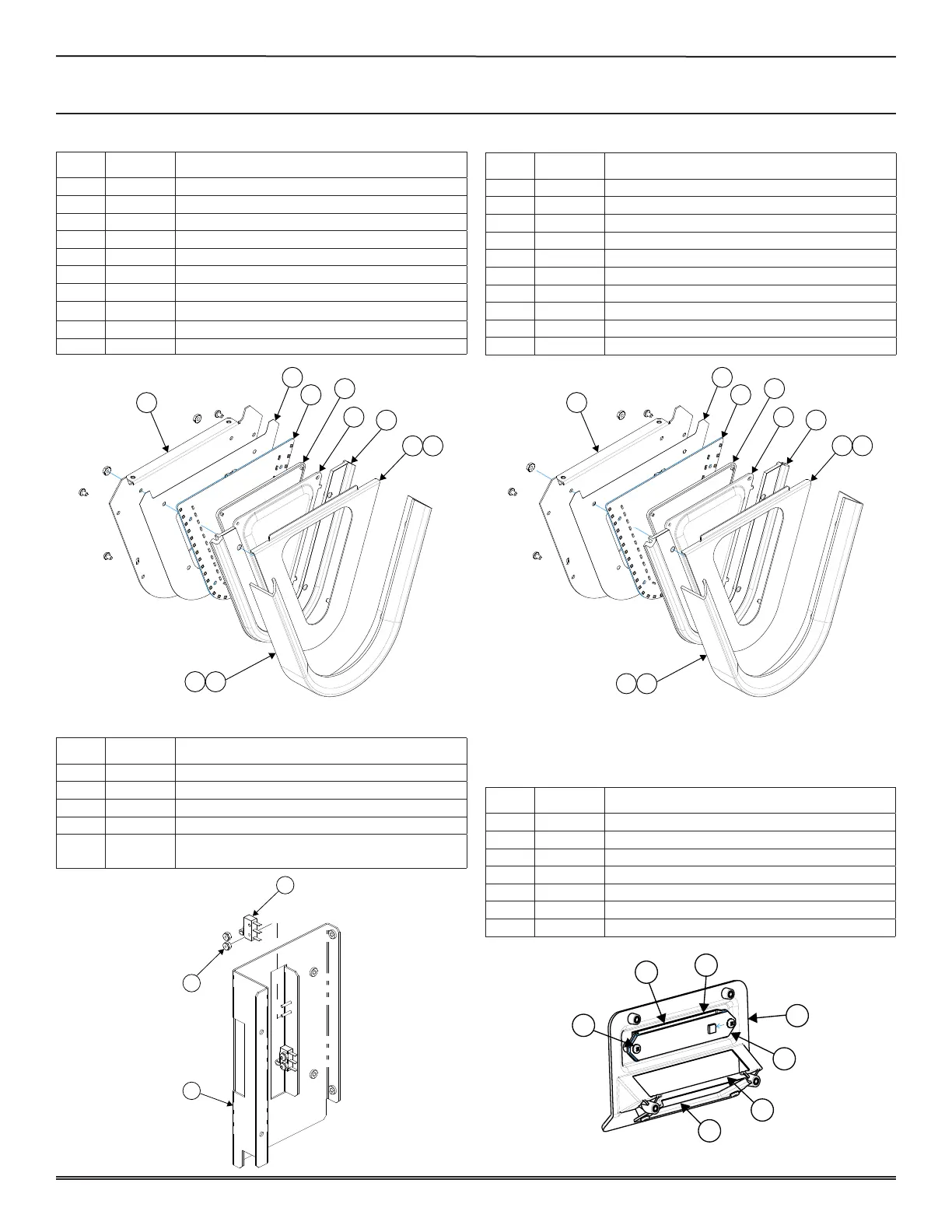

SECTION 3 - PARTS, ASSEMBLIES & HARDWARE
1-3-24
3-24
© 2018 Konami Gaming Inc. P/N 810237
CONCERTO UPRIGHT
(Original Instructions)
P/n 331328 assy, sW, JcM casHbox
2
3
1
ITEM PART # DESCRIPTION
- 110055 HRNS, BILL VALIDATOR SW 1, JCM
- 110056 HRNS, BILL VALIDATOR SW 2, JCM
1. 192921 BRKT, SW, CASH BOX
2. 450144 NUT, NYLOK, 2-56 (4)
3. 490046
SWITCH, OMRON, SBMIN, W/ROLLER
ACTUATOR (2)
P/n 331268 assy, elP, rH elboW
ITEM PART # DESCRIPTION
1. 192686 TRIM, INSIDE, ELP
2. 192687 PLT, MTG, ELP
3. 310608 ASSY, DIFF, RH ELBOW
4. 410600 PNL, CVR, ELBOW
5. 410645 INSUL, PCB, ELBOW
6. 410654 PNL, STP, ELBOW
7. 410741 TRIM, ELP, ELBOW, RH
8. 450016 NUT, HEX KEP, 8-32 (4)
9. 450115 SCREW, SEMS, PH PHIL, 8-32 X 1/4 (4)
10. 530588 PCB, PODIUM2, LED, PDM2-ELBOW
2
5
6
9
4
3
1
7
10
8
P/n 331269 assy, elP, lH elboW
2
5
6
9
4
3
1
7
10
8
ITEM PART # DESCRIPTION
1. 192686 TRIM, INSIDE, ELP
2. 192687 PLT, MTG, ELP
3. 310609 ASSY, DIFF, LH ELBOW
4. 410600 PNL, CVR, ELBOW
5. 410645 INSUL, PCB, ELBOW
6. 410654 PNL, STP, ELBOW
7. 410742 TRIM, ELP, ELBOW, LH
8. 450016 NUT, HEX KEP, 8-32 (4)
9. 450115 SCREW, SEMS, PH PHIL, 8-32 X 1/4 (4)
10. 530588 PCB, PODIUM2, LED, PDM2-ELBOW
P/n 331279 assy, bZl, bv/Ptr
6
4
2
1
7
3
5
ITEM PART # DESCRIPTION
1. 410615 BZL, BV/PTR
2. 410616 WINDOW, UPR
3. 410617 WINDOW, LWR
4. 410643 DECAL, UPR, BZL, BV/PTR
5. 410644 DECAL, LWR, BZL, BV/PTR
6. 450107 SCREW, SEMS, PH PHIL, 4-40 X 1/4 (4)
7. 530612 PCB, LIGHTING
